Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

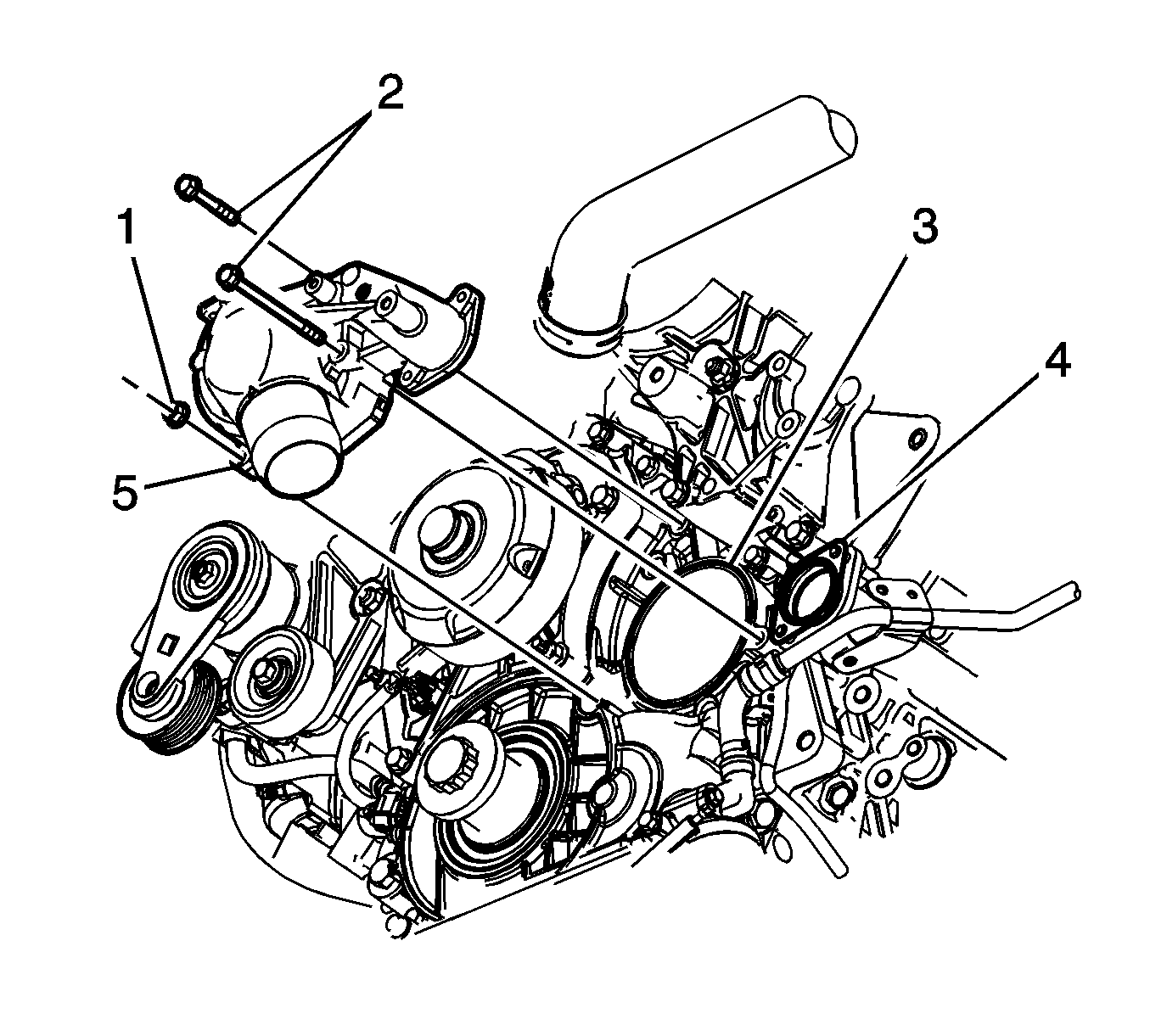

Fig 1: Water Pump Outlet Pipe Gasket, Water Pump, O-Ring, Nut And Bolts
GM2338140Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the water pump O-ring (3) with engine oil
  2. Install the engine coolant pipe gasket and water pump O-ring.
  3. Install the water pump nut (1) and bolts (2). Ensure the correct length bolt is used in the proper location and tighten to 25 N.m (18 lb ft)
    NOTE: Refer to Fastener Notice.

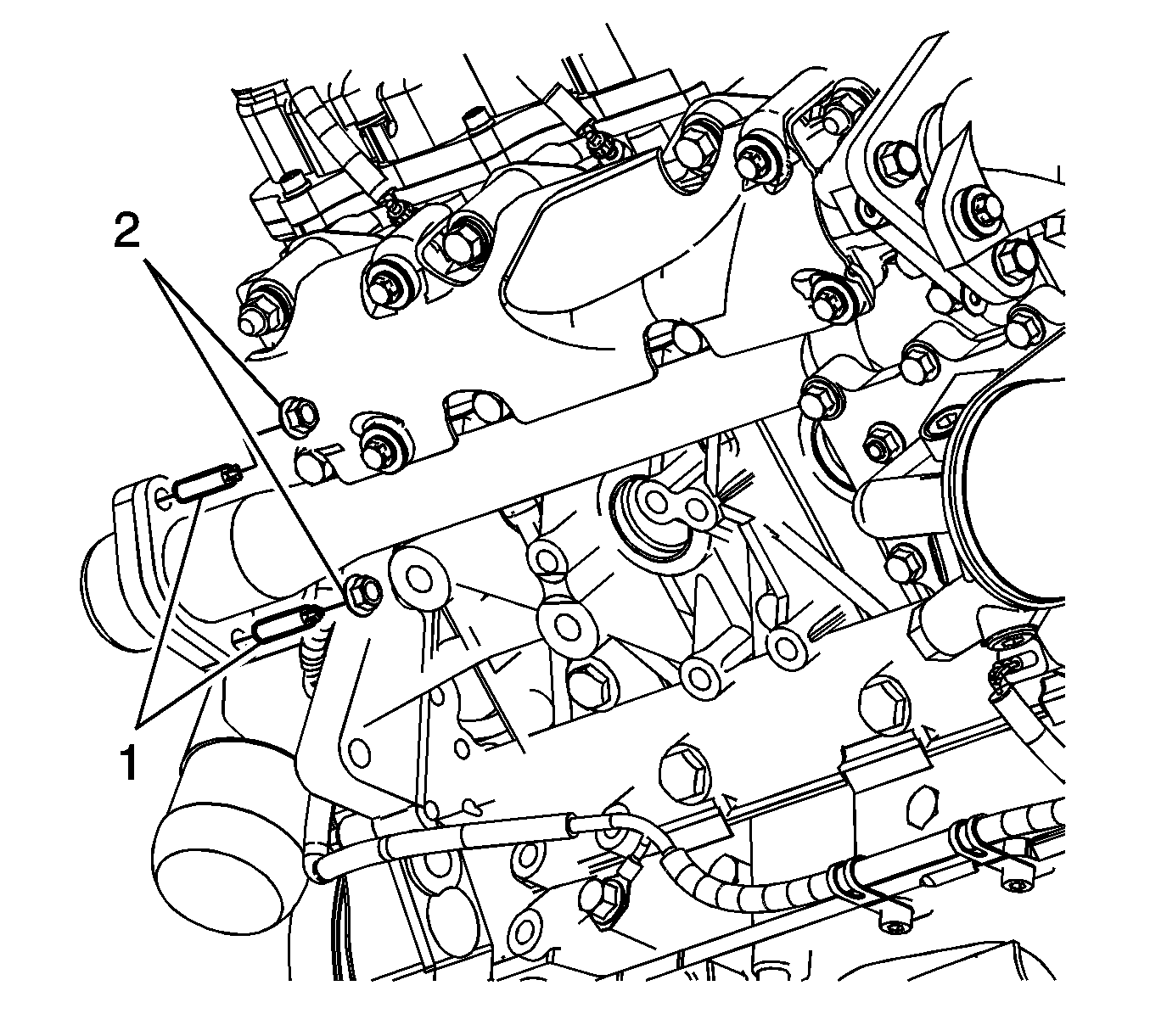

    4. Fig 2: Identifying Water Pump Outlet Pipe Nuts & Studs
    GM1729415Courtesy of GENERAL MOTORS CORP.
  4. Install the engine wiring harness retainer on the water pump outlet pipe inner stud.
  5. Install the water pump to water pump outlet pipe nuts (2) to the studs (1) and tighten to 25 N.m (18 lb ft)
  6. Install the crankshaft balancer. Refer to CRANKSHAFT BALANCER REPLACEMENT .
  7. Install the thermostat bypass pipe. Refer to Thermostat Bypass Pipe Replacement Diesel.
  8. Install the radiator outlet hose. Refer to Radiator Outlet Hose Replacement (Non-HP2) .
  9. Install the left wheelhouse inner panel. Refer to FRONT WHEELHOUSE LINER REPLACEMENT - LEFT SIDE (CHEVROLET) or FRONT WHEELHOUSE LINER REPLACEMENT - LEFT SIDE (GMC) .
