Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: DO NOT use cooling system seal tabs, or similar compounds, unless otherwise instructed. The use of cooling system seal tabs, or similar compounds, may restrict coolant flow through the passages of the cooling system or the engine components. Restricted coolant flow may cause engine overheating and/or damage to the cooling system or the engine components/assembly.
NOTE: All gaskets surfaces are to be free of oil or other foreign material during assembly.

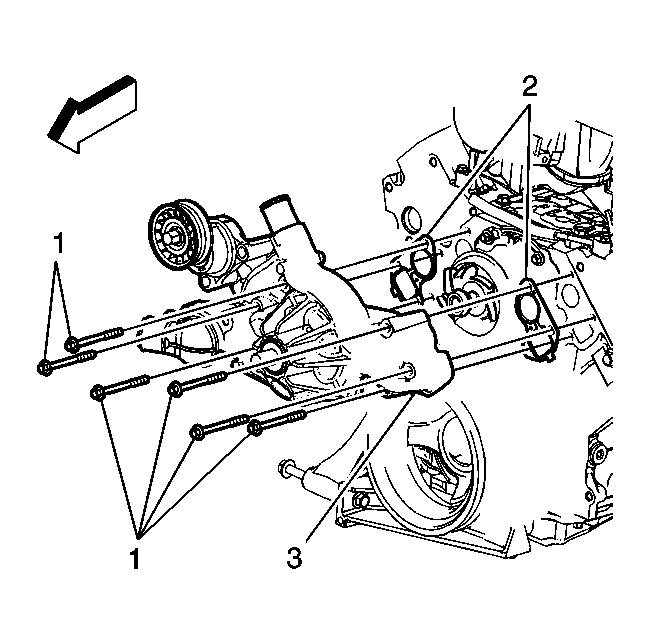

    Fig 1: View Of Water Pump Bolts
    GM2242393Courtesy of GENERAL MOTORS CORP.
  1. Position the water pump (3) and NEW gaskets (2) to the engine block.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the water pump bolts (1).

    Tighten:

    1. Tighten the bolts a first pass to 15 N.m (11 lb ft).
    2. Tighten the bolts a final pass to 30 N.m (22 lb ft).

    3. Fig 2: View Of Heater Inlet Hose, Clamp & Waterpump
    GM1697282Courtesy of GENERAL MOTORS CORP.
  3. Position and install the heater inlet hose (2) to the water pump.
  4. Position the heater inlet hose clamp (1) at the water pump.
    5. Fig 3: View Of Radiator Surge Tank Outlet Hose, Clamp & Water Pump
    GM1697283Courtesy of GENERAL MOTORS CORP.
  5. Position and install the radiator surge tank outlet hose (2) to the water pump.
  6. Position the radiator surge tank outlet hose clamp (1) at the water pump.
    7. Fig 4: View Of Radiator Outlet Hose
    GM1699336Courtesy of GENERAL MOTORS CORP.
  7. Position and install the radiator outlet hose to the water pump.
  8. Position the radiator outlet hose clamp at the water pump.
  9. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
    10. Fig 5: View Of Radiator Vent Inlet Hose Clamp At Water Pump
    GM1696566Courtesy of GENERAL MOTORS CORP.
  10. Position the radiator inlet hose and vent inlet hose to the correct position.
  11. Install the radiator inlet hose to the water pump.
  12. Position the radiator inlet hose clamp (3) at the water pump.
    13. Fig 6: View Of Radiator Vent Inlet Hose & Clamps
    GM1699347Courtesy of GENERAL MOTORS CORP.
  13. Install the radiator vent inlet hose (2) to the coolant air bleed pipe fitting.
  14. Position the radiator vent inlet hose clamp (1) at the coolant air bleed pipe fitting.
  15. Fill the cooling system. Refer to Cooling System Draining and Filling (Vac-N-Fill)  or Cooling System Draining and Filling (Static Fill) .
  16. Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
