Engine Coolant Fan Replacement (LAT)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

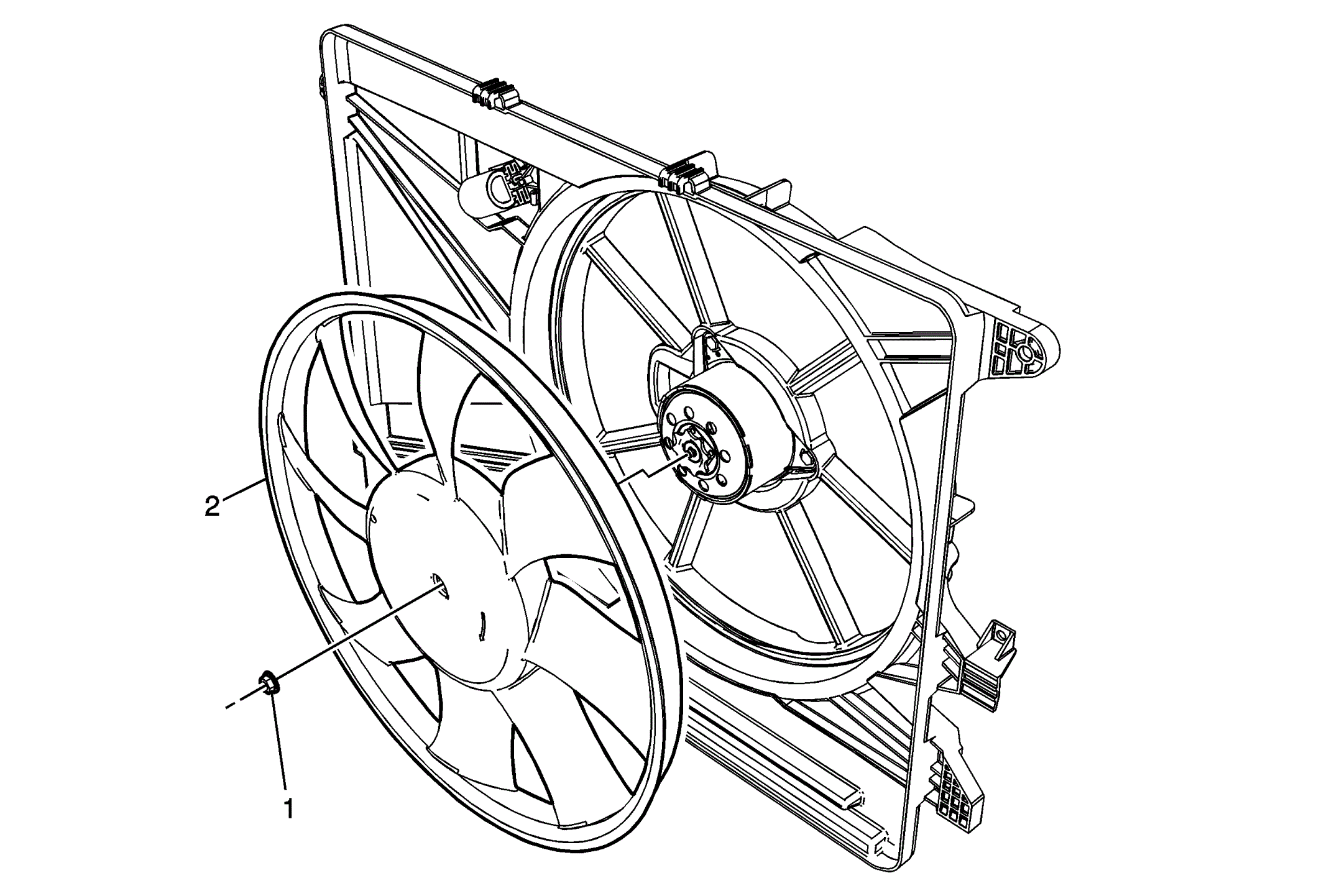

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement (LAT) . |
|
| 1 | Cooling Fan Nut
CAUTION:
Refer to Fastener Caution
.
Tighten: 8 N.m (71 lb in) |
| 2 | Cooling Fan |
