Zone 7

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off and remove key.
  2. Remove AIR BAG fuse from fuse block, located under vehicle hood. Remove Connector Position Assurance (CPA) clip from driver-side air bag module connector. See Figure. Disconnect connector.

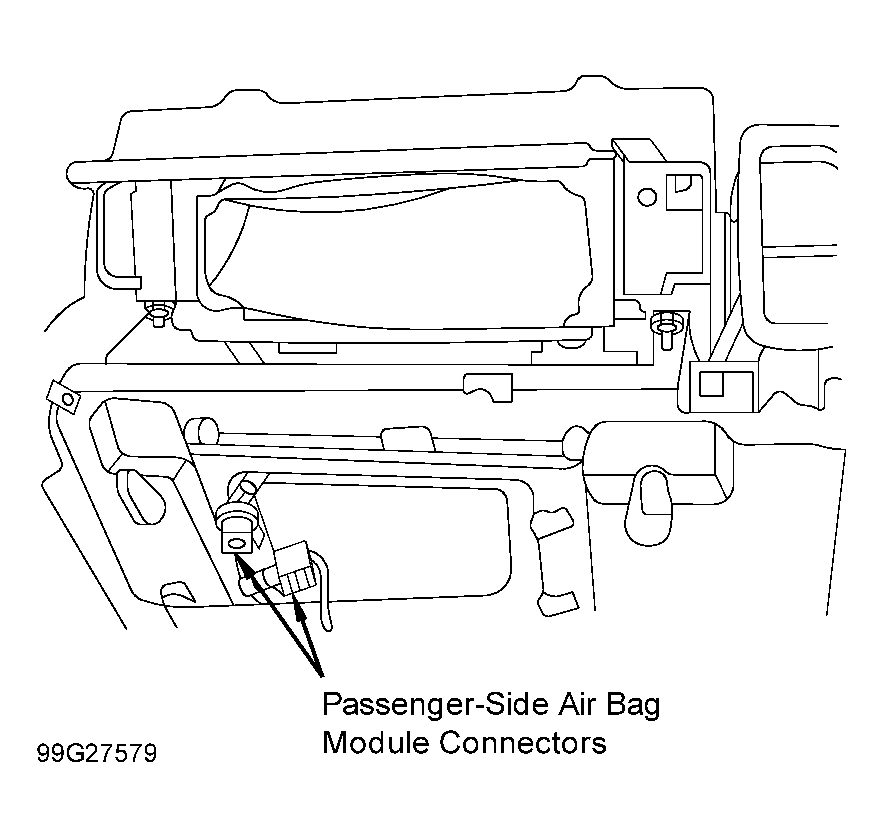

  3. Remove passenger-side knee bolster bracket. Remove CPA clip from passenger-side air bag module connector. See Figure. Disconnect passenger-side air bag module connector.
  4. Remove CPA clip from passenger-side seat belt pretensioner connector. See Fig 1. Disconnect connector. Remove CPA clip from driver-side seat belt pretensioner connector. Disconnect driver-side seat belt pretensioner connector.

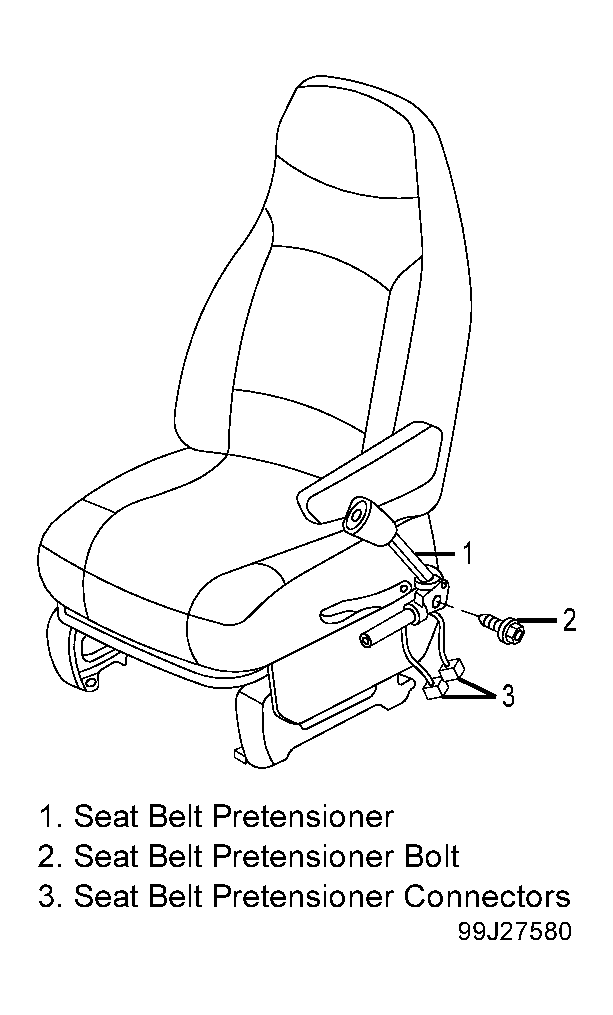

Fig 1: Identifying Seat Belt Pretensioner (Passenger-side Shown; Driver-side Is Similar
G99J27580Courtesy of GENERAL MOTORS CORP.
