Component Locations

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix, 2003 Buick Regal, and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To locate and identify axle shaft components, see Fig 1 .

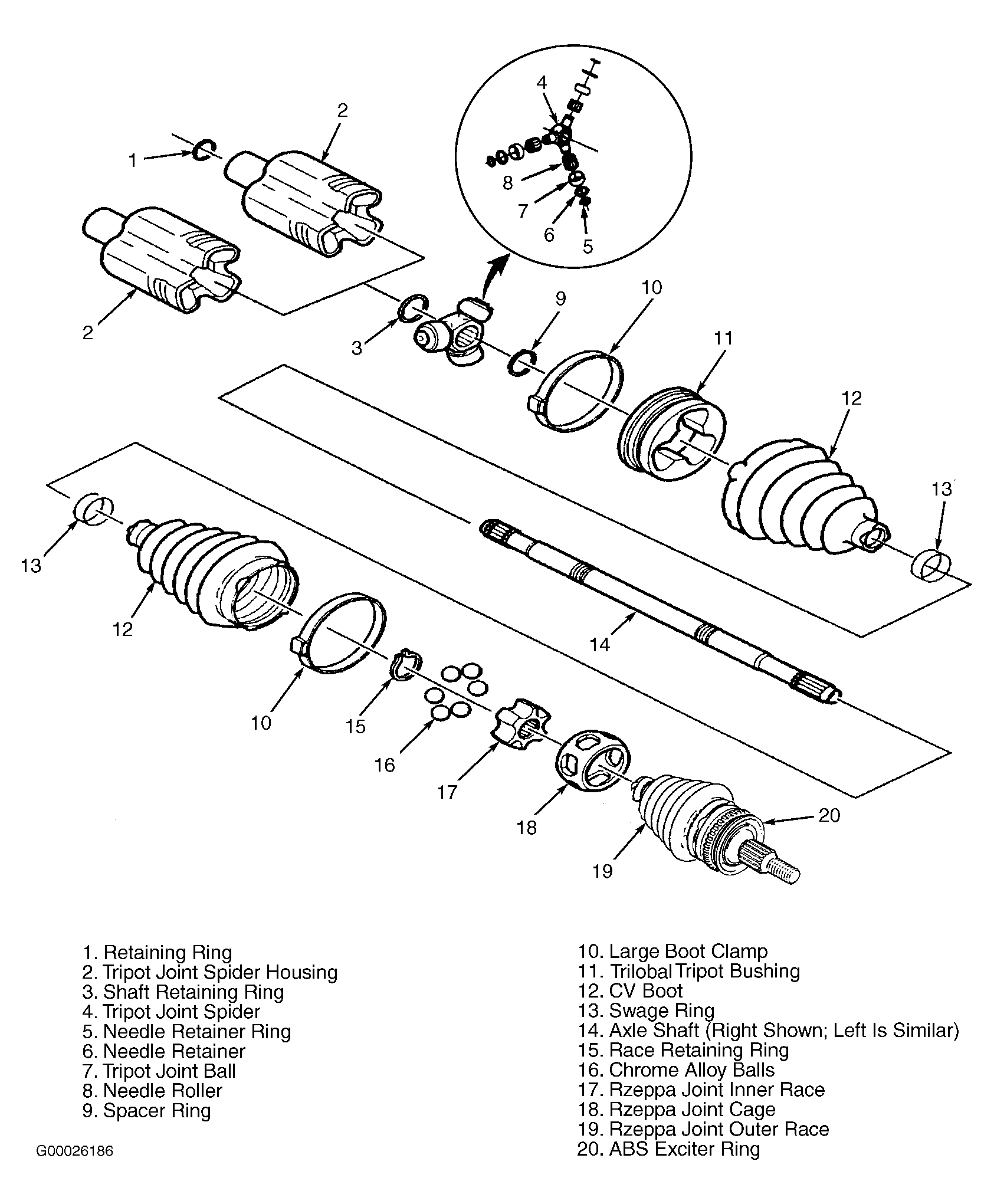

Fig 1: Exploded View Of FWD Axle (Tripot/Free-Motion & Rzeppa Type CV Joints)

Courtesy of GENERAL MOTORS CORP.
