Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

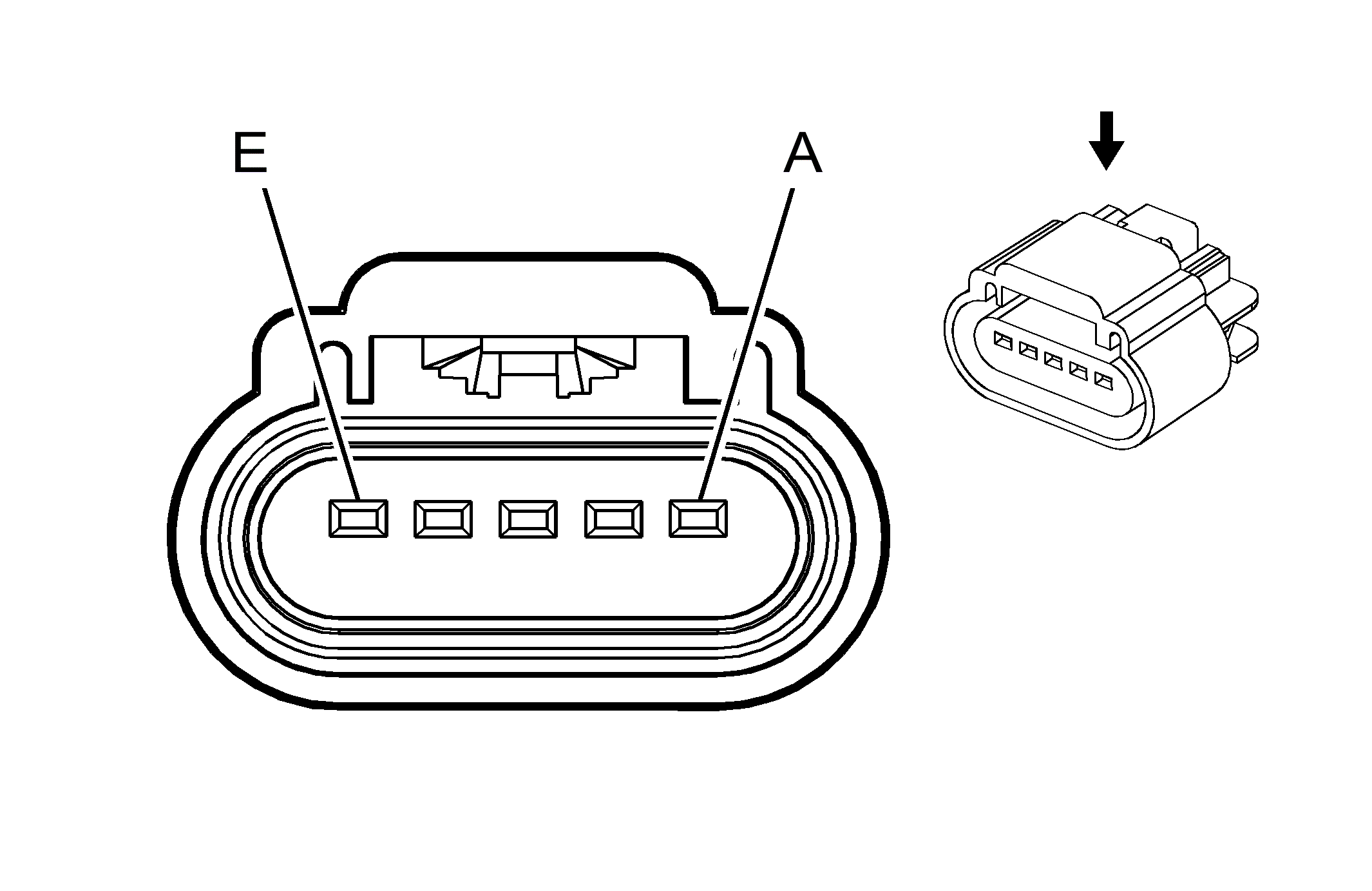

Fig 1: Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	0.5 TN	2760	Low Reference
B	0.5 TN/BK	472	Intake Air Temperature (IAT) Sensor Signal
C	0.5 YE	492	Mass Air Flow (MAF) Sensor Signal
D	0.5 PK	1839	Ignition Voltage
E	0.5 BK/WH	451	Ground

Connector Part Information

Harness Type: Engine
OEM Connector: 13519912
Service Connector: 13501881
Description: 5-Way F GT 150 Series, Sealed (D-GY)

Terminal Part Information

Terminated Lead: 13575413
Release Tool: J-38125-553
Diagnostic Test Probe: J-35616-2A (GY)
Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/1
