Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle.
- Support the rear axle with a safety stand.

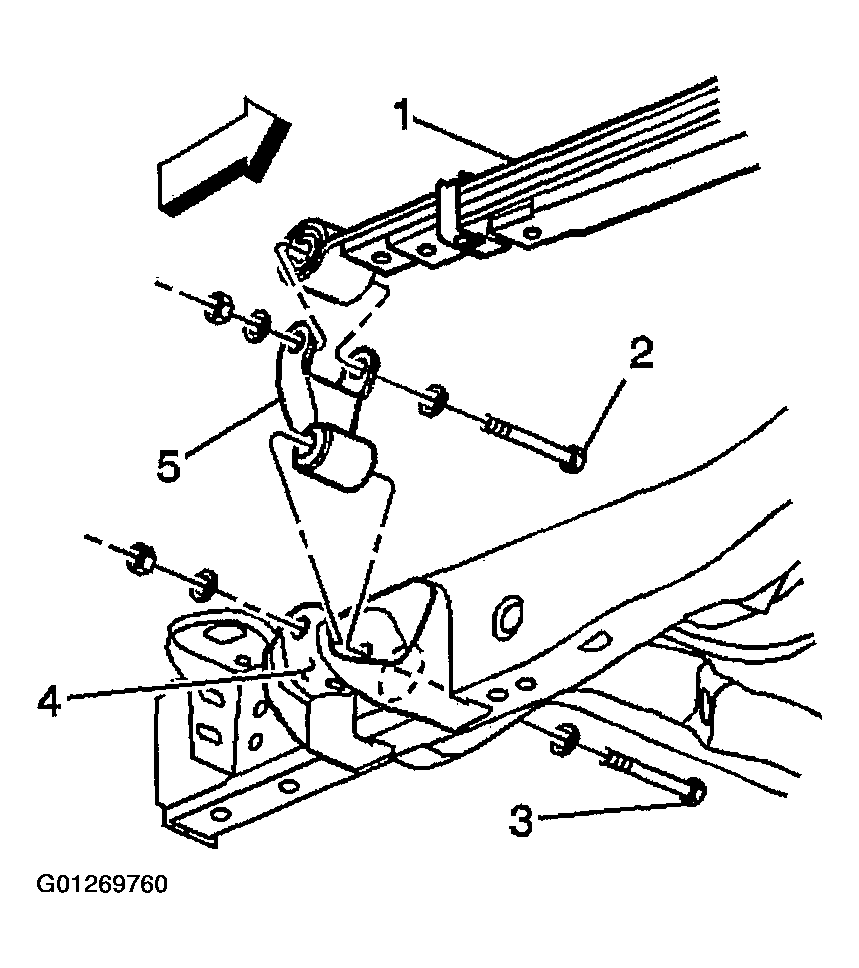

- Remove the spring shackle (5) to the leaf spring (1) mounting nut and bolt (2).
- Remove the spring shackle (5) to the frame bracket (4) mounting nut and bolt (3).
- Remove the spring shackle.
