HVAC Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

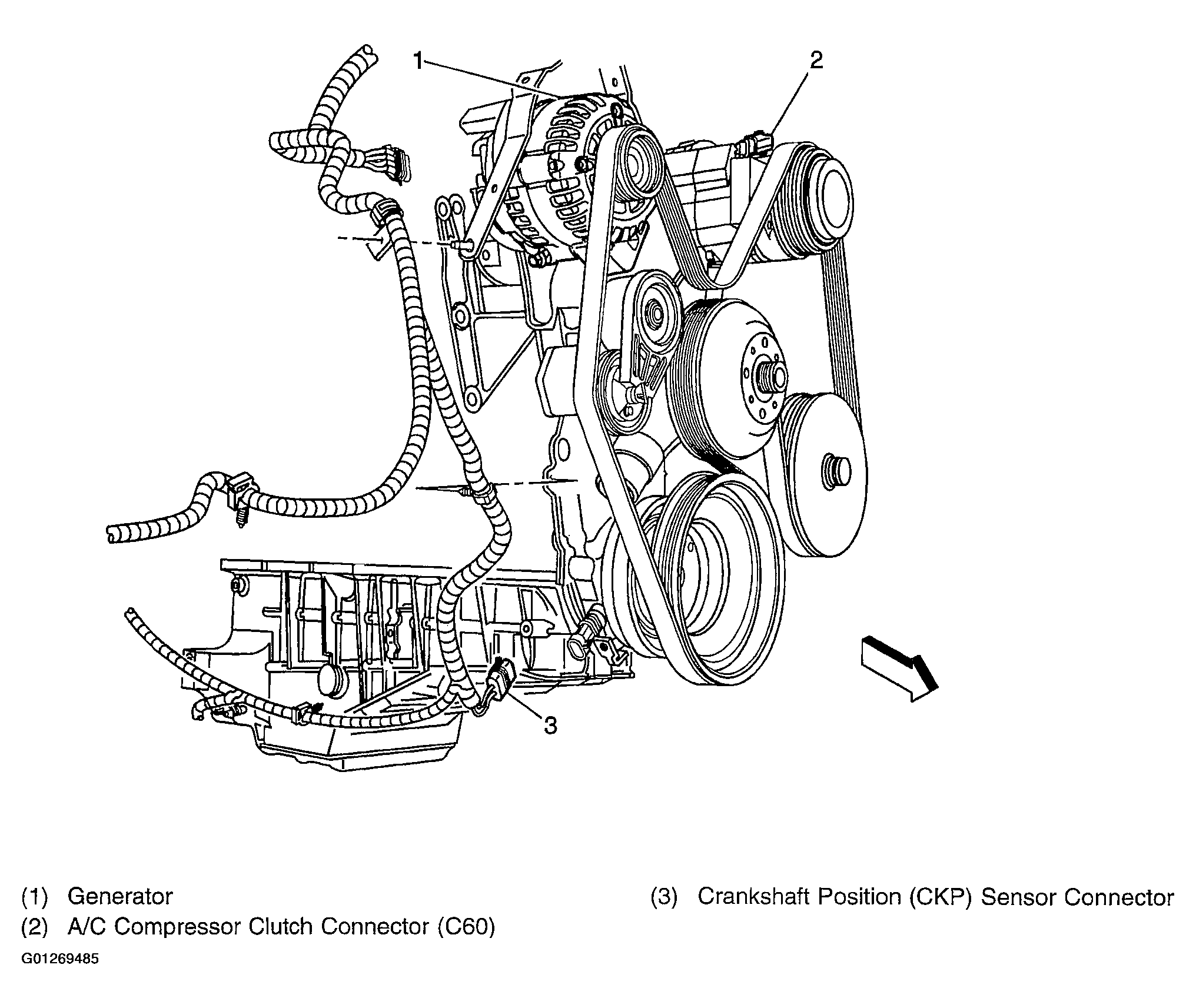

Fig 1: Front of the Engine (4.3L)

G01269485

Courtesy of GENERAL MOTORS CORP.

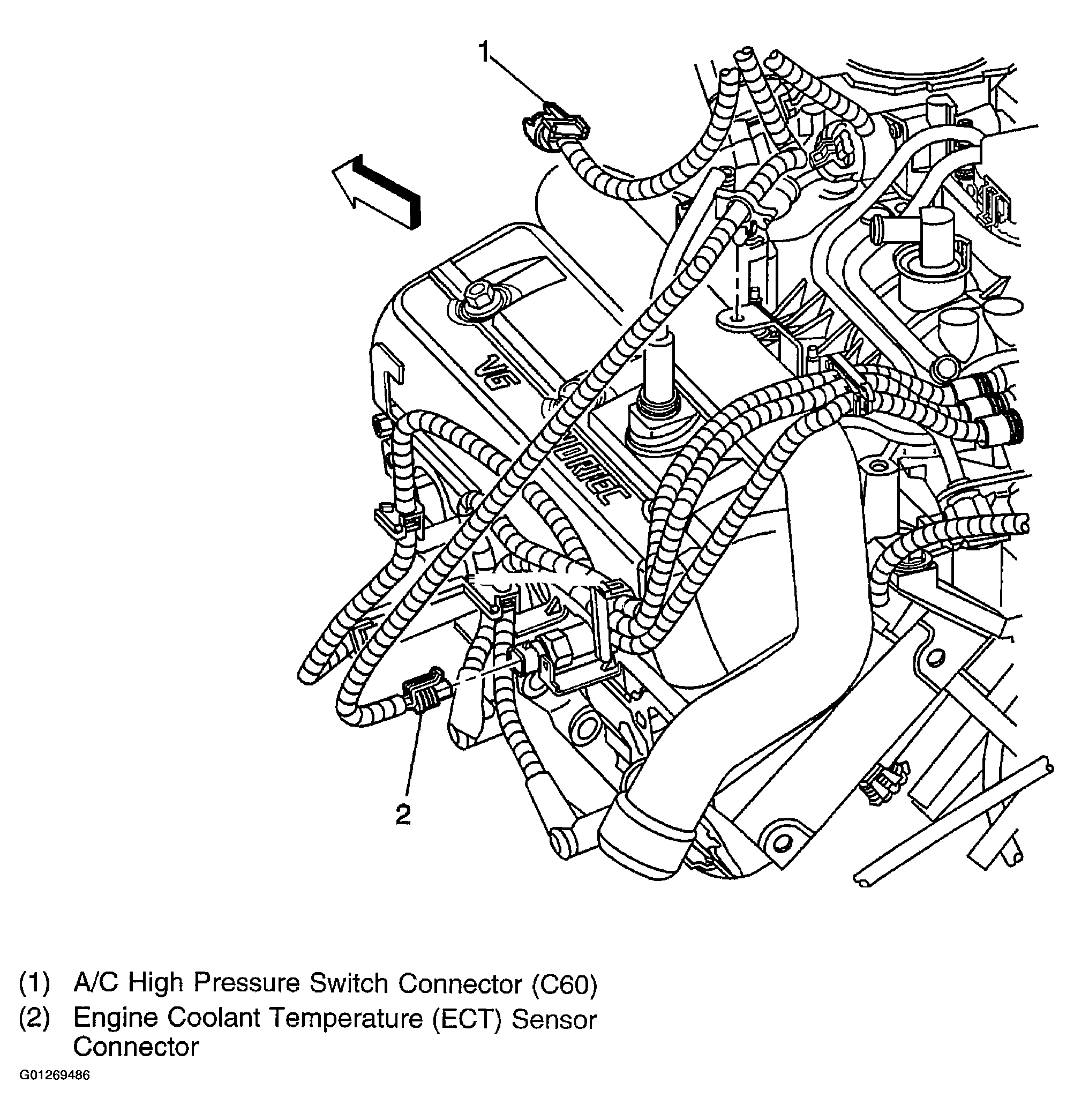

Fig 2: Left Rear of the Engine (4.3L)

G01269486

Courtesy of GENERAL MOTORS CORP.

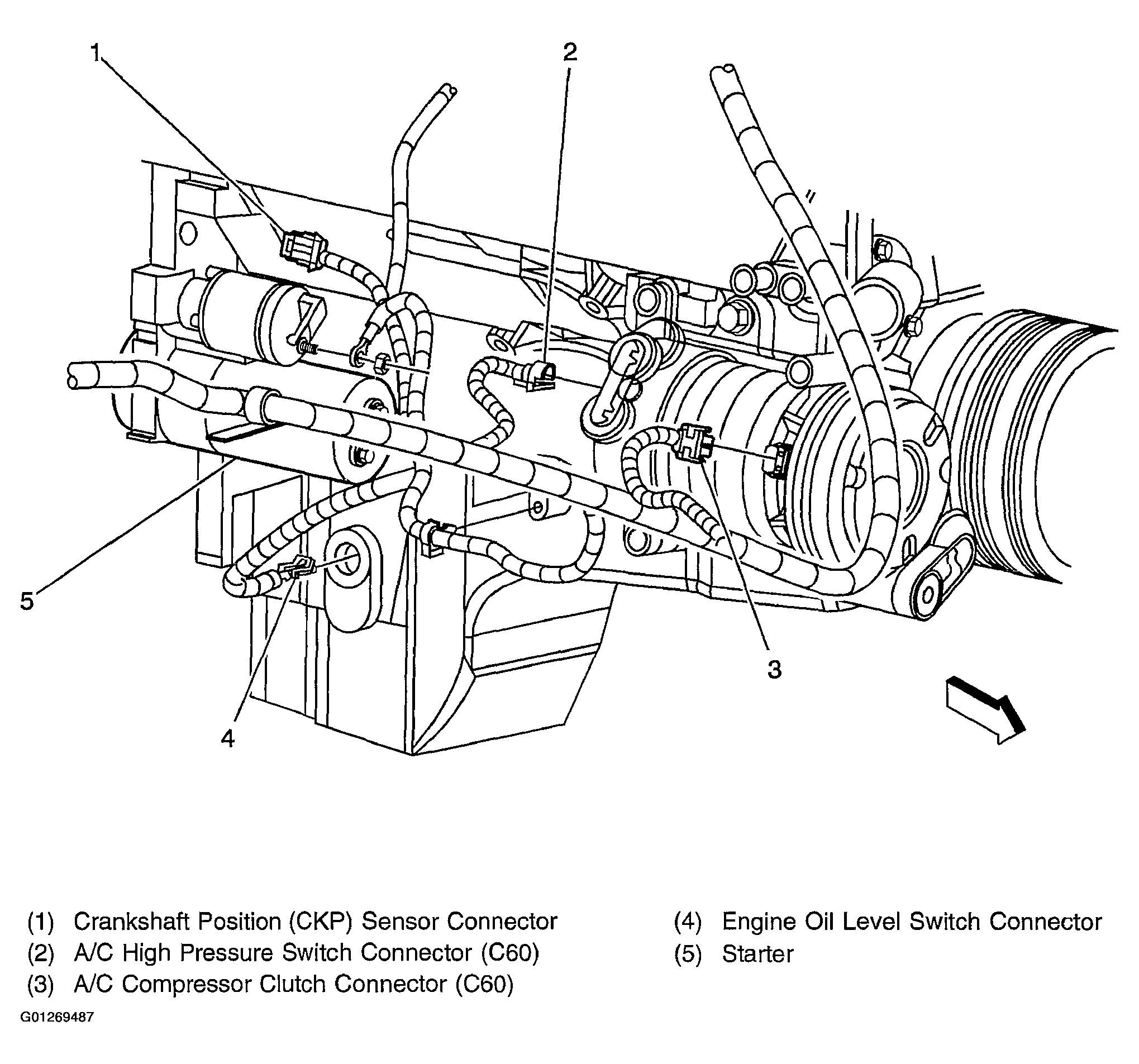

Fig 3: Right Side of the Engine (4.8L/5.3L/6.0L)

G01269487

Courtesy of GENERAL MOTORS CORP.

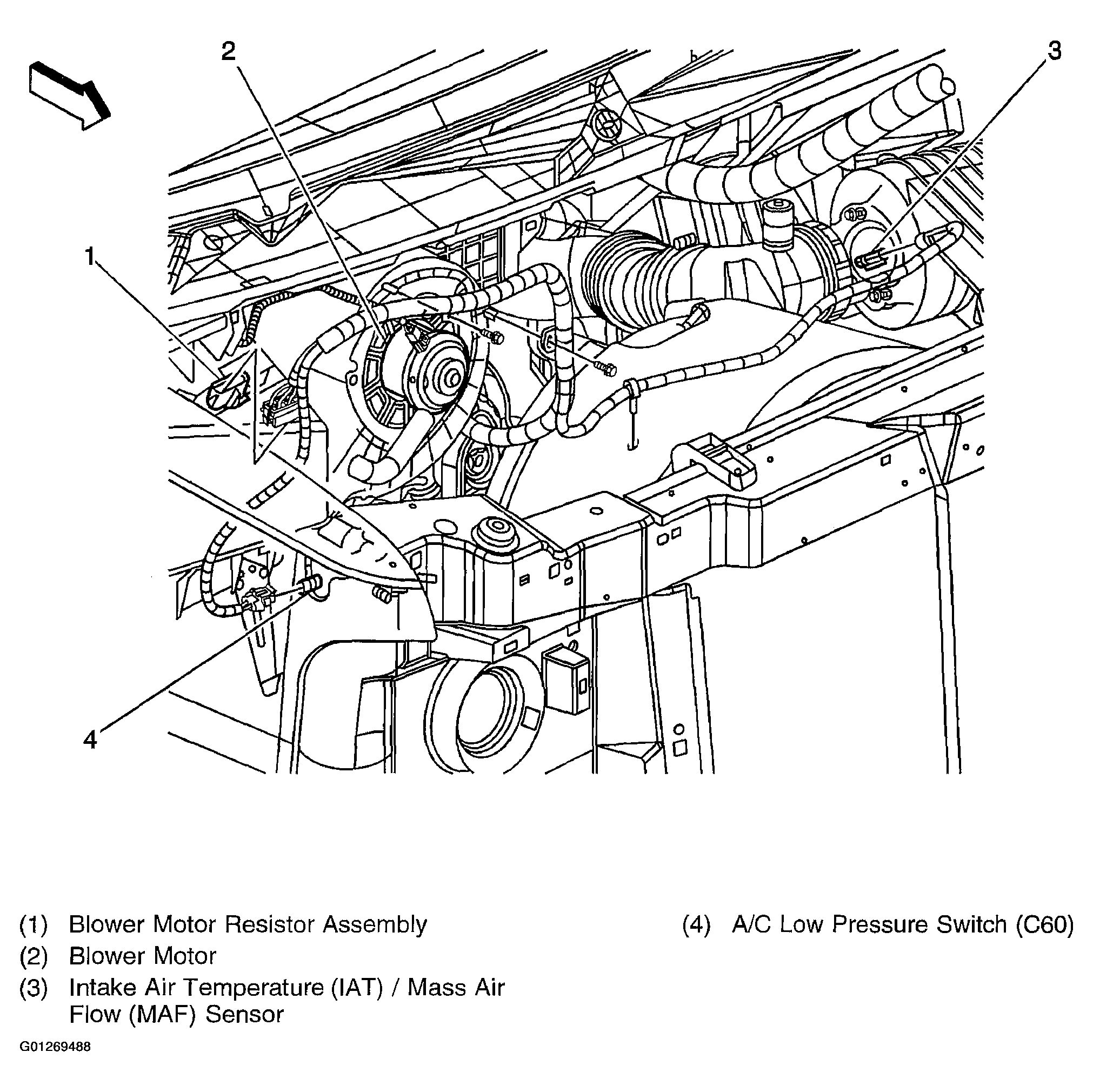

Fig 4: Rear of the Engine Compartment

G01269488

Courtesy of GENERAL MOTORS CORP.

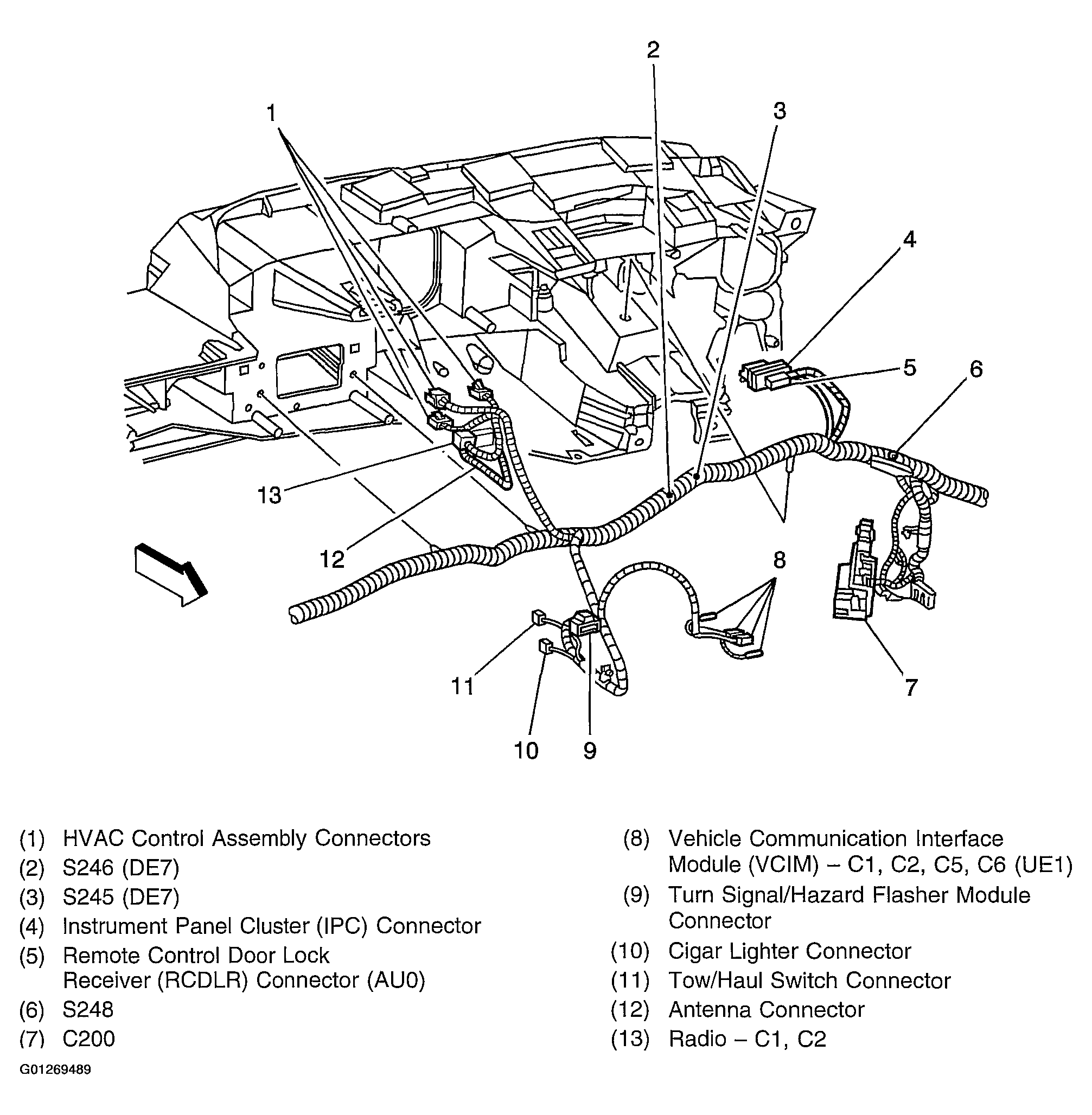

Fig 5: I/P Harness Routing - Center of the I/P

G01269489

Courtesy of GENERAL MOTORS CORP.

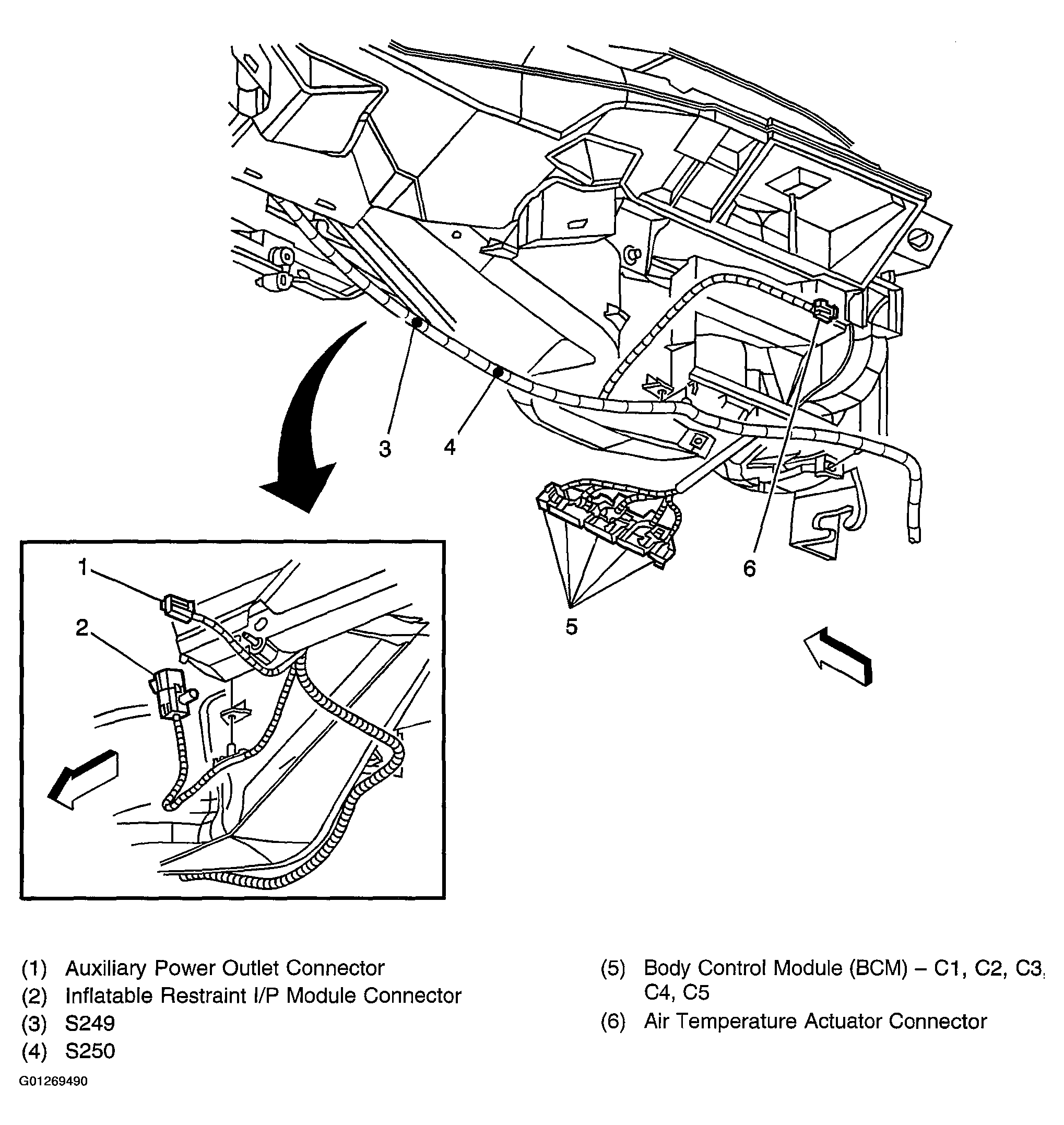

Fig 6: I/P Harness Routing - Right Side of the I/P

G01269490

Courtesy of GENERAL MOTORS CORP.

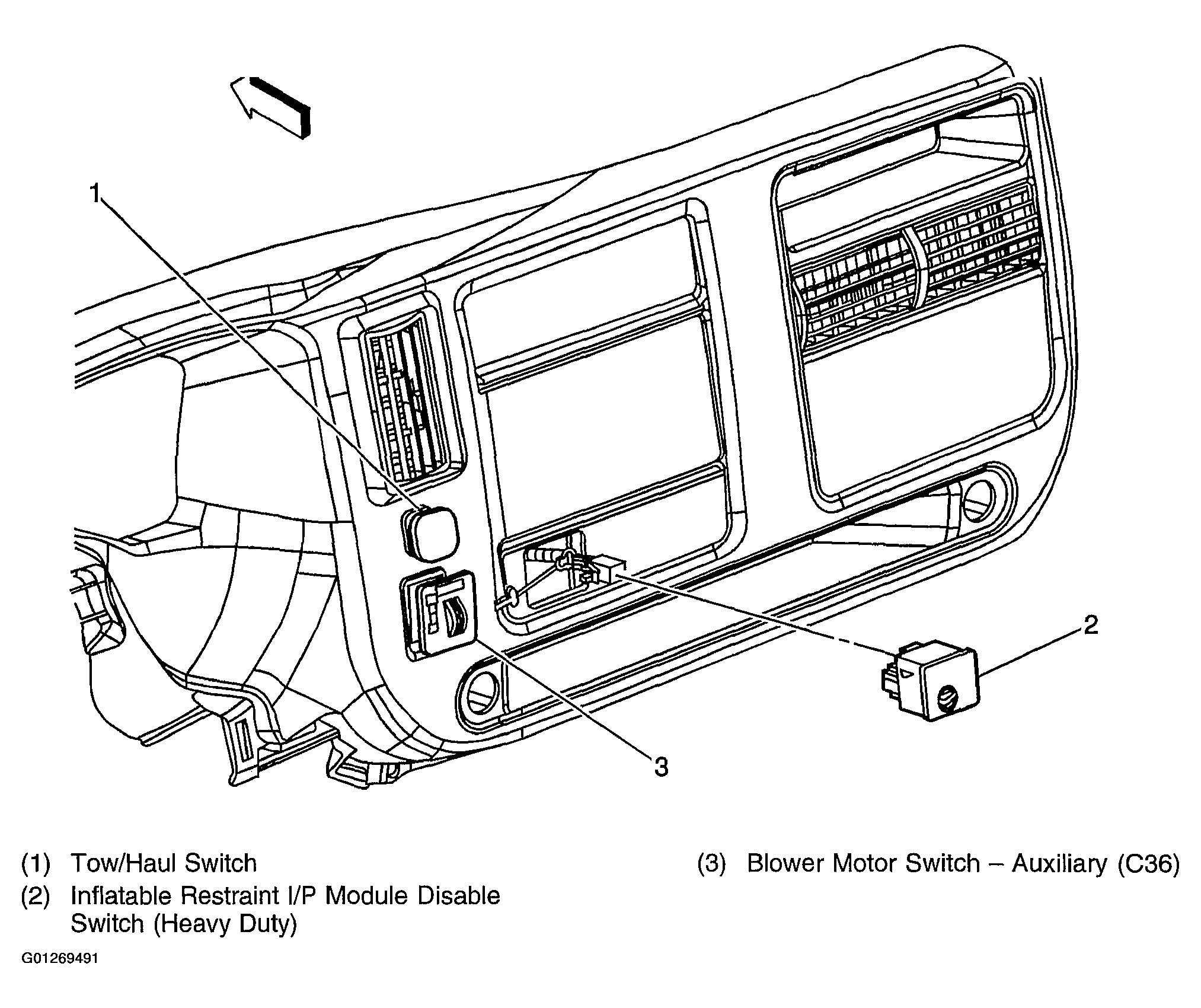

Fig 7: Center of the I/P

G01269491

Courtesy of GENERAL MOTORS CORP.

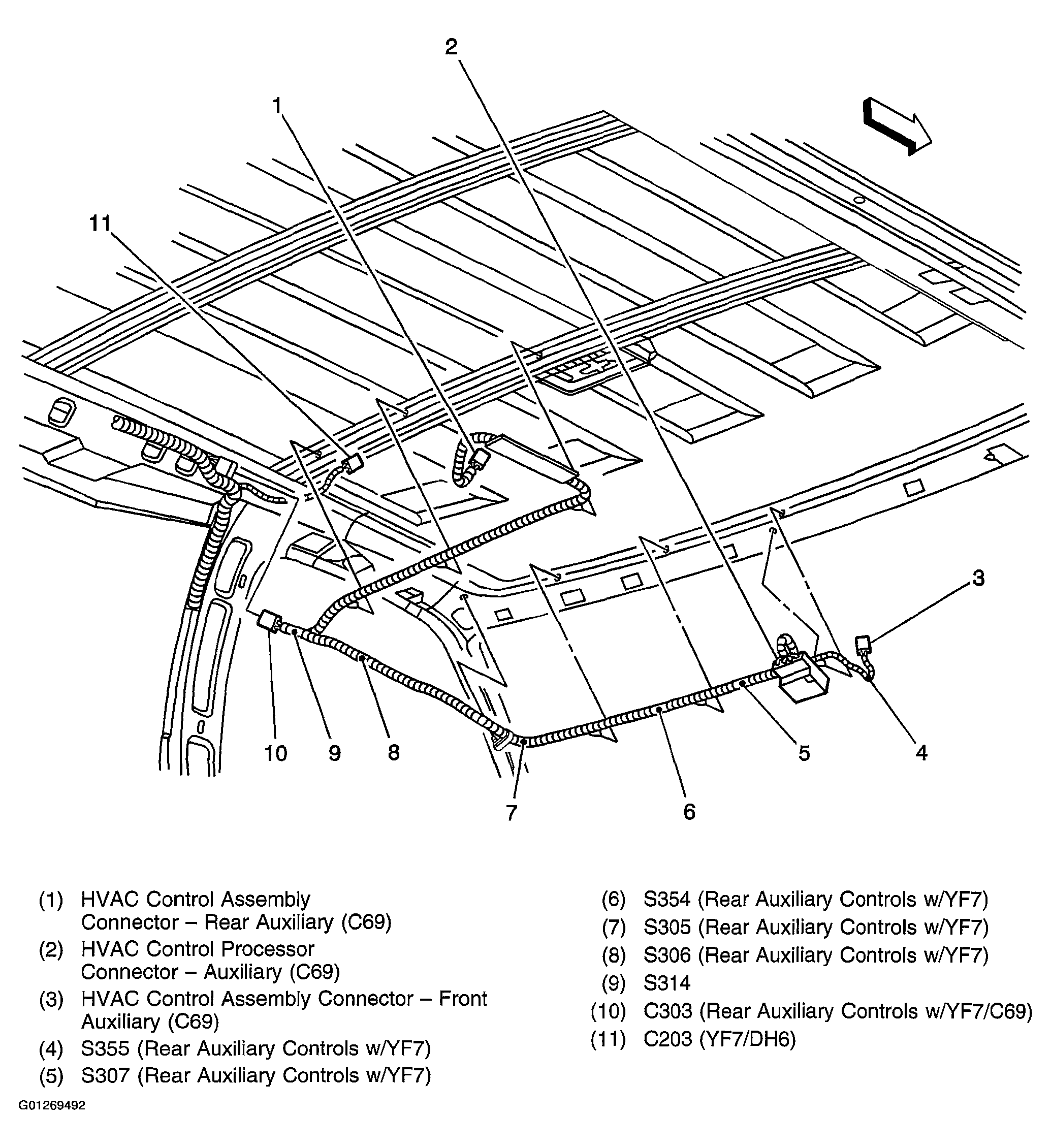

Fig 8: HVAC Controls Harness Routing

G01269492

Courtesy of GENERAL MOTORS CORP.

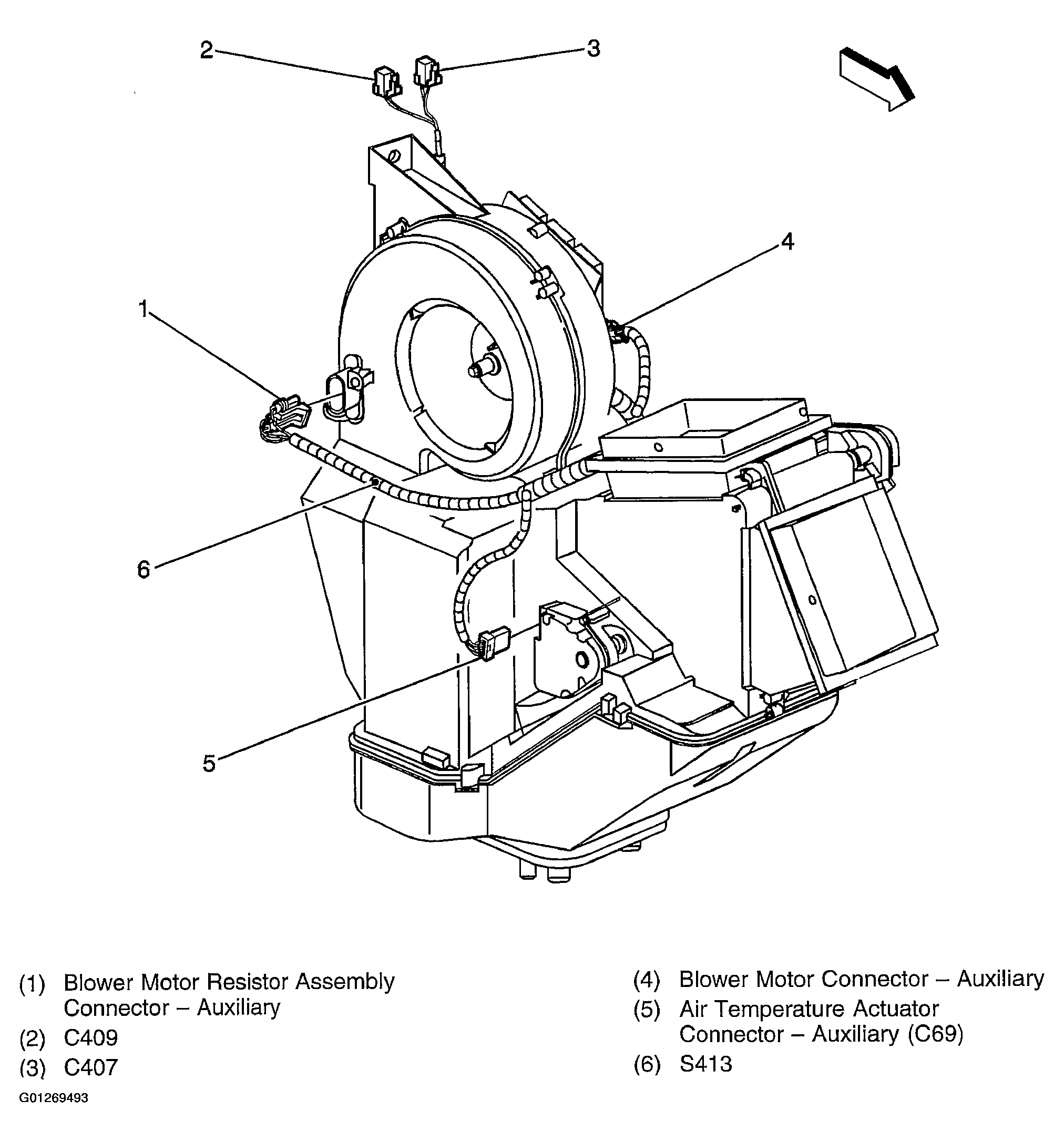

Fig 9: Auxiliary Heater and A/C Harness Routing - Front (C36/C69)

G01269493

Courtesy of GENERAL MOTORS CORP.

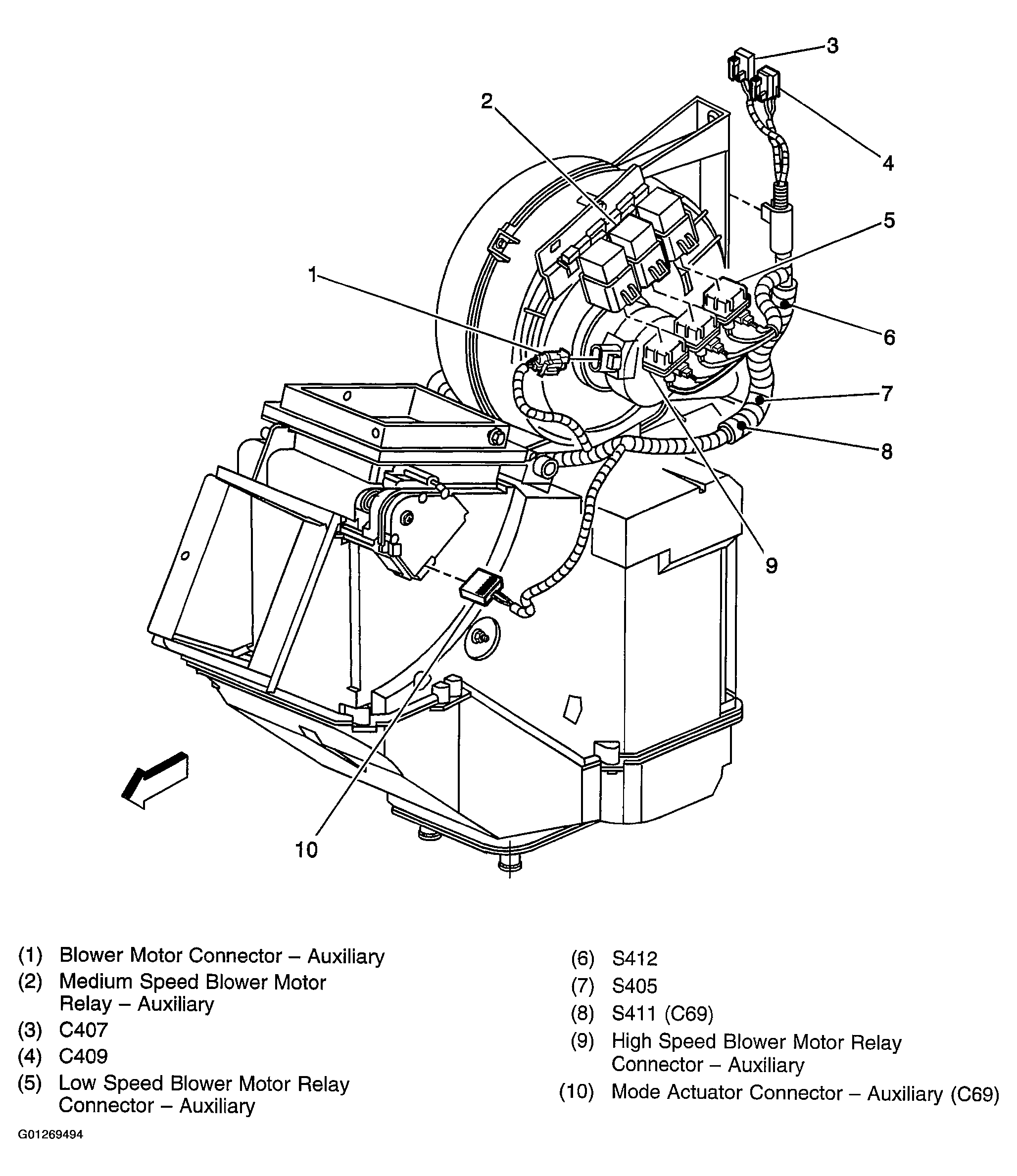

Fig 10: Auxiliary Heater and A/C Harness Routing - Rear (C36/C69)

G01269494

Courtesy of GENERAL MOTORS CORP.
