Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P cluster trim plate. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console .
  2. Remove the retaining screw from the HVAC control assembly.
  3. Pivot the HVAC control assembly to disengage the locking tab on the right side.
  4. Disconnect the electrical connectors.
  5. Disconnect the vacuum connector.

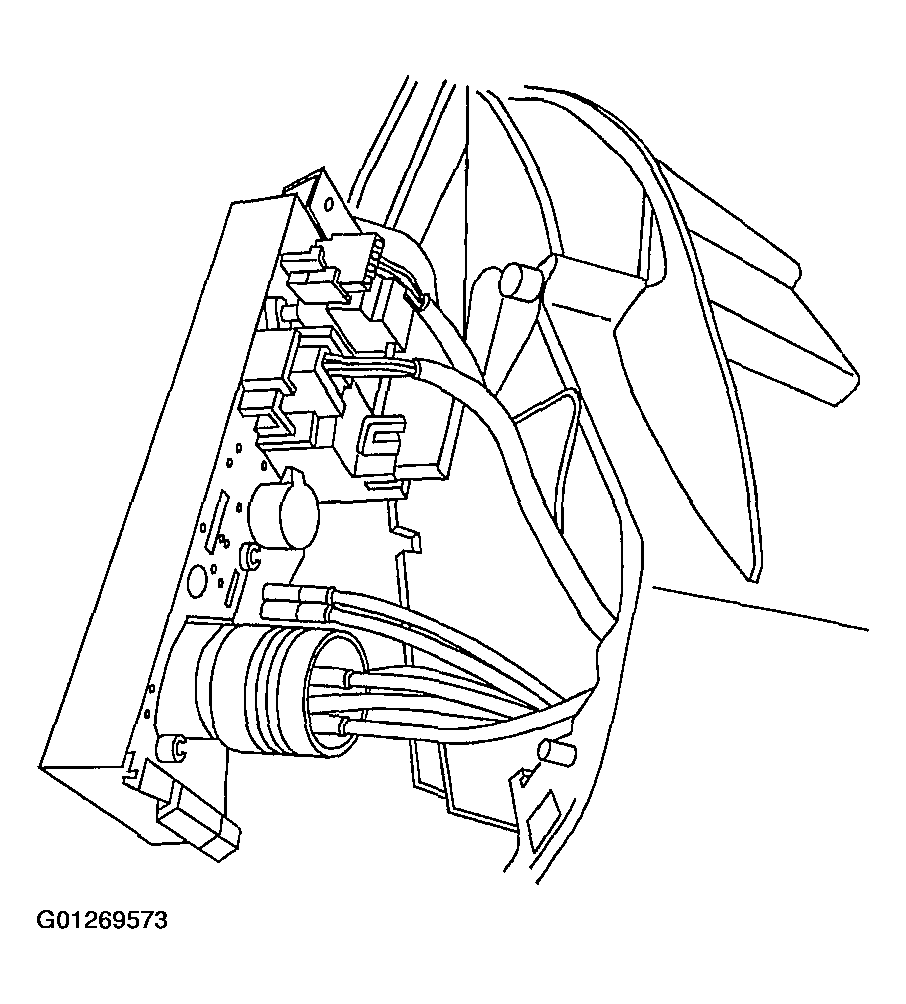

    Fig 1: Disconnecting Electrical Connectors & Vacuum Connector
    G01269573Courtesy of GENERAL MOTORS CORP.
  6. Remove the HVAC control assembly.

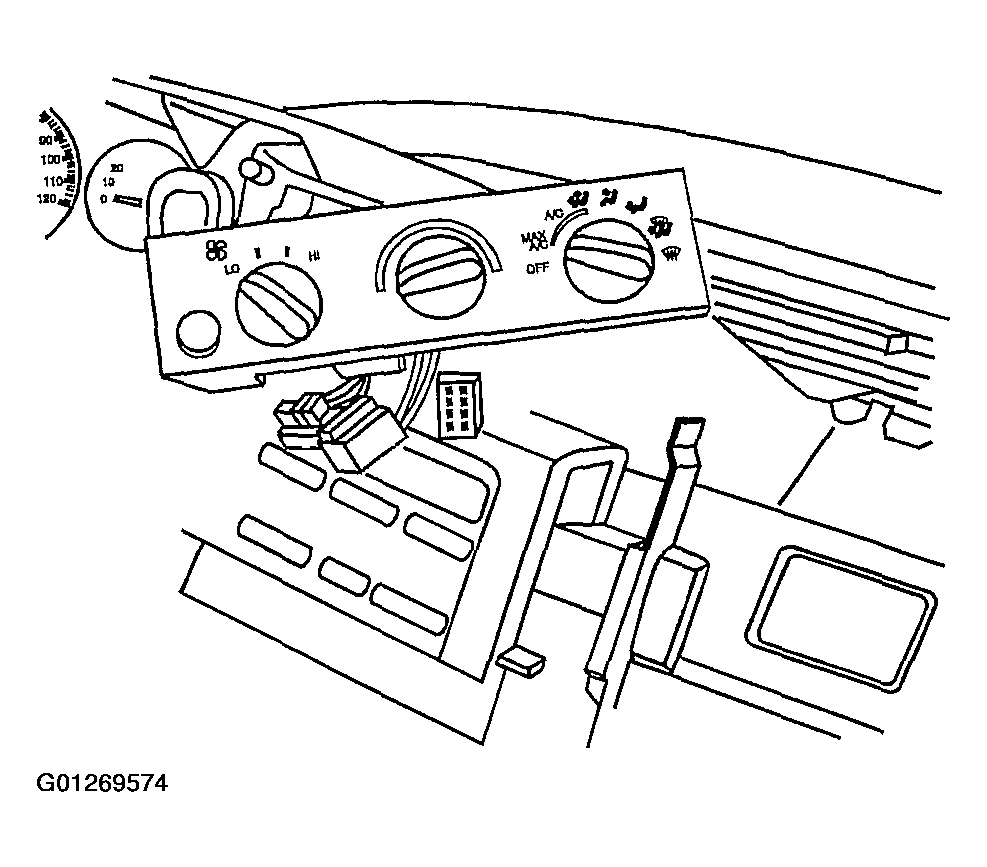

    Fig 2: Removing HVAC Control Assembly
    G01269574Courtesy of GENERAL MOTORS CORP.
