Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the assist handle (2) to the seatback (1).
CAUTION: Refer to FASTENER NOTICE .
Install the screws (3) that retain the assist handle to the seatback.
Tighten

Tighten the screws to 5 N.m (44 lb in).

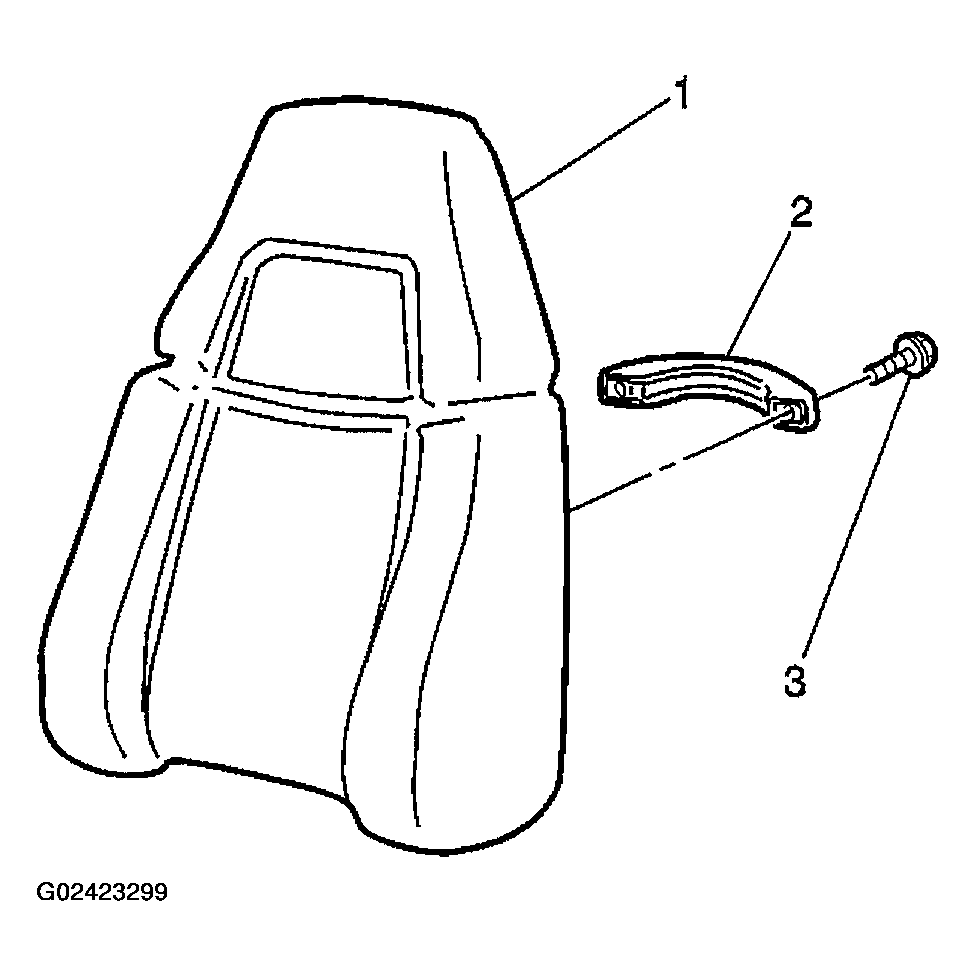

Fig 1: Installing Assist Handle
Courtesy of GENERAL MOTORS CORP.
