Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the radio mounting bracket. Perform the following steps:
1. Attach the HVAC harness to the radio mounting bracket with the clip.
  CAUTION: Refer to FASTENER NOTICE .
2. Install the screws (2) in order to retain the radio mounting bracket (1) to the instrument panel carrier.
  Tighten

  Tighten the screws to 3 N.m (27 lb in).

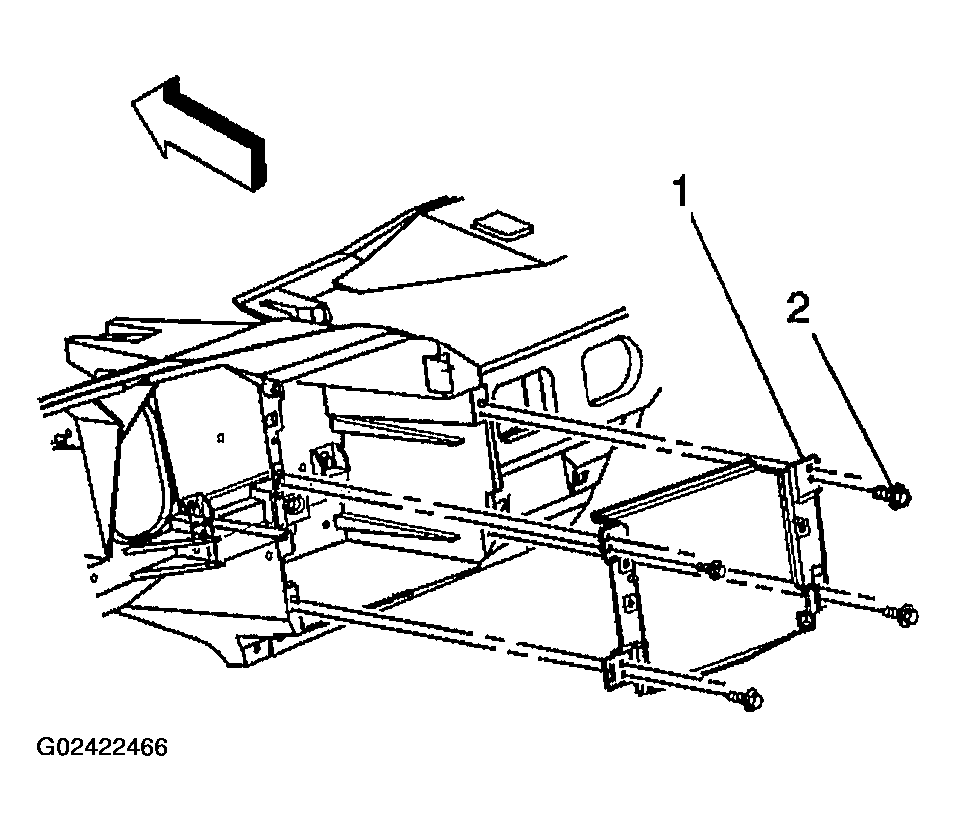

Fig 1: Installing Radio Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Connect the electrical/audio and antenna cable connectors to the radio.
Install the radio to the support bracket (1).
Align the radio locator tab into the support bracket locator hole.
Install the radio screws (2).
Tighten

Tighten the screws to 2 N.m (18 lb in).
Install the instrument cluster panel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
Calibrate the new radio assembly. Refer to Service Programming System (SPS) Description .

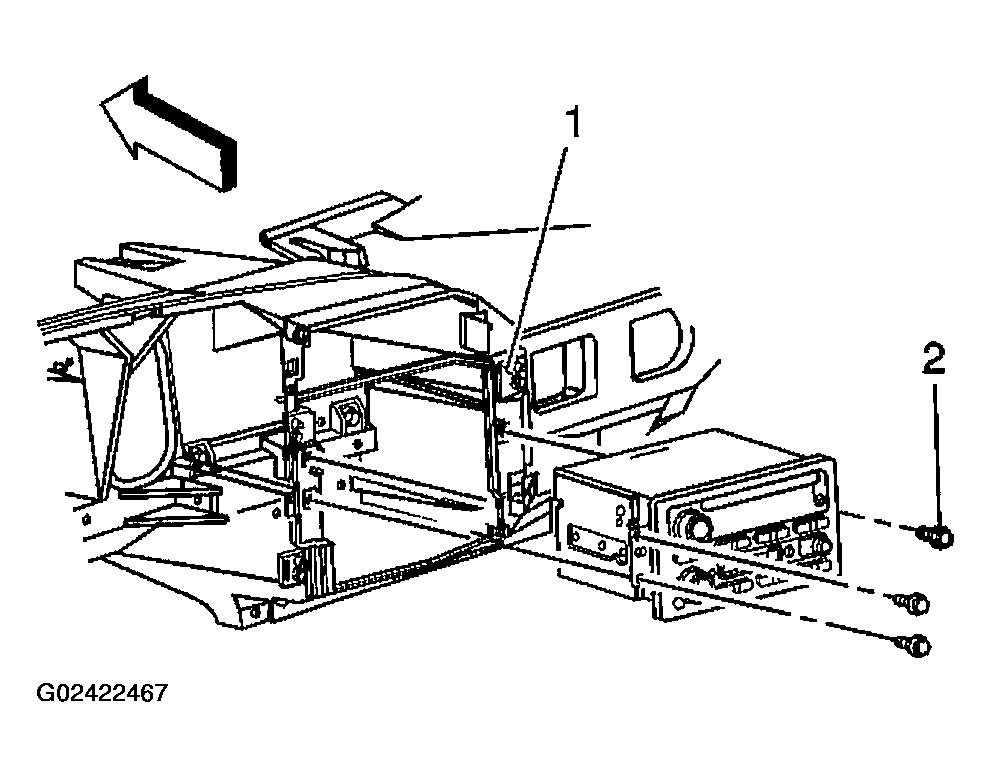

Fig 2: Installing Radio
Courtesy of GENERAL MOTORS CORP.
