Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Feed the microphone (1) wire through the hole in the headliner.
Align the microphone (1) with the hole in the headliner and install the microphone in the opening.

Fig 1: Installing Microphone
Courtesy of GENERAL MOTORS CORP.
Rotate the microphone (1) counter clockwise to secure.
Glue or tape the microphone wiring to the headliner.

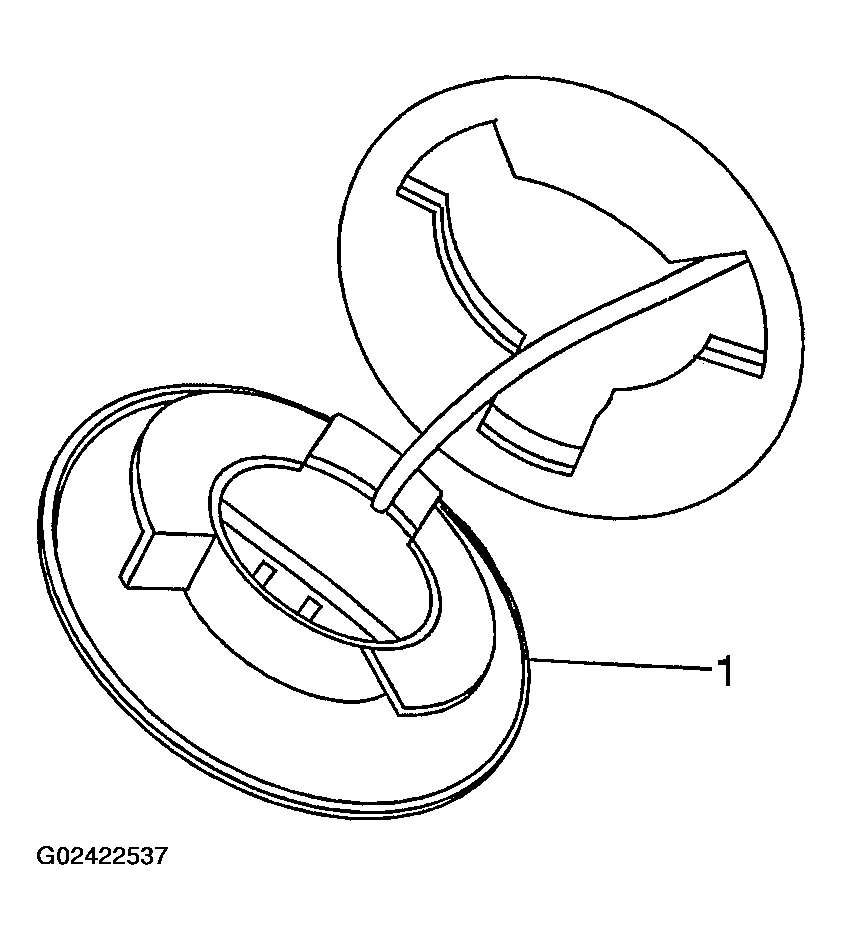

Fig 2: Rotating Microphone Counterclockwise
Courtesy of GENERAL MOTORS CORP.
Install the front headliner. Refer to HEADLINER REPLACEMENT - FRONT .
Connect the microphone electrical connector (1).
Install the passenger windshield garnish molding. Refer to WINDSHIELD GARNISH MOLDING REPLACEMENT .

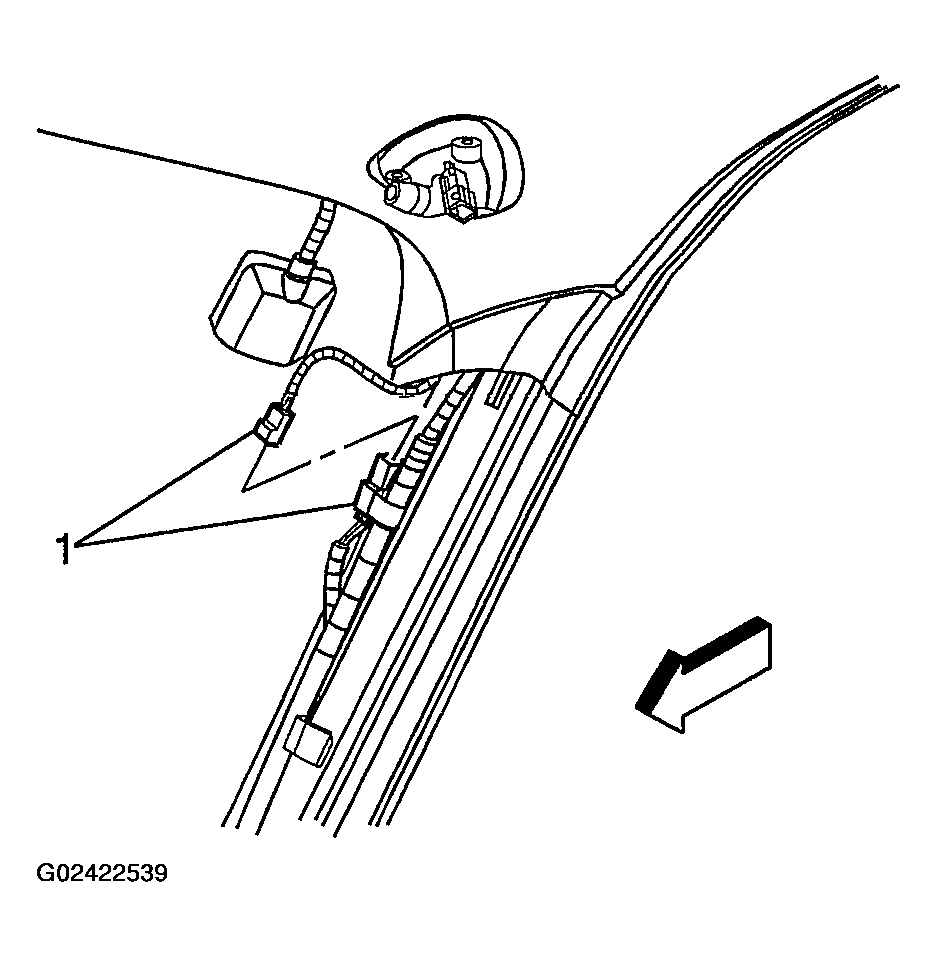

Fig 3: Connecting Microphone Electrical Connector
Courtesy of GENERAL MOTORS CORP.
