Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

9. Listen for an audible click when the RR DEFOG relay operates. Command both the ON and OFF states of the RR DEFOG relay. Repeat the commands as necessary.

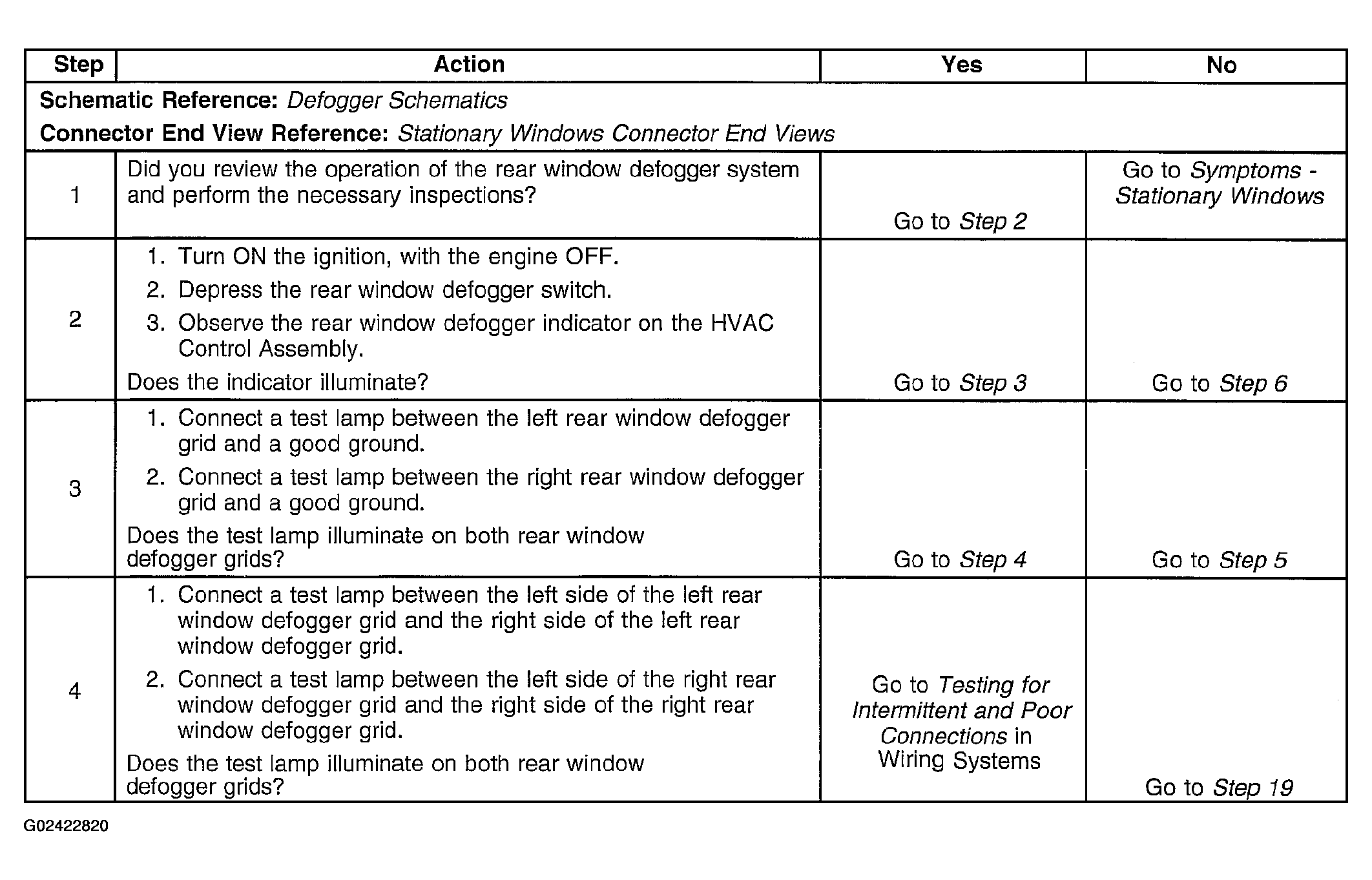

Fig 1: Identifying Defogger Inoperative - Rear Window Diagnostic Table (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

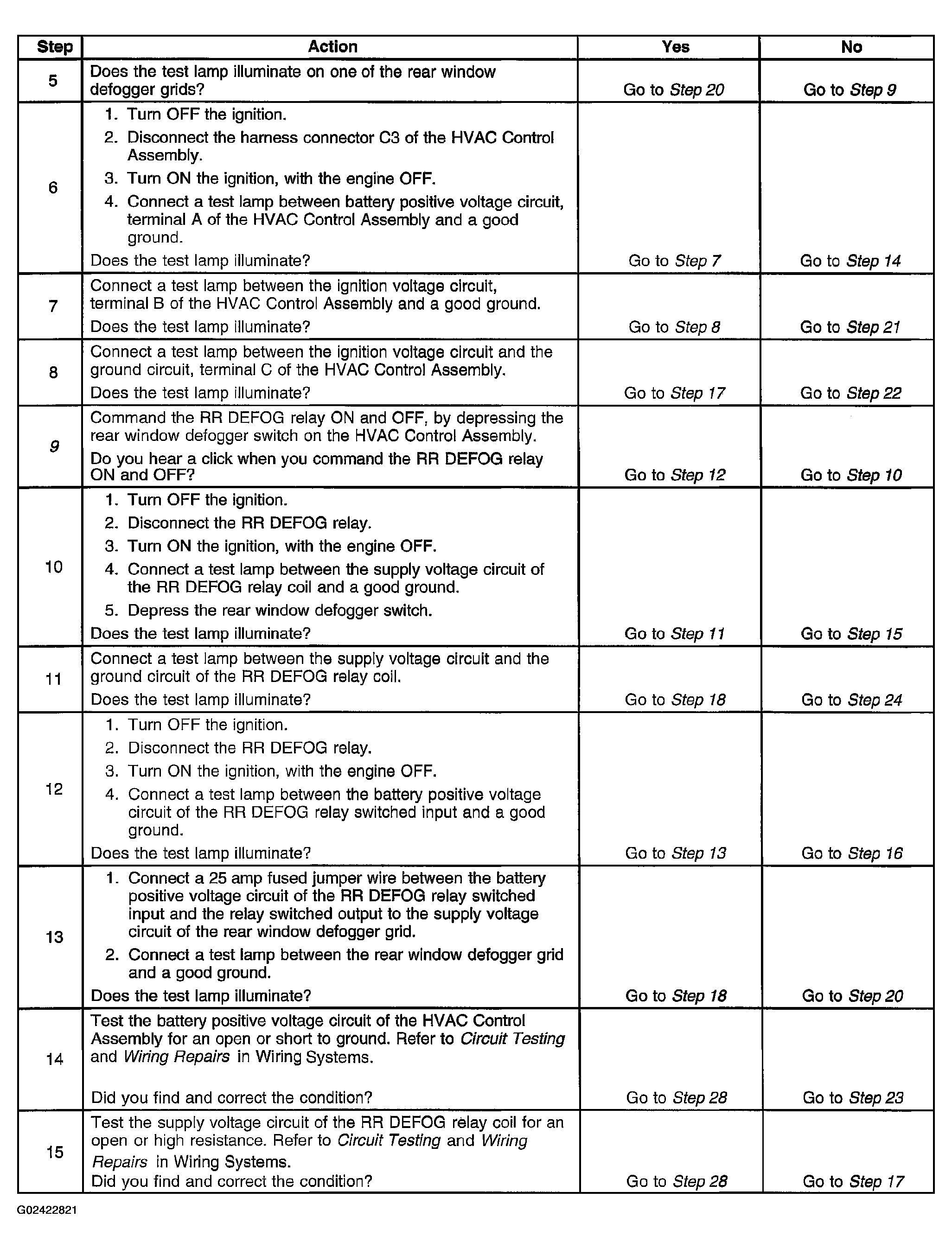

Fig 2: Identifying Defogger Inoperative - Rear Window Diagnostic Table (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

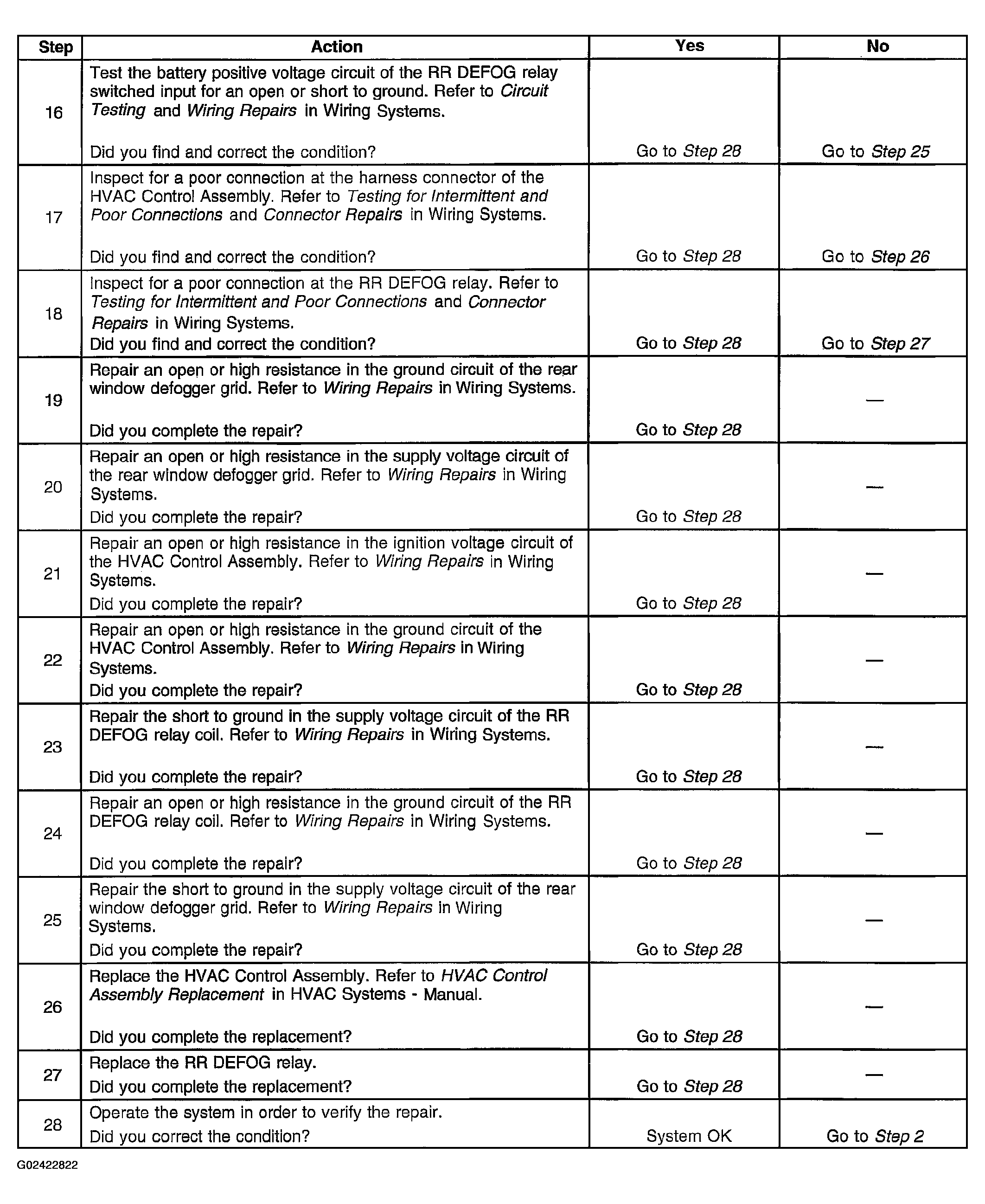

Fig 3: Identifying Defogger Inoperative - Rear Window Diagnostic Table (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
