Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to FASTENER NOTICE .

Install the wiper motor cover onto the wiper motor with the 3 screws.
Tighten

Tighten the screws to 3 N.m (26 lb in).

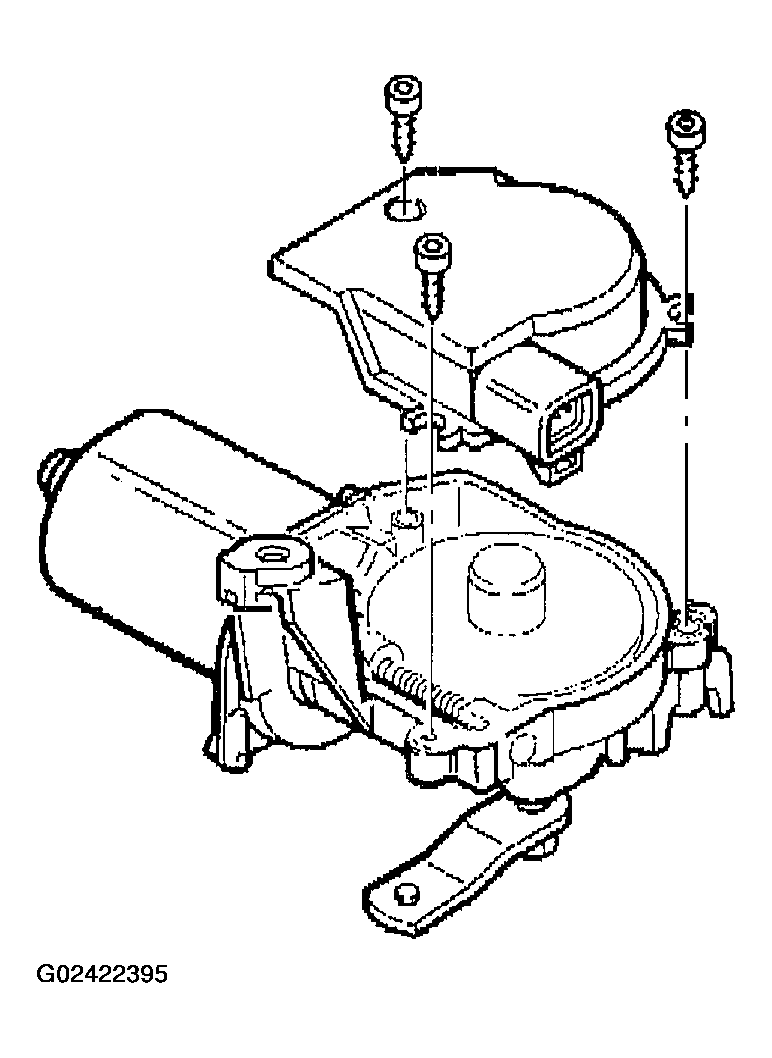

Fig 1: Installing Wiper Motor Cover
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the wiper motor.
Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
Install the wiper arms. Refer to Wiper Arm Replacement .
Operate the wipers and inspect for proper operation.

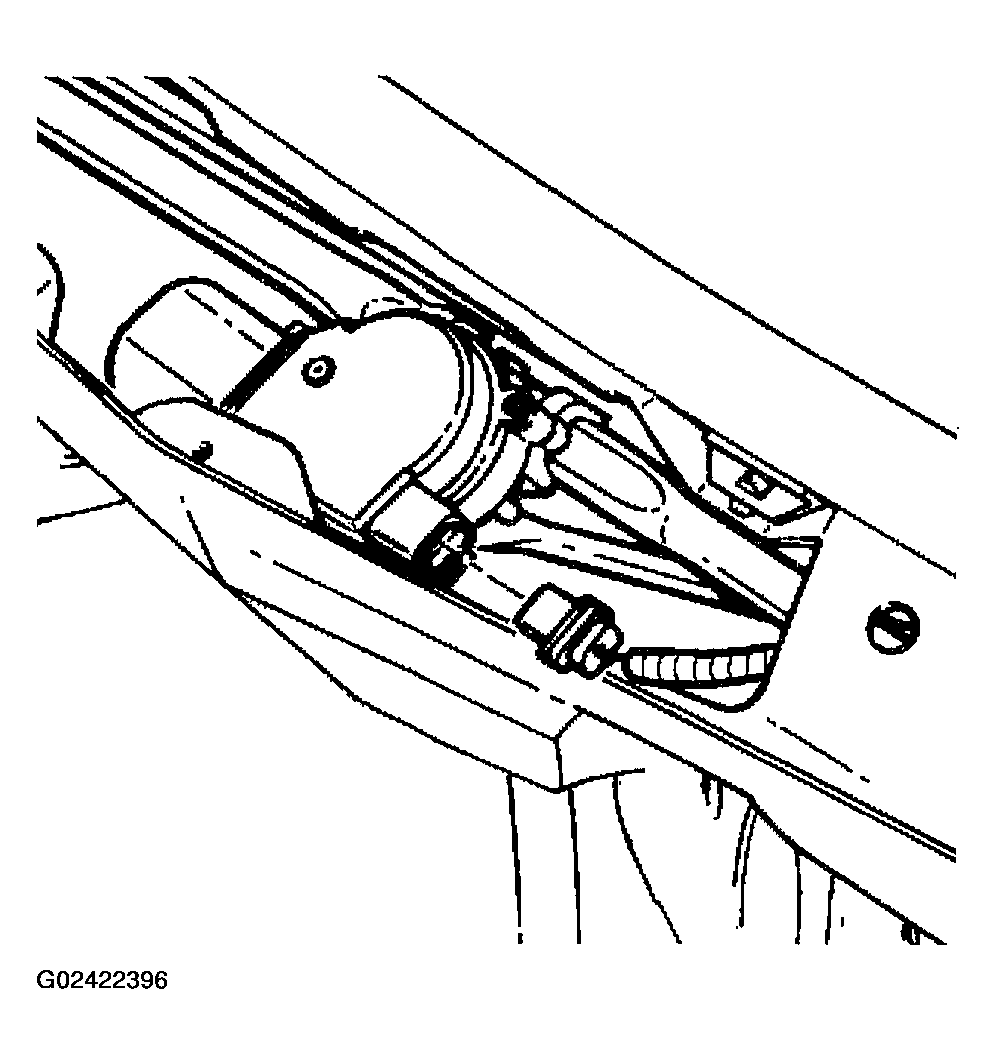

Fig 2: Connecting Electrical Connector To Wiper Motor
Courtesy of GENERAL MOTORS CORP.
