Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the passenger side body side protector to the vehicle.

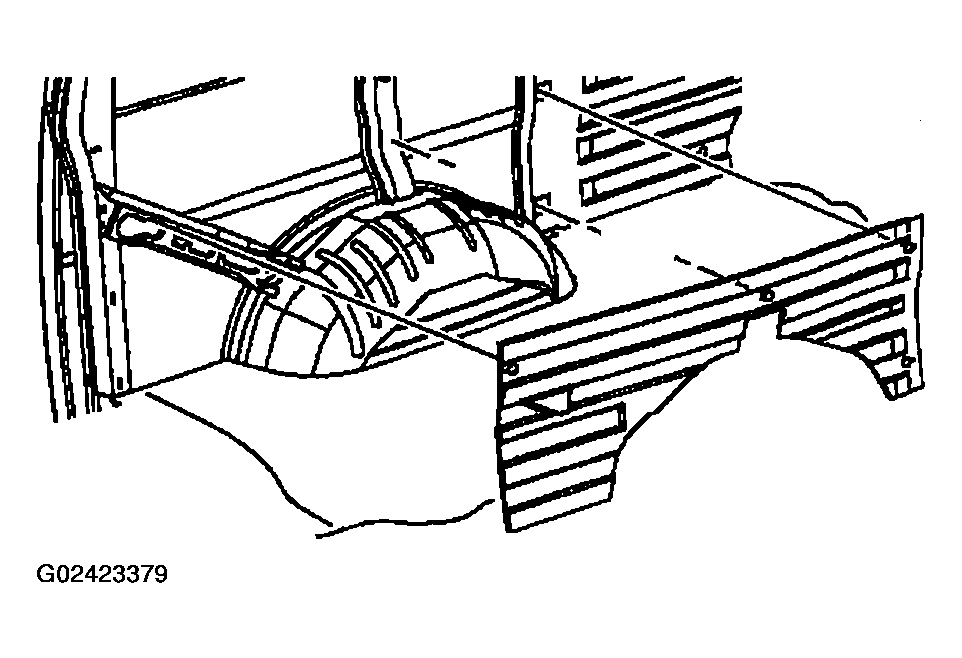

Fig 1: Installing Passenger Side Body Side Protector
Courtesy of GENERAL MOTORS CORP.
Install the driver side body side rear protector to the vehicle.

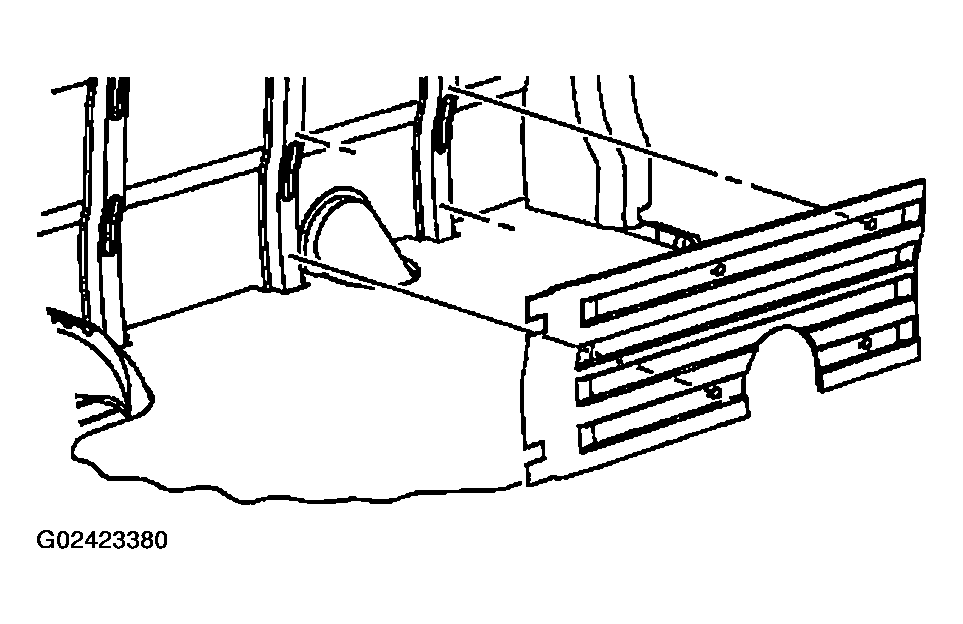

Fig 2: Installing Driver Side Body Side Rear Protector
Courtesy of GENERAL MOTORS CORP.
Install the driver side body side front protector to the vehicle.
Install the retainers to the body side protectors.

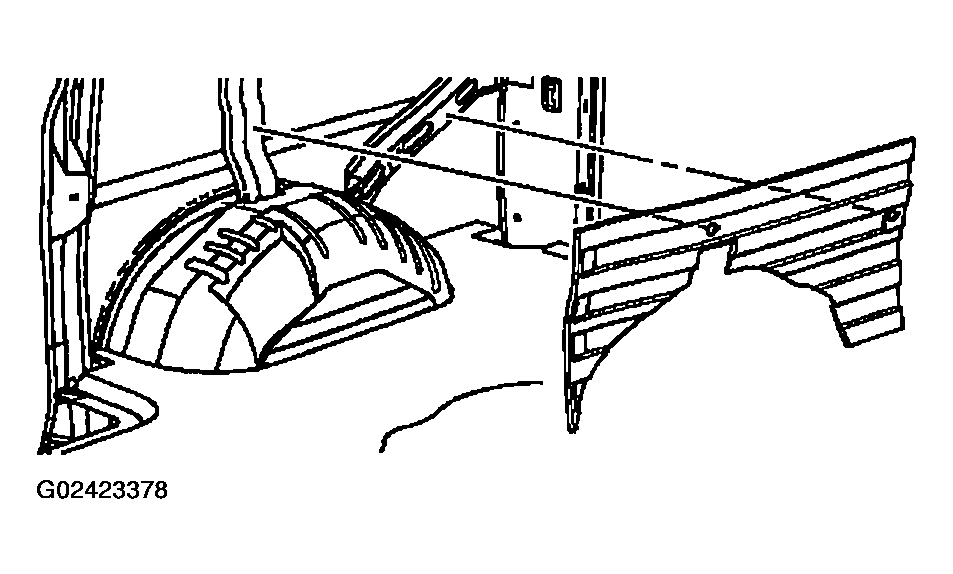

Fig 3: Installing Driver Side Body Side Front Protector
Courtesy of GENERAL MOTORS CORP.
