Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

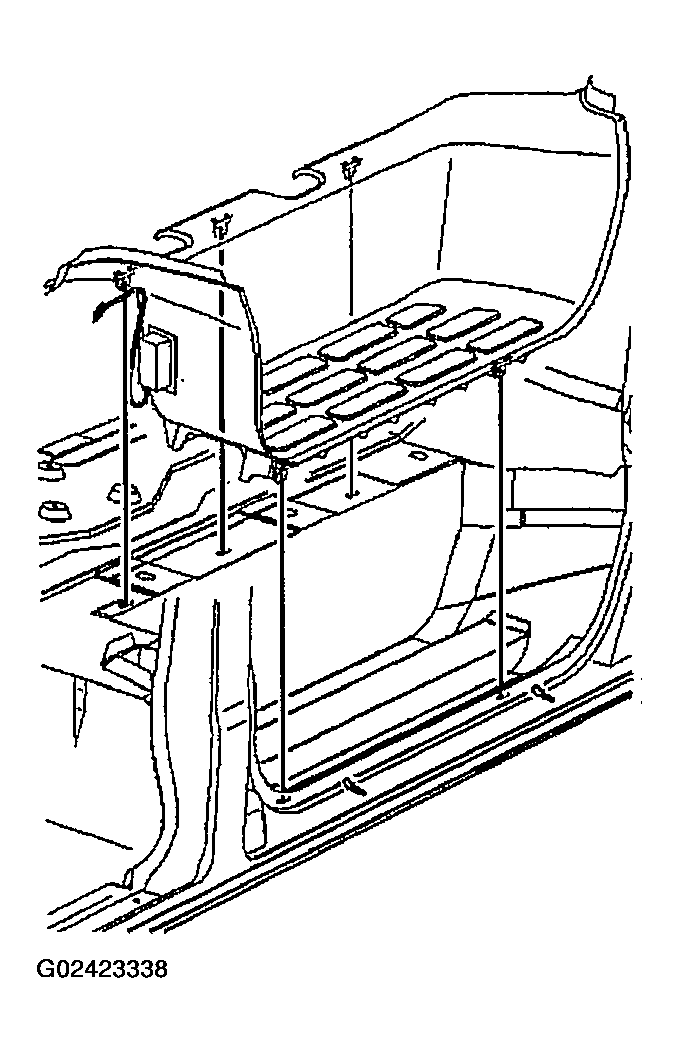

- Install the front door stepwell mat to the vehicle.
- Connect the electrical connector for the stepwell lamp.
- Press down on the front door stepwell mat in order to engage the retaining clips.
- Install the front door lower pillar garnish molding. Refer to Garnish Molding Replacement - Lower Pillar .
- Install the hinge pillar trim panel. Refer to Trim Replacement - Hinge Pillar .
