Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

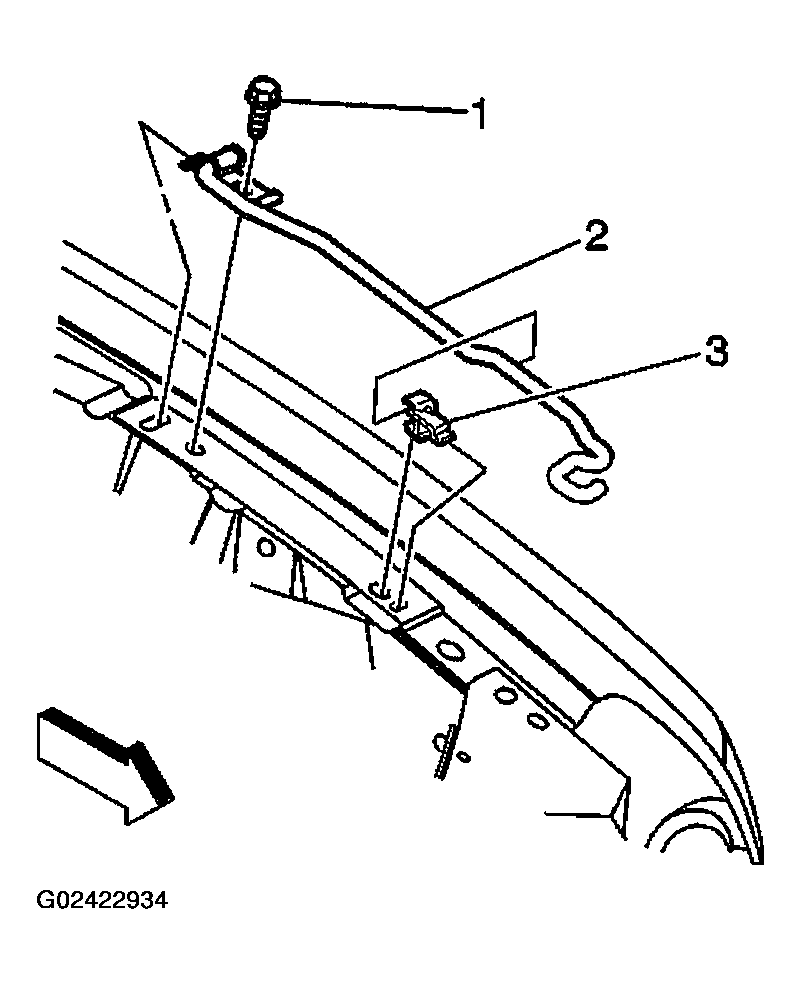

- Install the support rod (2) to the vehicle.CAUTION: Refer to FASTENER NOTICE .
- Install the bolt (1) in order to retain the hood support rod to the vehicle.
Tighten
Tighten the bolt to 11 N.m (97 lb in).
- Remove the alternate support.
- Close the hood.
