Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place protective covering over adjacent body panels.
  2. Remove the wiper arms from the vehicle. Refer to WIPER ARM REPLACEMENT .
  3. Open and support the hood.
  4. Remove the underhood lamp and the harness from the hood. Refer to UNDERHOOD LAMP REPLACEMENT .
  5. Remove the air inlet grille panels. Refer to Air Inlet Grille Panel Replacement .
  6. Remove the pivot bolts (4) and the nuts (2) from the hinge (1).
  7. With an assistant, remove the hood from the vehicle.

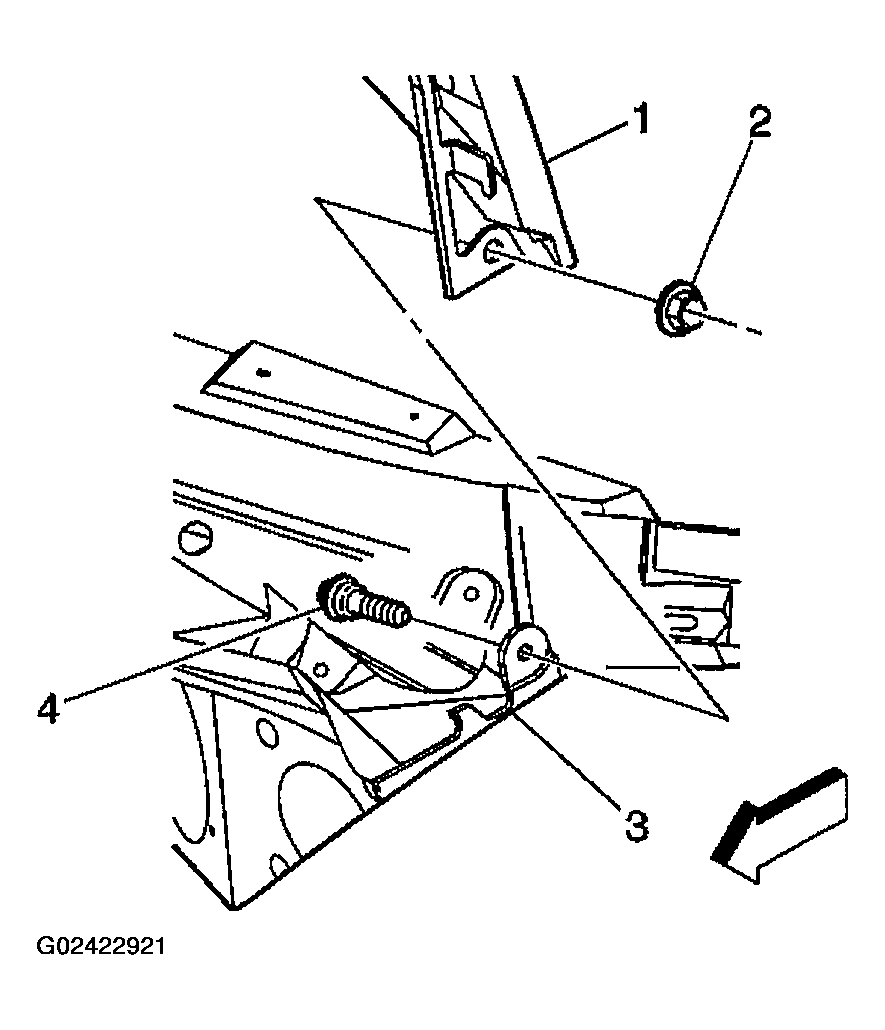

    Fig 1: Removing Pivot Bolts & Nuts From Hinge
    G02422921Courtesy of GENERAL MOTORS CORP.
