Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the hinge to the hood bolts.
Tighten
1. Tighten the hinge to the hood bolts to 25 N.m (18 lb ft).
Remove the hood support and lower hood.

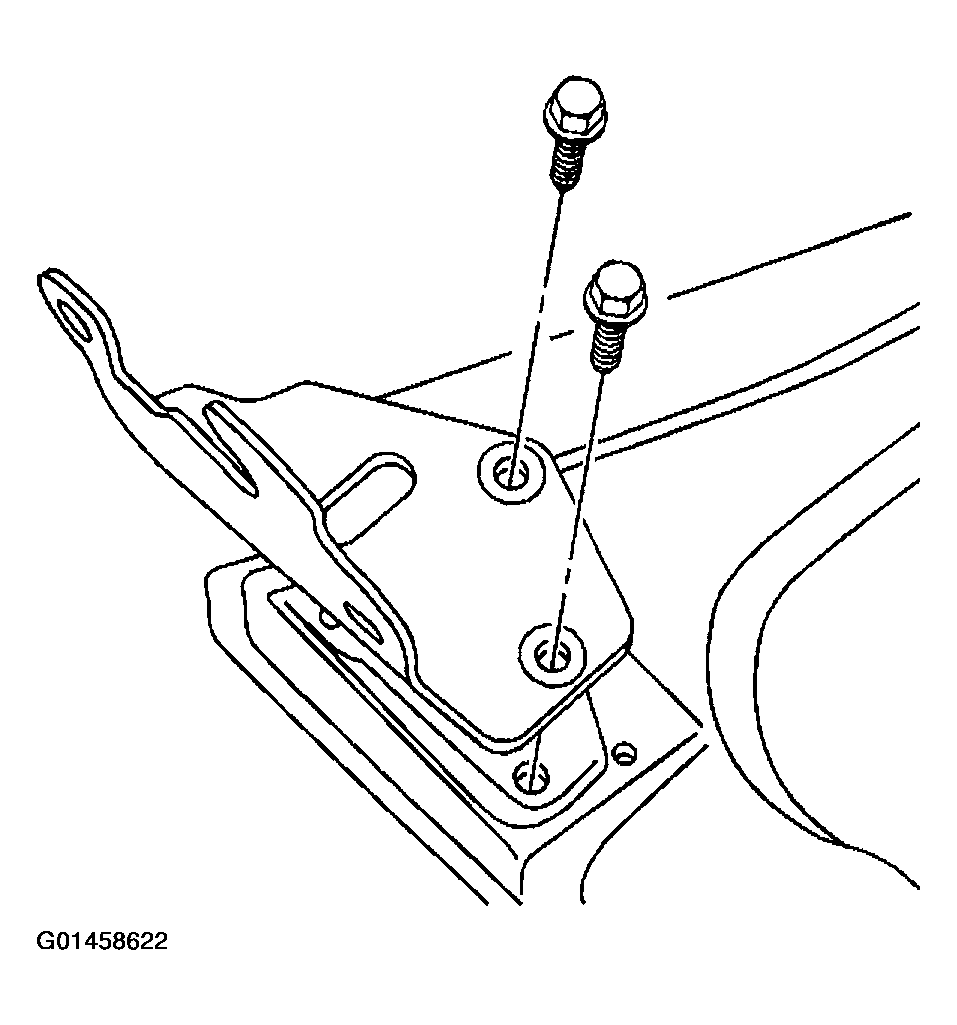

Fig 1: Hinge Bolts Tightening Torque
Courtesy of GENERAL MOTORS CORP.
