Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the insulator (1) to the rear hood (3) and fold at the center to position under the front holding tabs (4).
  2. Install the retainers (2).
  3. Install the underhood lamp assembly and press the assembly in order to attach.

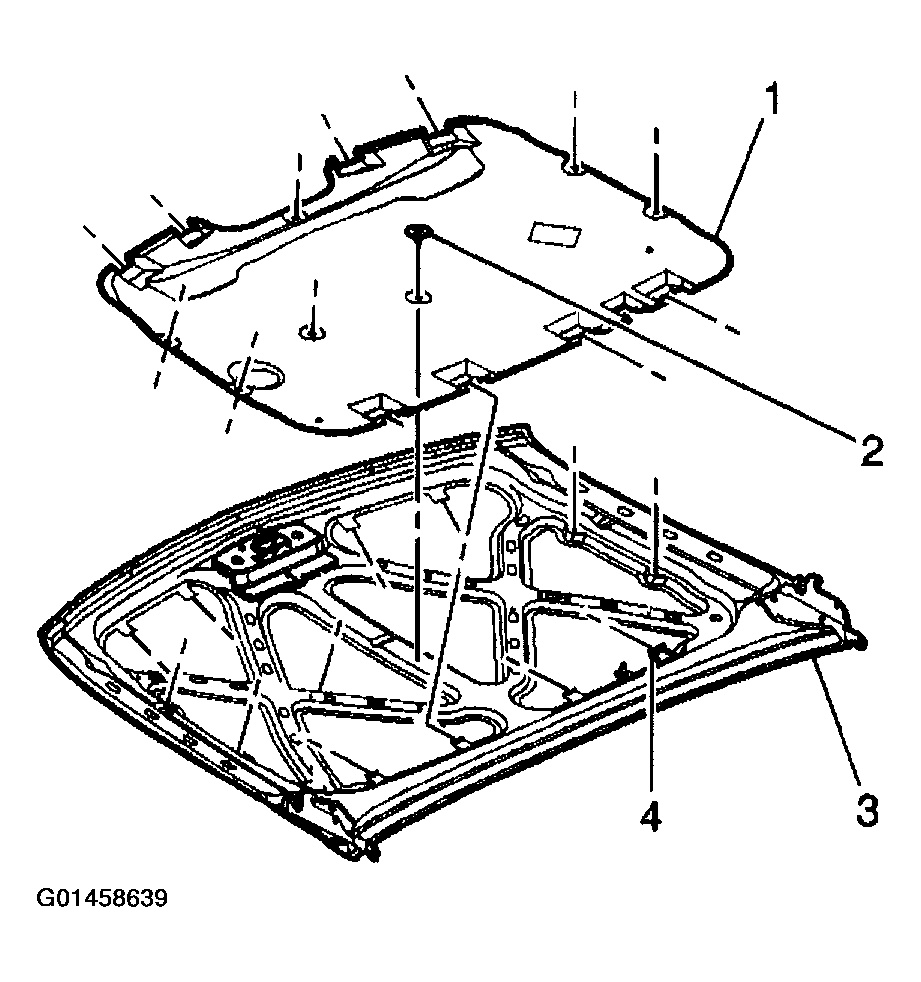

    Fig 1: Installing Hood Insulator
    G01458639Courtesy of GENERAL MOTORS CORP.
  4. Install the fasteners to the underhood lamp harness.
  5. Connect the electrical connector to the underhood lamp assembly.
  6. Close the hood.

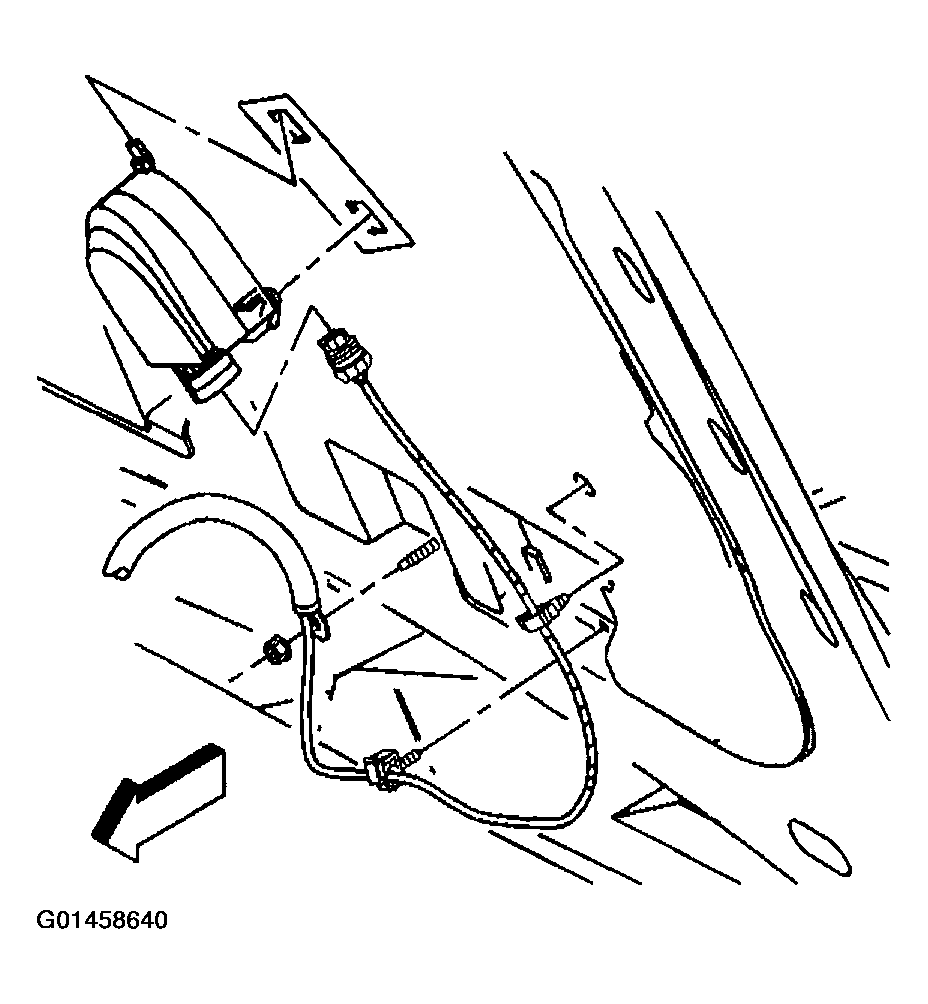

    Fig 2: Connecting Underhood Lamp Connector
    G01458640Courtesy of GENERAL MOTORS CORP.
