Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Raise the hood (1).
Support the hood at the front and the rear.

Fig 1: Hood Removing Procedure
Courtesy of GENERAL MOTORS CORP.
Remove the hood ground strap and nut.
Release the harness and the lamp from the hood.

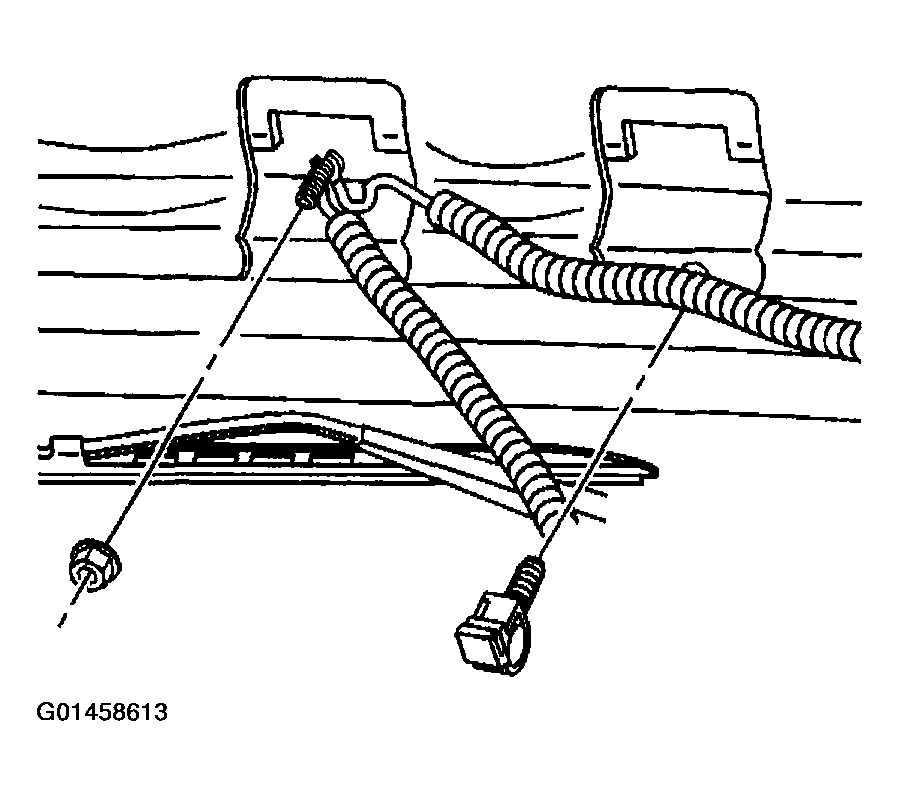

Fig 2: Removing Hood Ground Strap And Nut
Courtesy of GENERAL MOTORS CORP.
Remove the bolt holding the hood hinge to the hood link assembly (7).
Lower and support the hood.

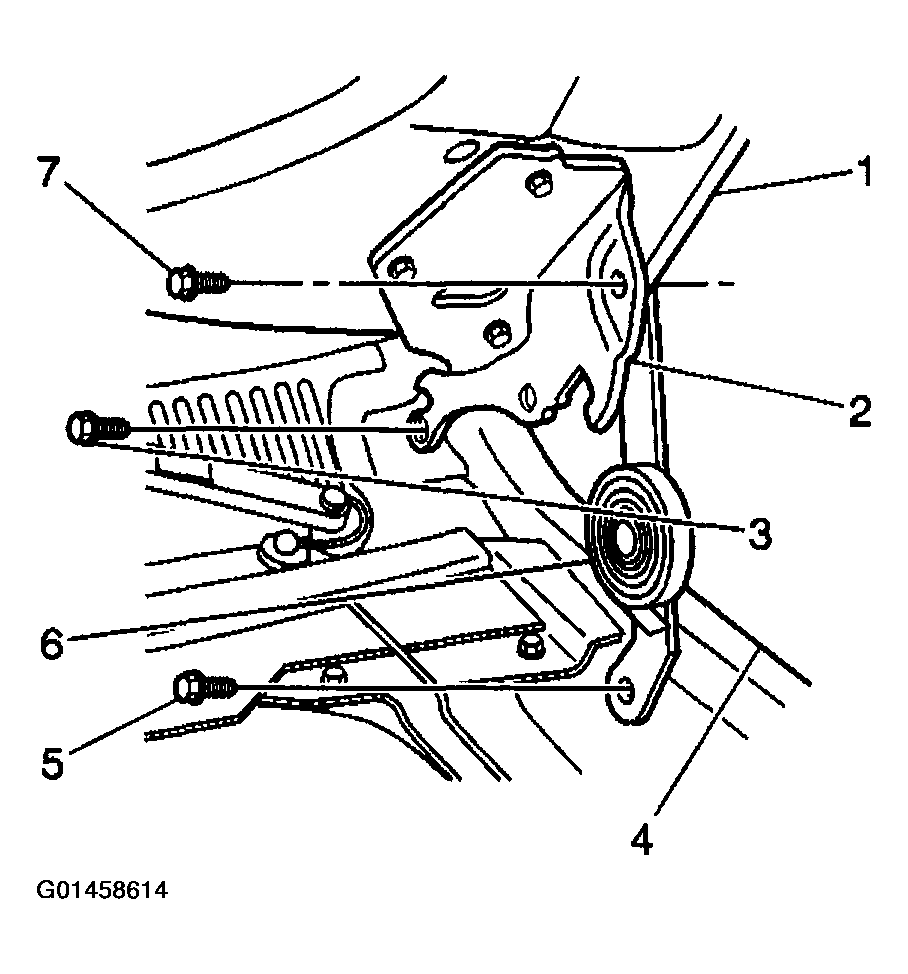

Fig 3: Removing Bolt Holding Hood Hinge
Courtesy of GENERAL MOTORS CORP.
Remove the outboard sections of the cowl vent grille panel.

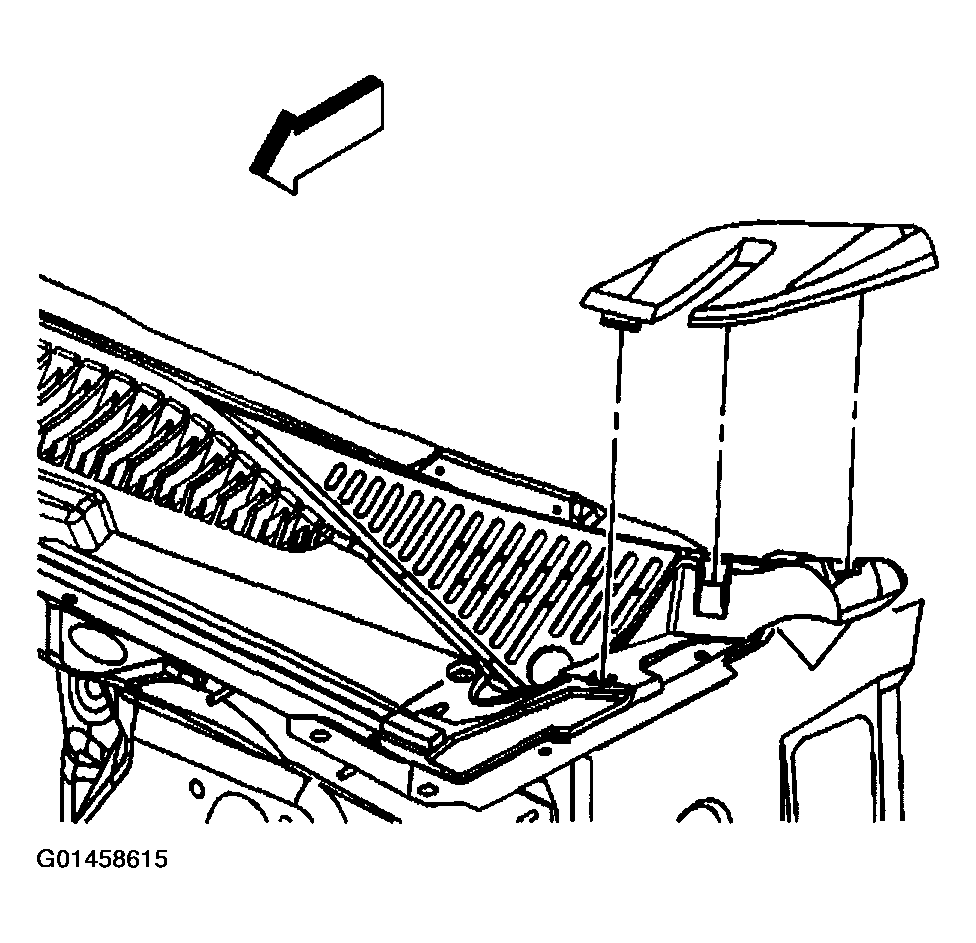

Fig 4: Removing Outboard Sections Of Cowl Vent Grille Panel
Courtesy of GENERAL MOTORS CORP.
With an assistant, remove the pivot bolt (3).
With an assistant, remove the hood from the vehicle.
Remove the hood hinge from the hood. Refer to HOOD HINGE REPLACEMENT .

Fig 5: Removing Hood Hinge From Hood
Courtesy of GENERAL MOTORS CORP.
