Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the HVAC control assembly (2) to the console (1).
Connect the electrical connectors (3) to the console (1).
Install the console (1) to the headliner.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the overhead console screw.
Tighten

Tighten the screw to 2 N.m (18 lb in).

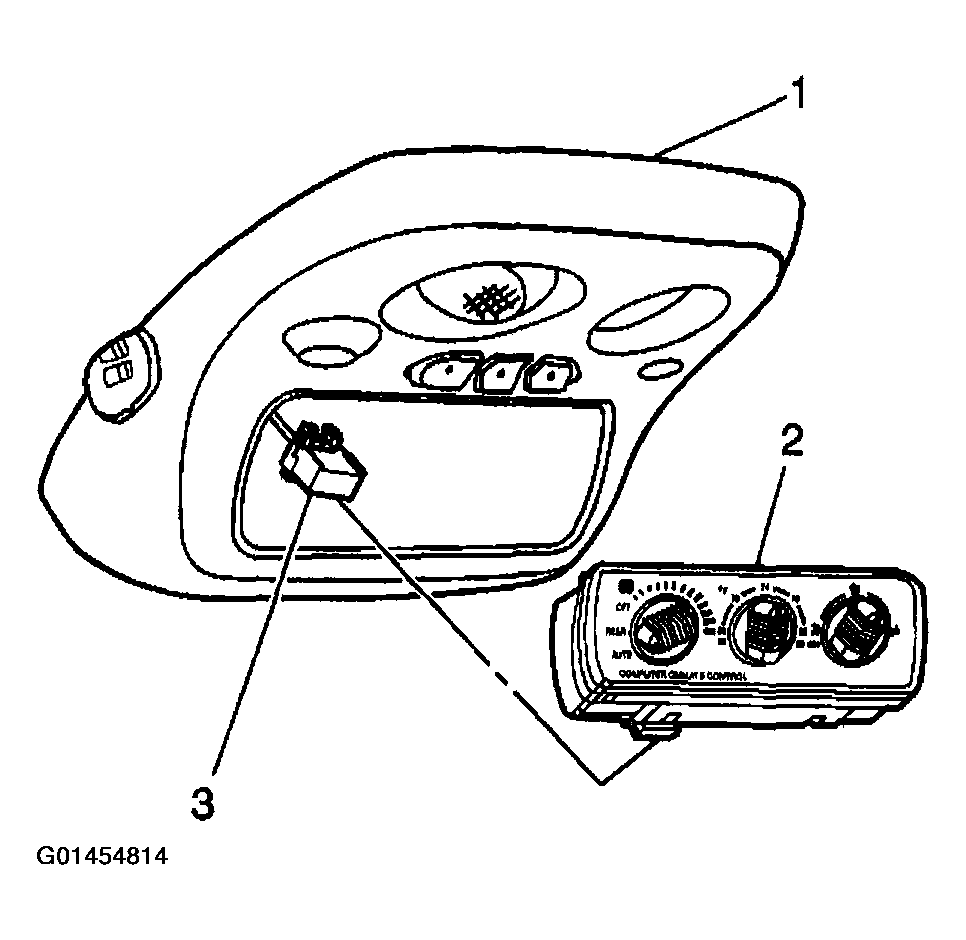

Fig 1: Removing HVAC Control Assembly - Front Auxiliary
Courtesy of GENERAL MOTORS CORP.
