Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air distribution duct. Refer to AIR DISTRIBUTOR DUCT REPLACEMENT in HEATING, VENTILATION AND AIR CONDITIONING .
Disconnect the electrical connection from the recirculation actuator (1).

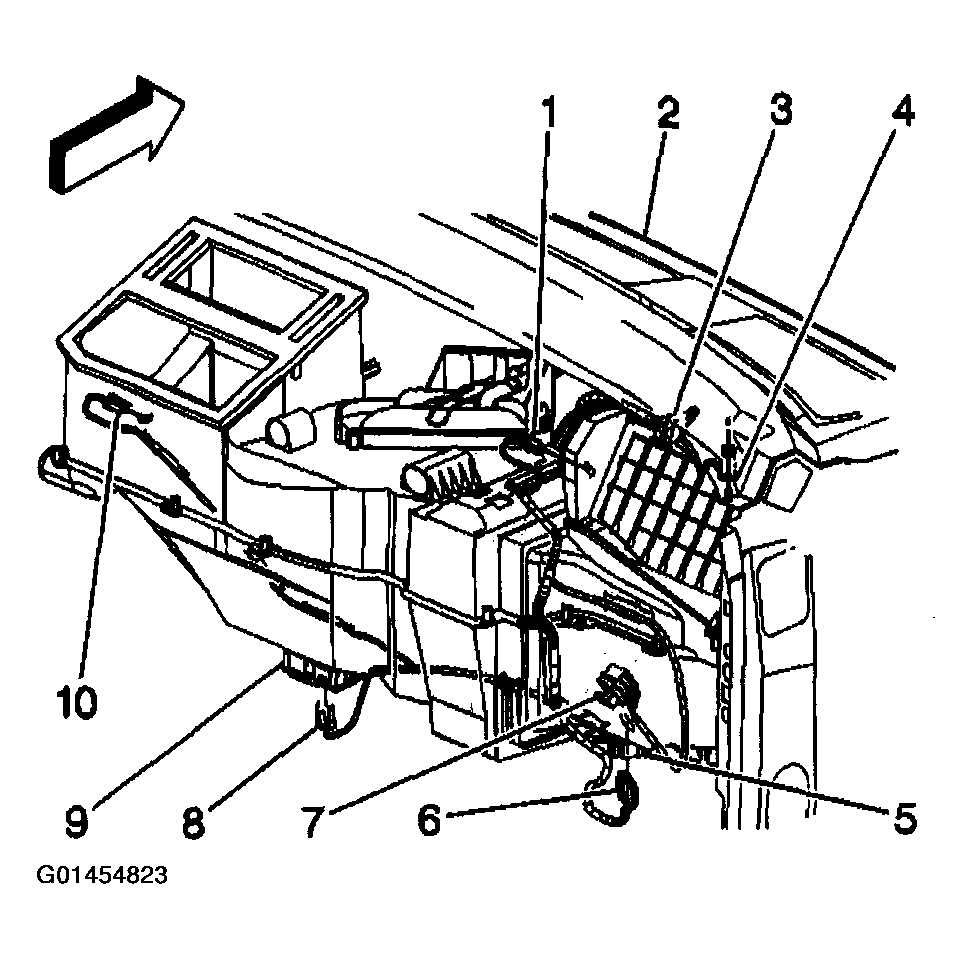

Fig 1: Disconnecting Electrical Connection From Recirculation Actuator
Courtesy of GENERAL MOTORS CORP.
Remove the recirculation actuator retaining screws.
Remove the recirculation actuator.

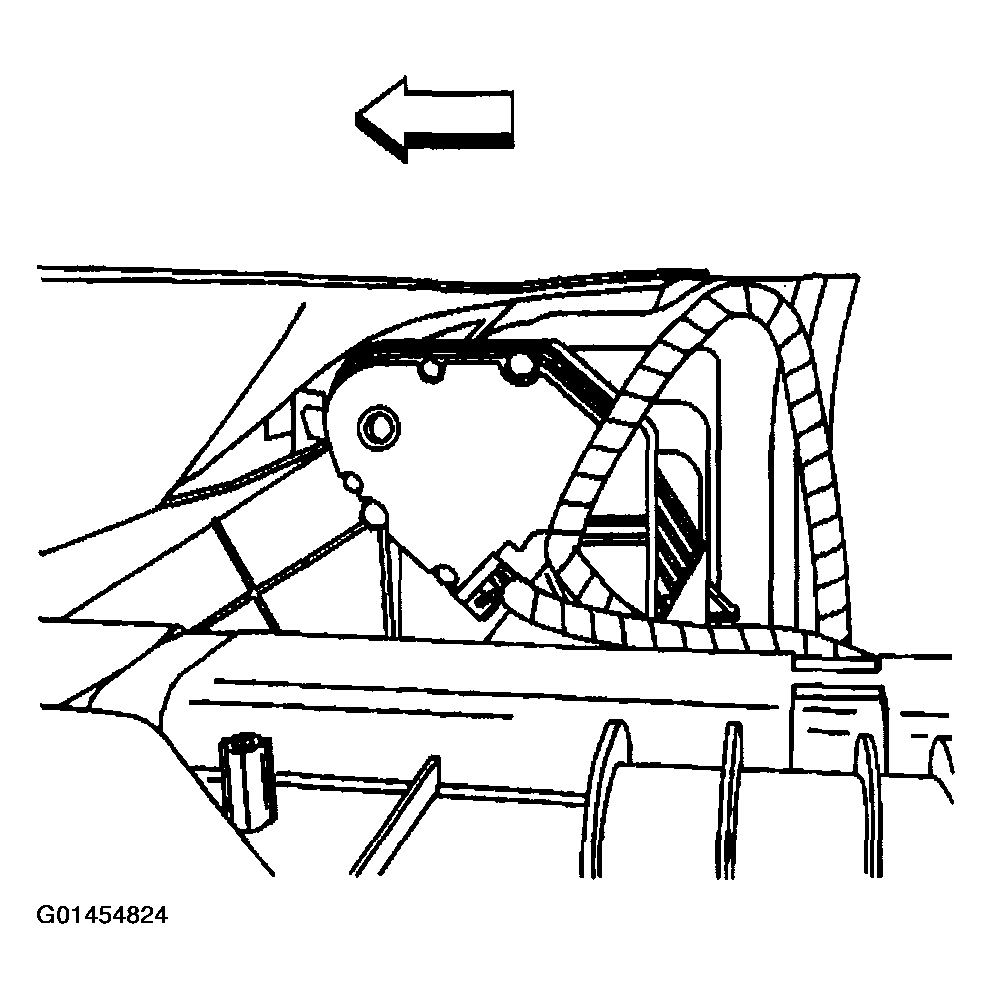

Fig 2: Removing Recirculation Actuator
Courtesy of GENERAL MOTORS CORP.
