Ground Distribution Schematics

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

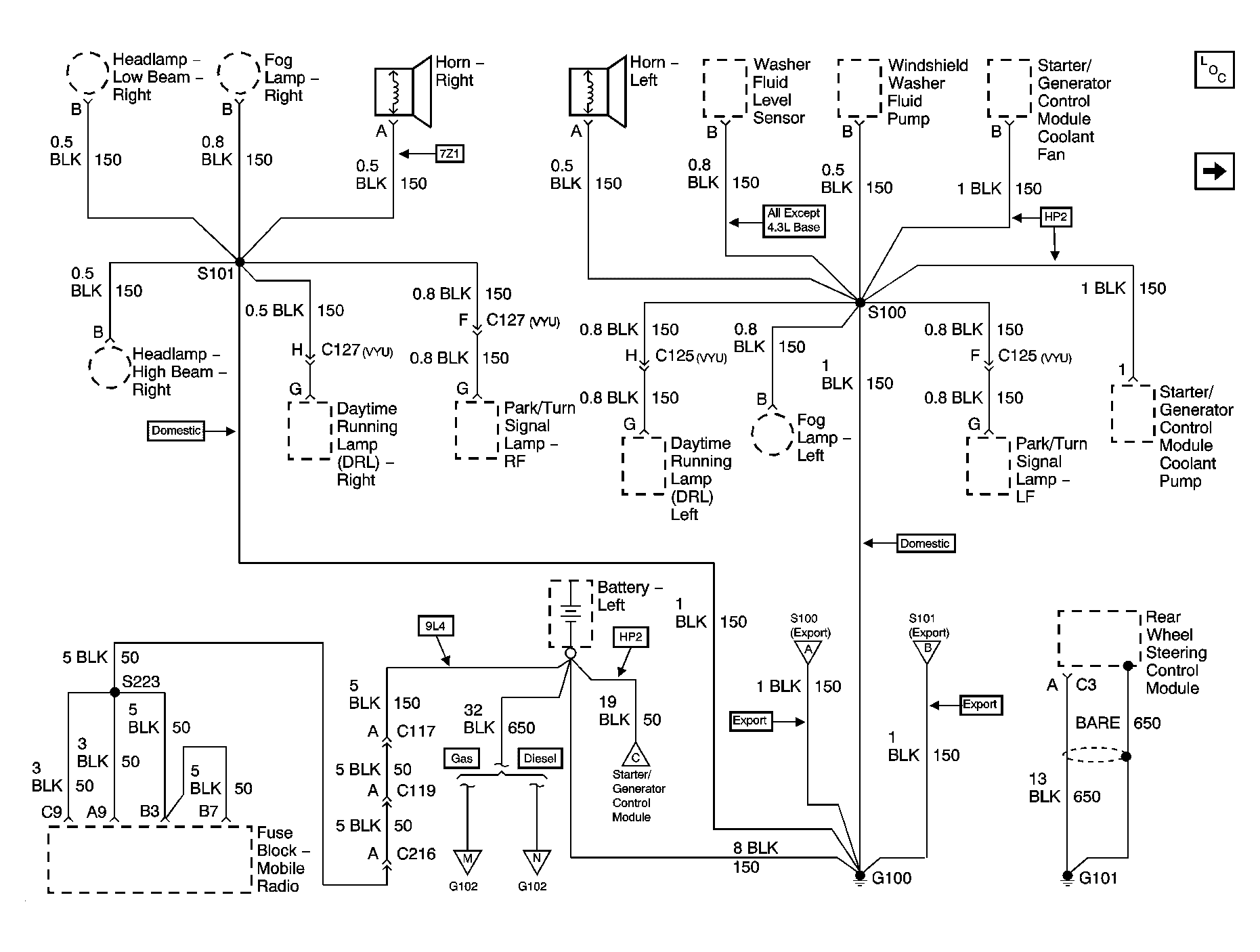

Fig 1: G100 & G101 Schematic

GM1243592

Courtesy of GENERAL MOTORS CORP.

Fig 2: S100 Schematic - Export

GM1243593

Courtesy of GENERAL MOTORS CORP.

Fig 3: S101 Schematic - Export

GM1243596

Courtesy of GENERAL MOTORS CORP.

Fig 4: G102 Schematic - Gas

GM1318408

Courtesy of GENERAL MOTORS CORP.

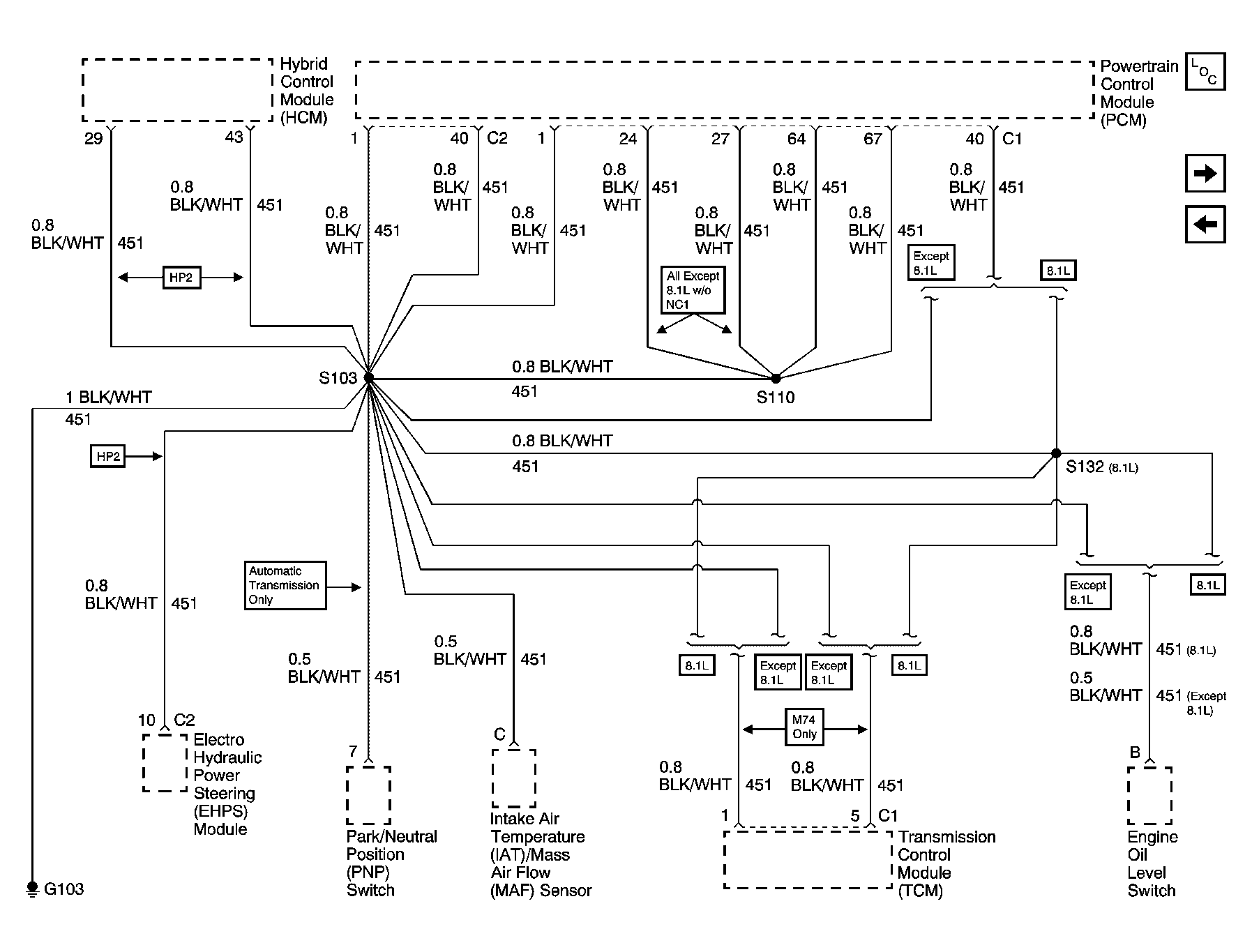

Fig 5: G103 Schematic - Gas

GM1243598

Courtesy of GENERAL MOTORS CORP.

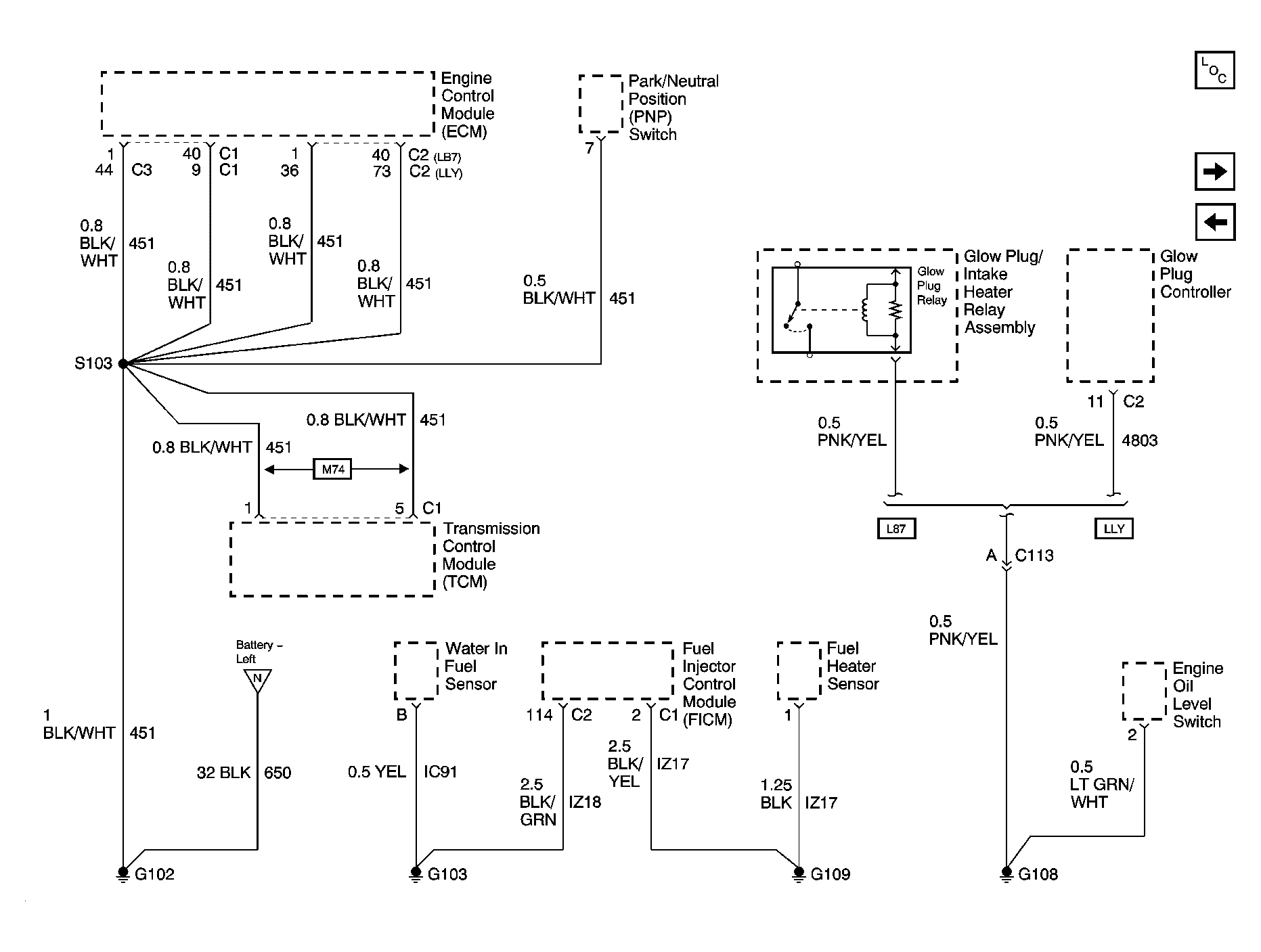

Fig 6: G102, G103, G108 and G109 Schematic - Diesel

GM1243602

Courtesy of GENERAL MOTORS CORP.

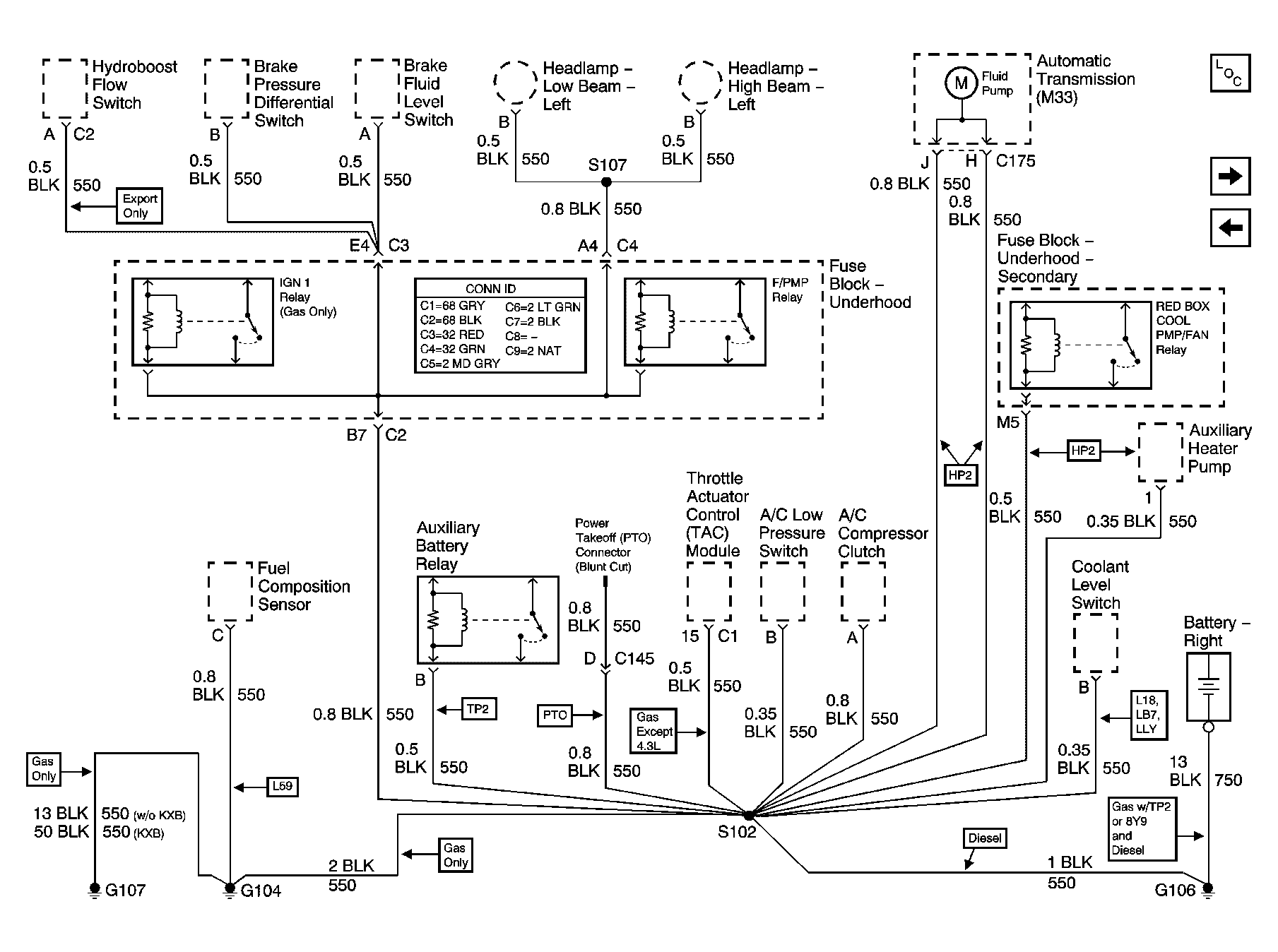

Fig 7: G104, G106, and G107 Schematic

GM1243606

Courtesy of GENERAL MOTORS CORP.

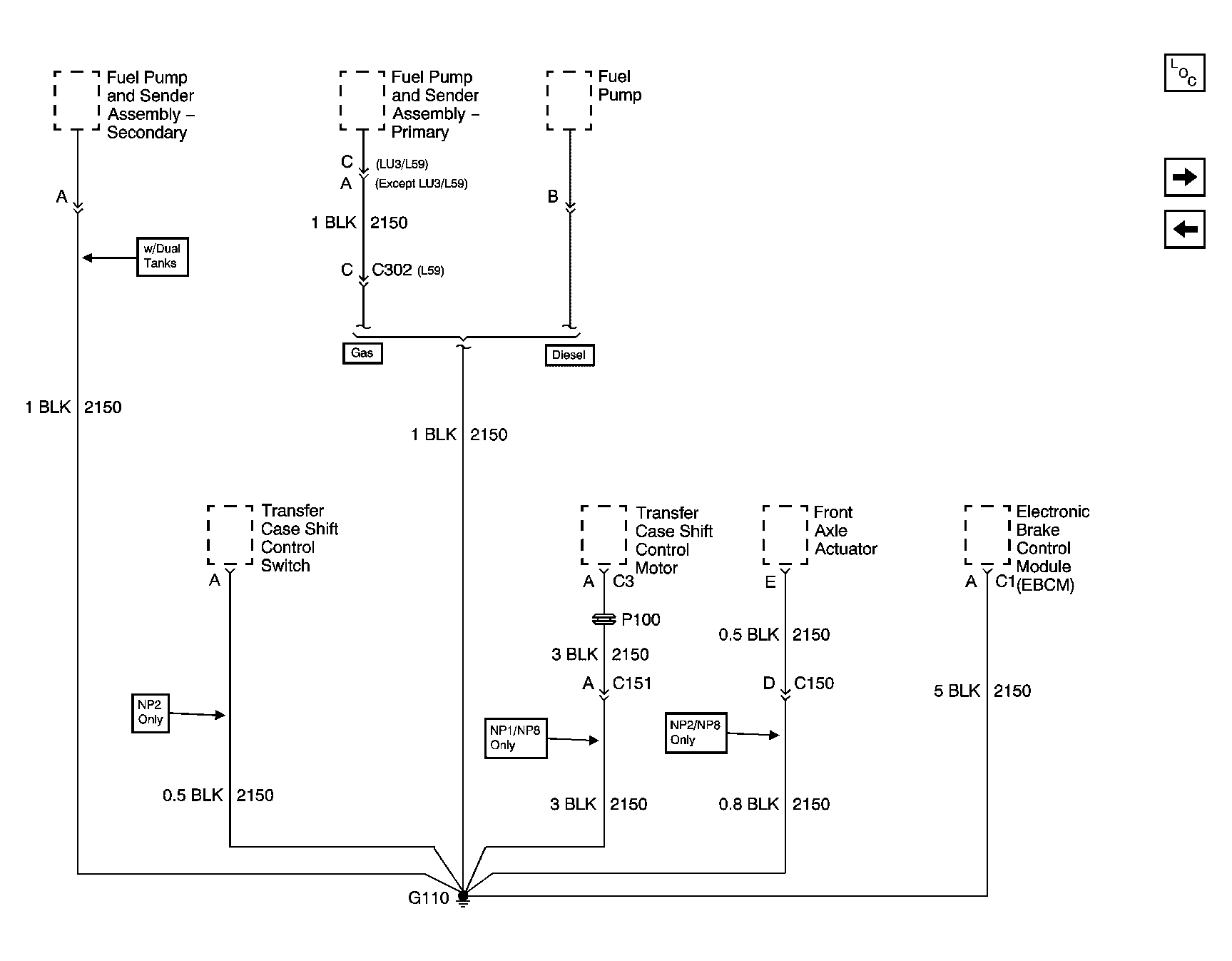

Fig 8: G110 Schematic

GM1243608

Courtesy of GENERAL MOTORS CORP.

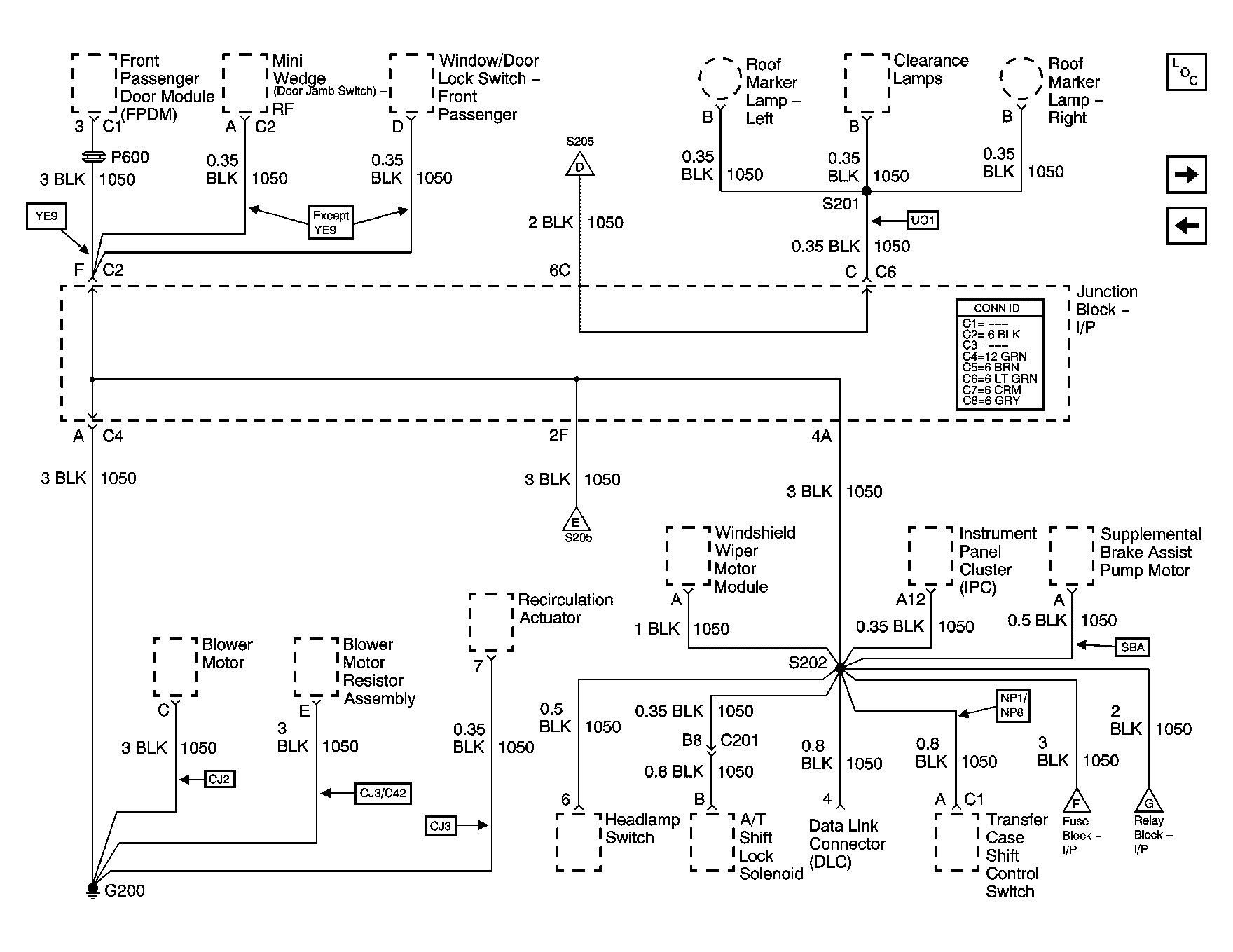

Fig 9: G200 Schematic - 1 Of 3

GM1243610

Courtesy of GENERAL MOTORS CORP.

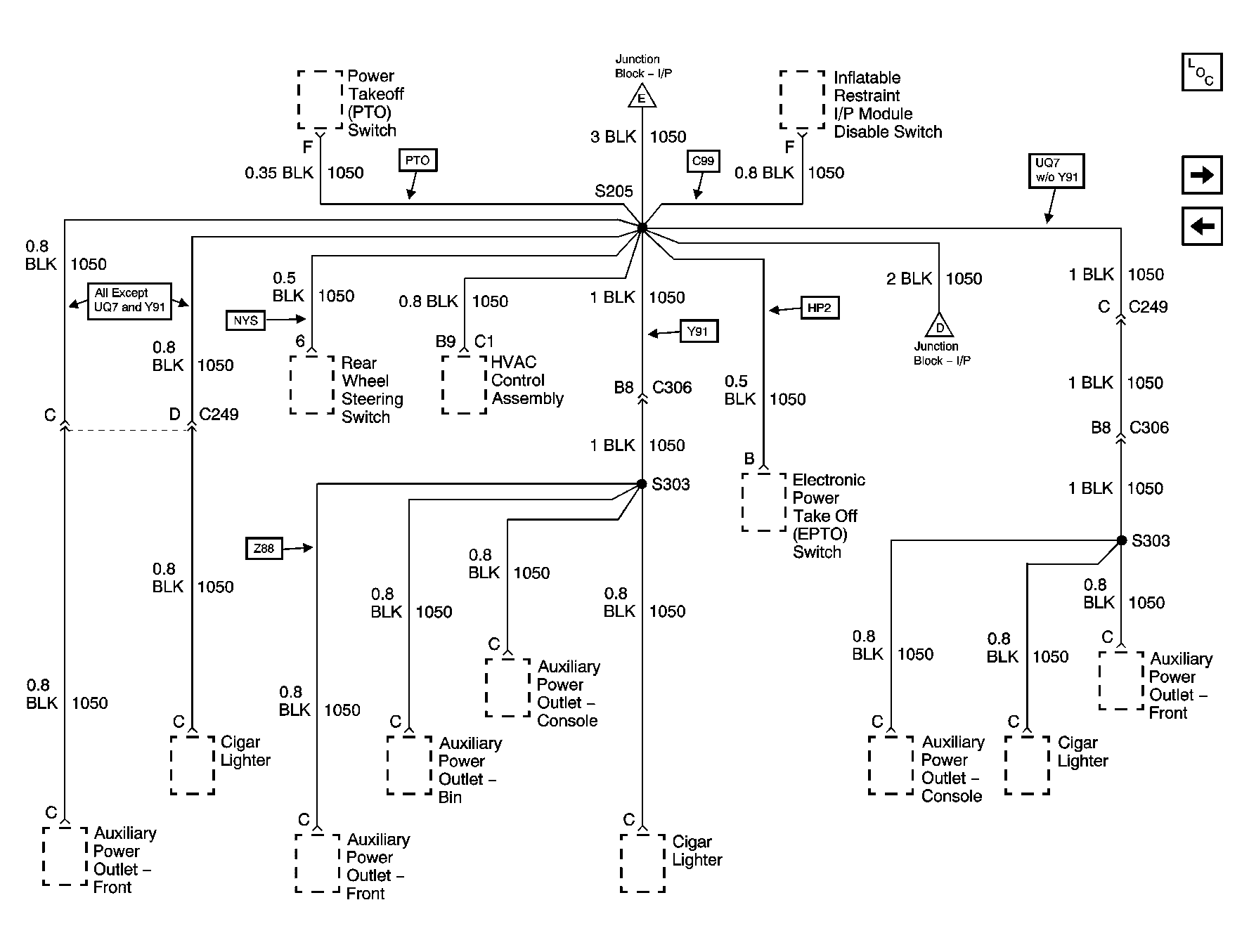

Fig 10: G200 Schematic - 2 Of 3

GM1243614

Courtesy of GENERAL MOTORS CORP.

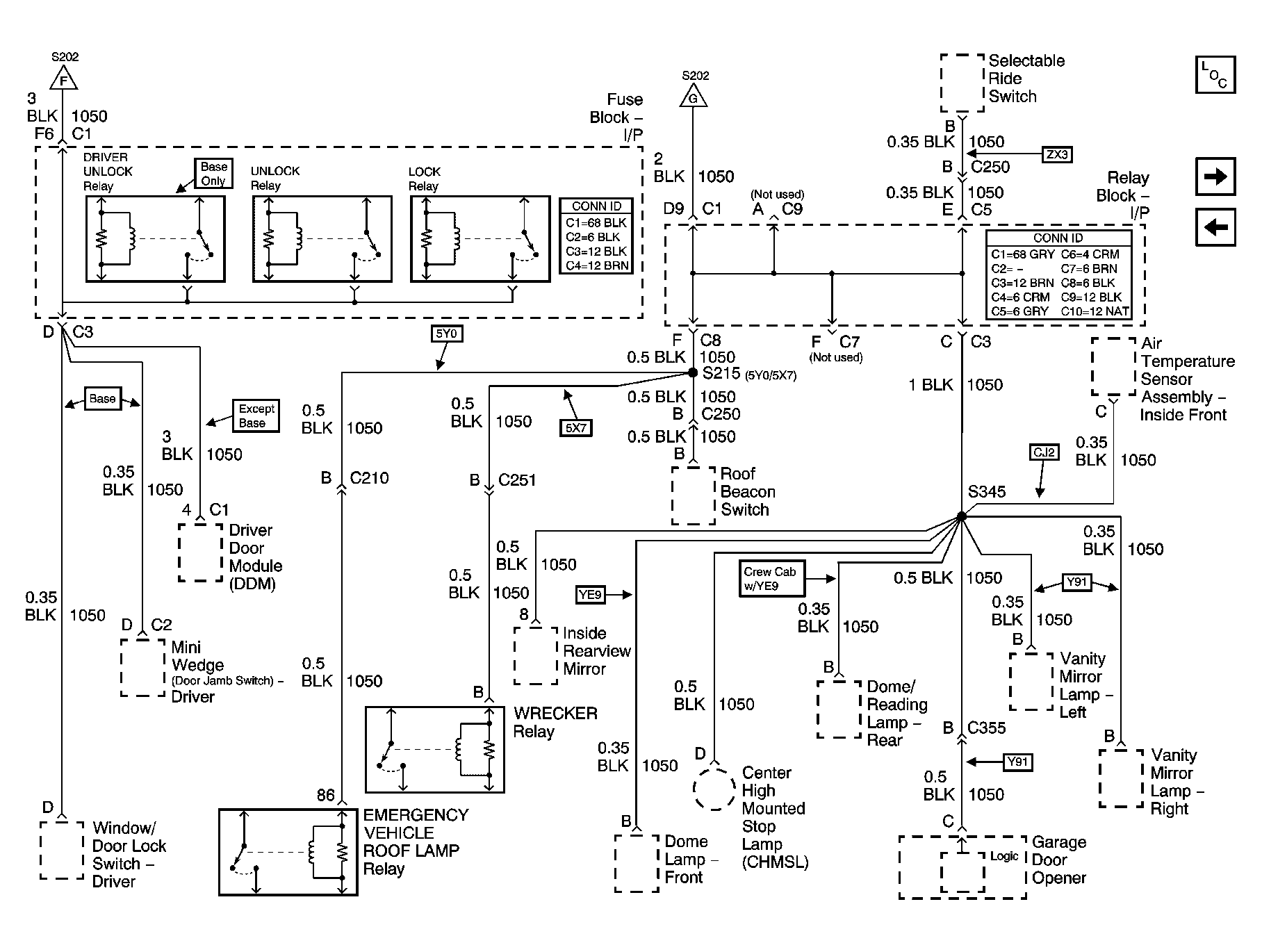

Fig 11: G200 Schematic - 3 Of 3

GM1243618

Courtesy of GENERAL MOTORS CORP.

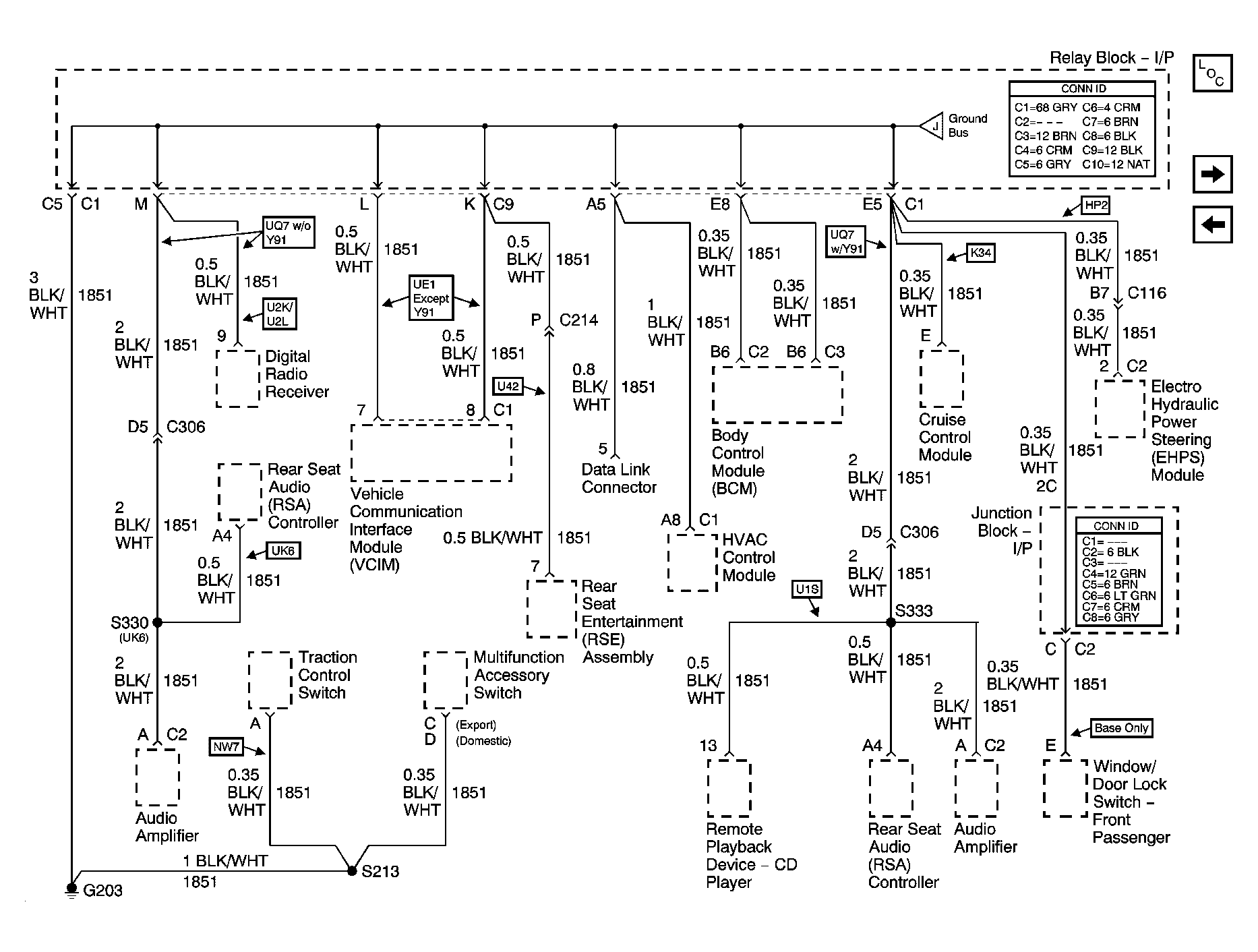

Fig 12: G203 Schematic - 1 Of 3

GM1243622

Courtesy of GENERAL MOTORS CORP.

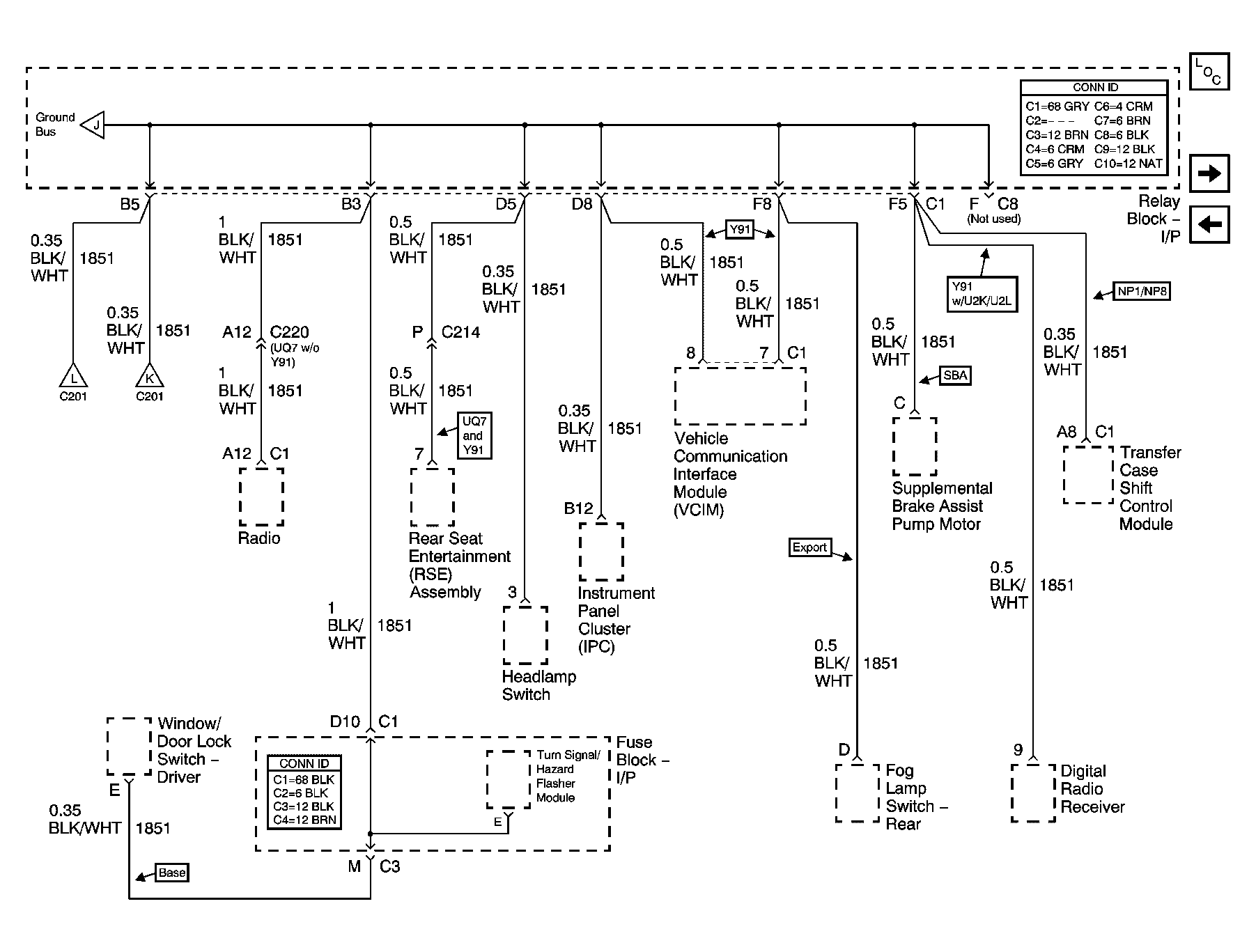

Fig 13: G203 Schematic - 2 Of 3

GM1243628

Courtesy of GENERAL MOTORS CORP.

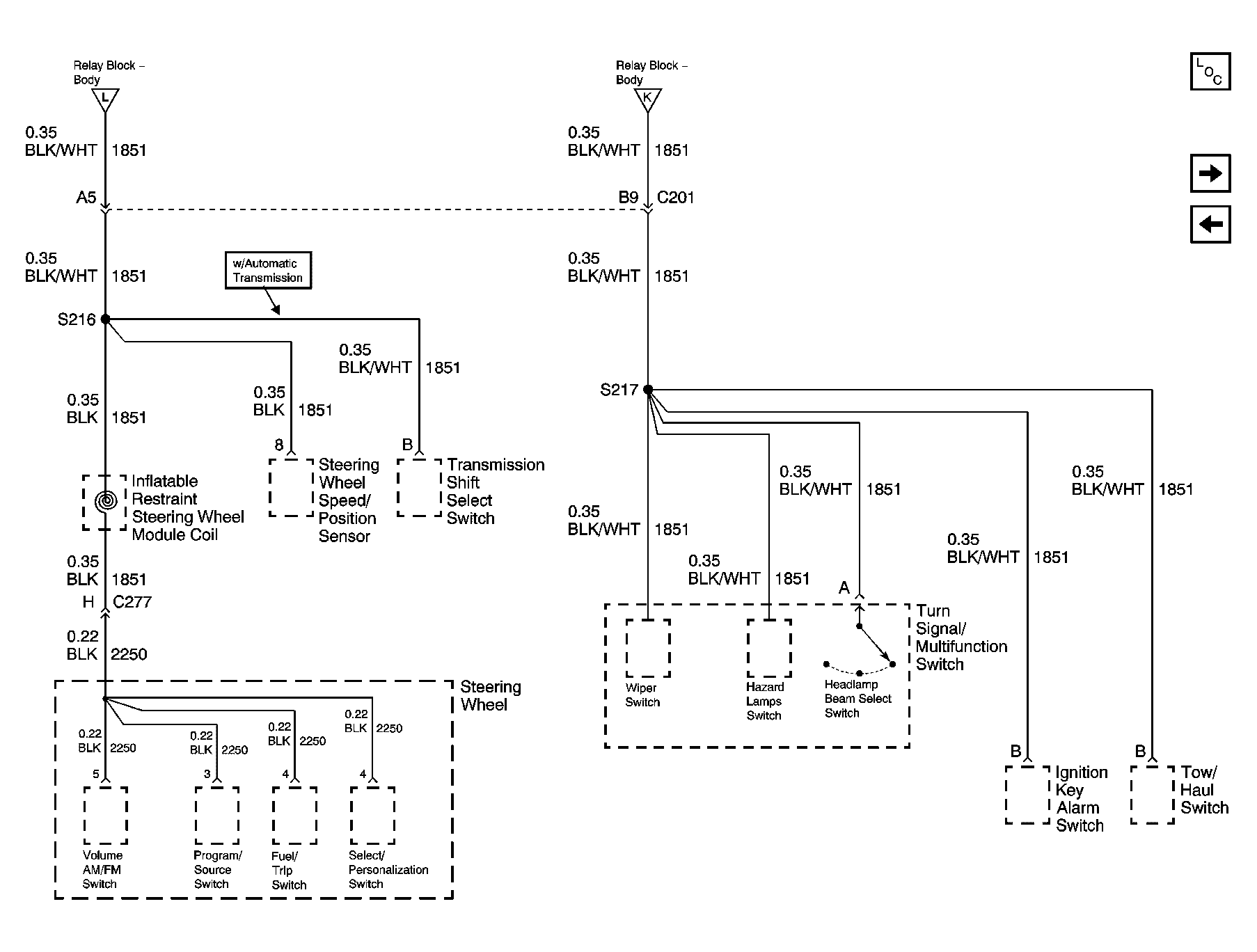

Fig 14: G203 Schematic - 3 Of 3

GM1243639

Courtesy of GENERAL MOTORS CORP.

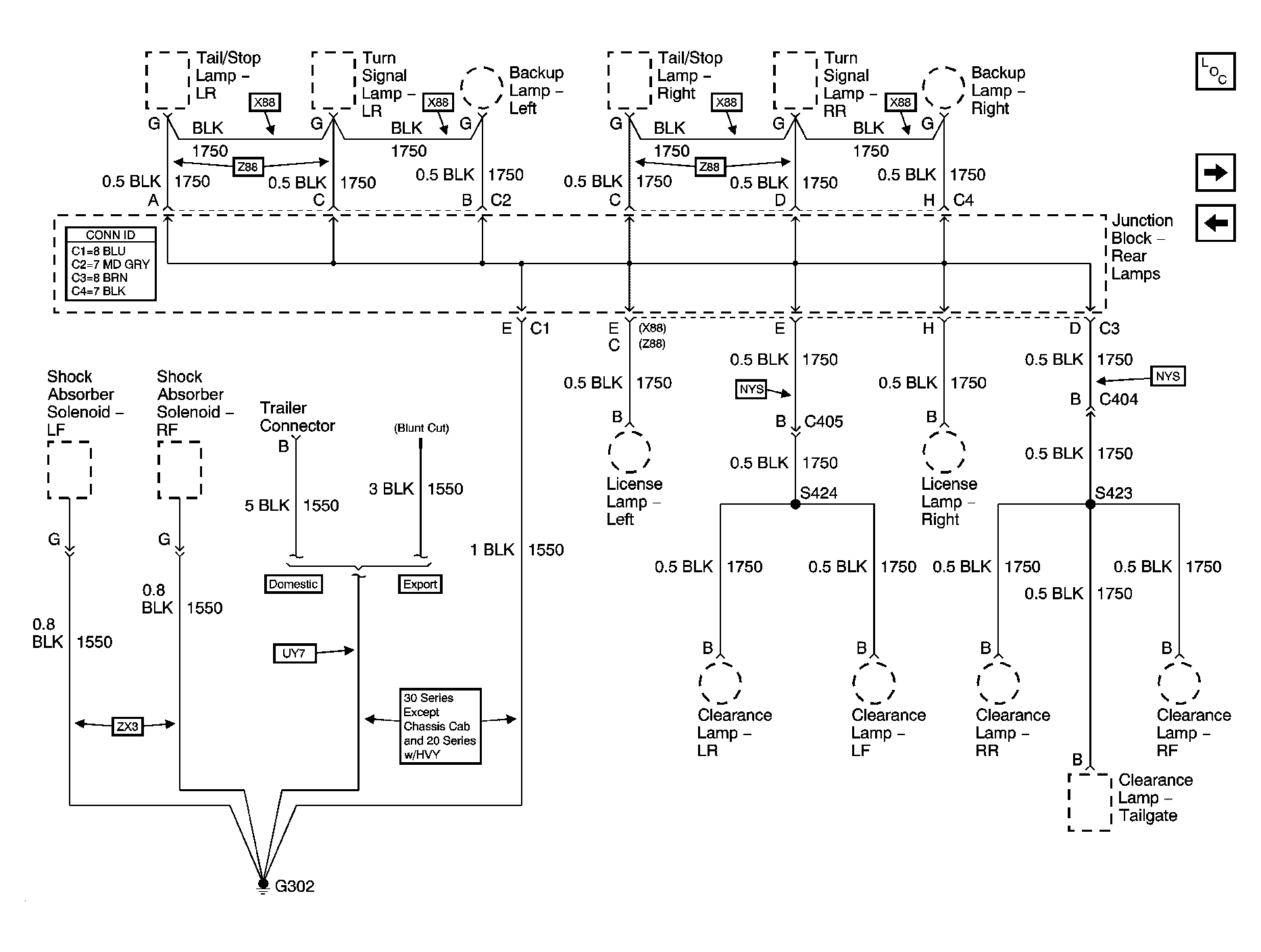

Fig 15: G302 Schematic

GM1243641

Courtesy of GENERAL MOTORS CORP.

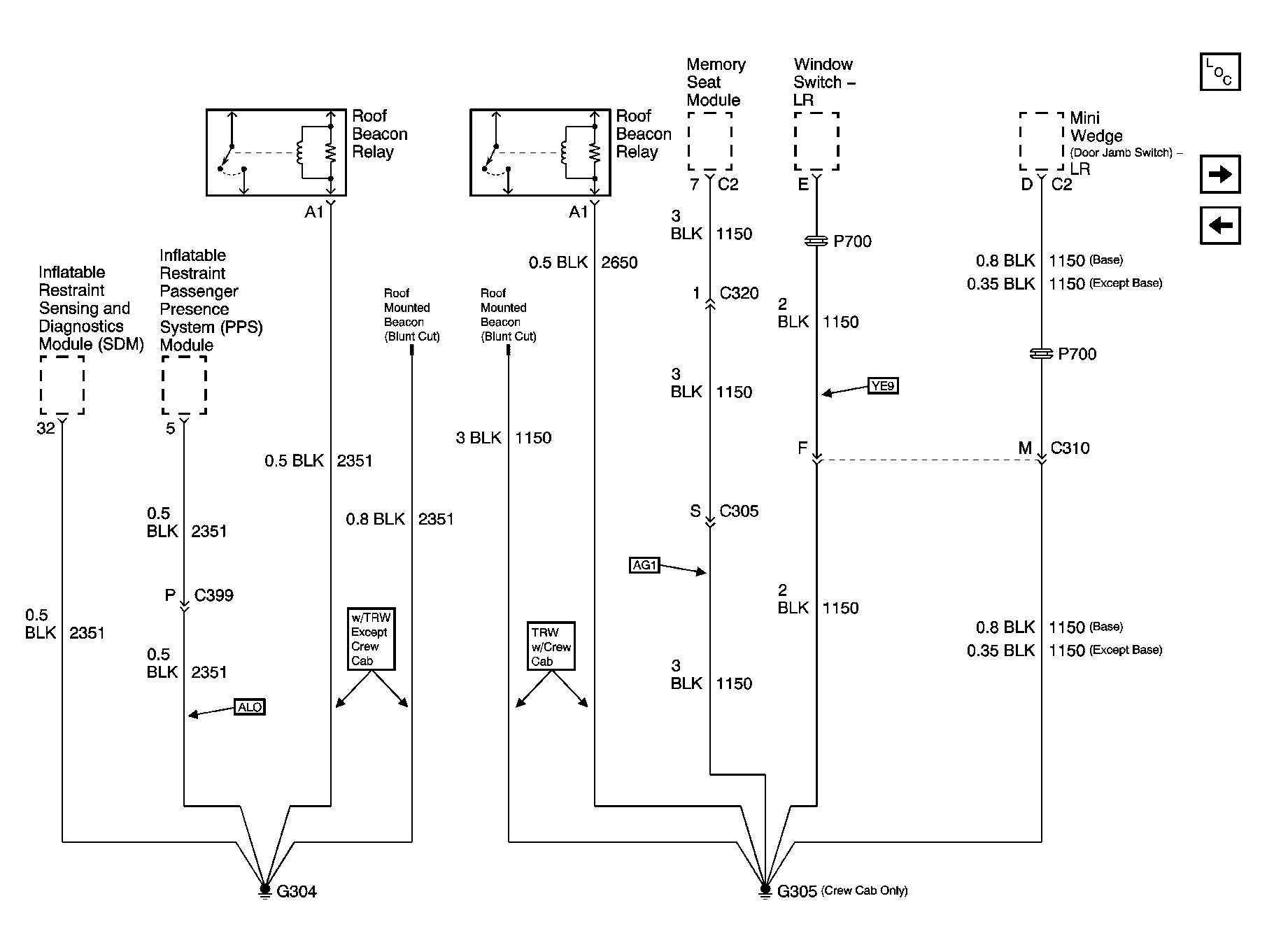

Fig 16: G304 & G305 Schematic

GM1243644

Courtesy of GENERAL MOTORS CORP.

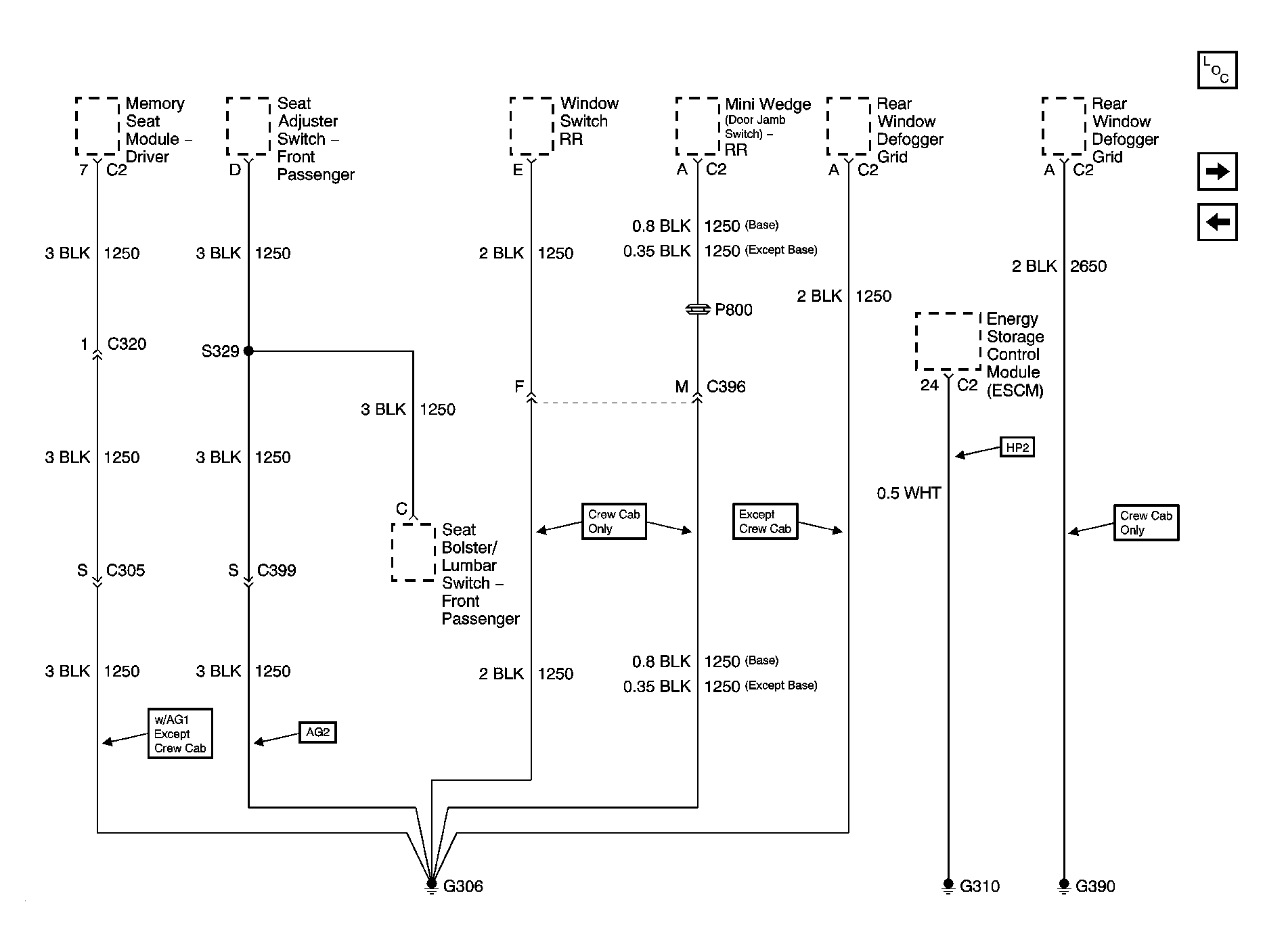

Fig 17: G306, G310, & G390 Schematic

GM1243648

Courtesy of GENERAL MOTORS CORP.

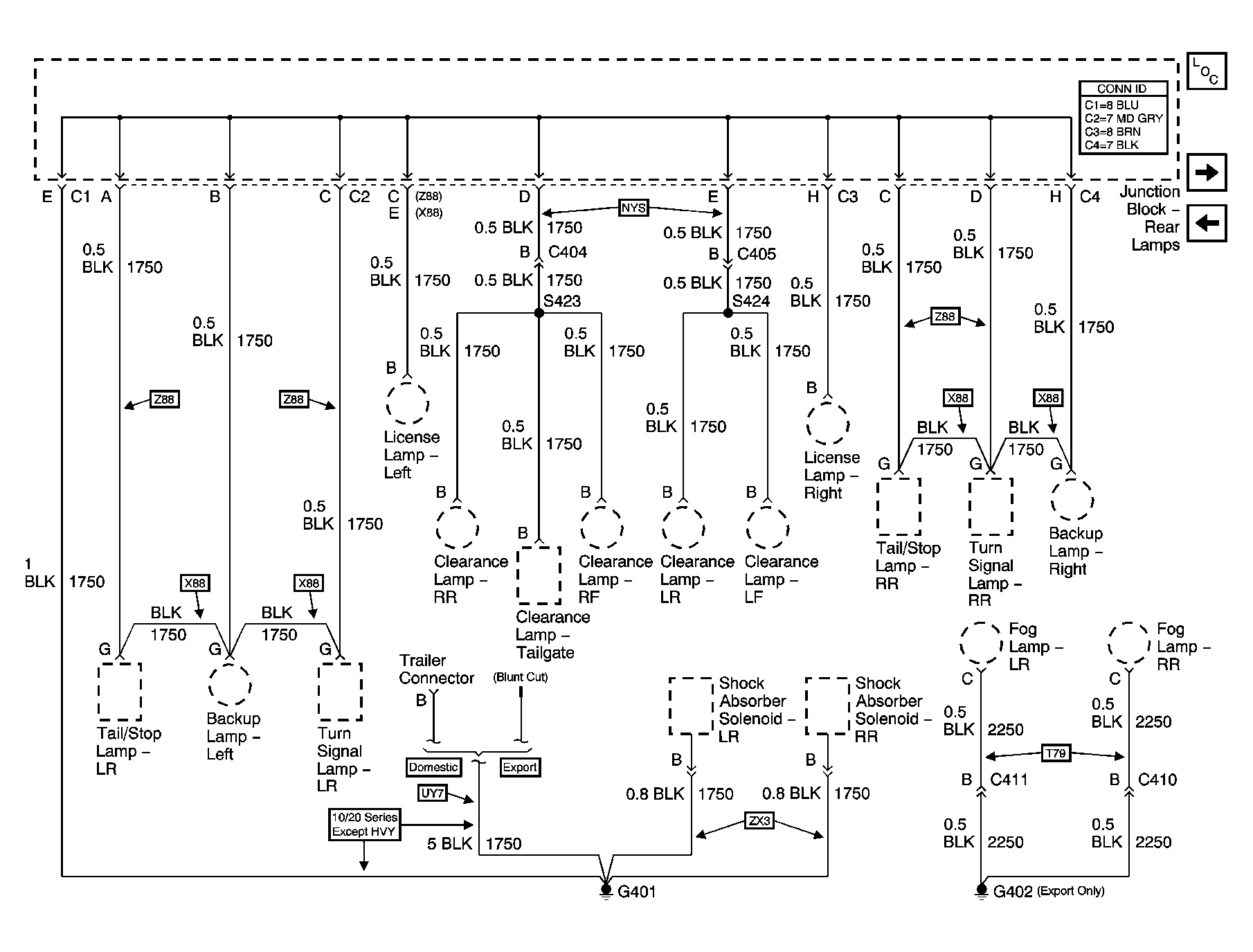

Fig 18: G401 & G402 Schematic

GM1243654

Courtesy of GENERAL MOTORS CORP.

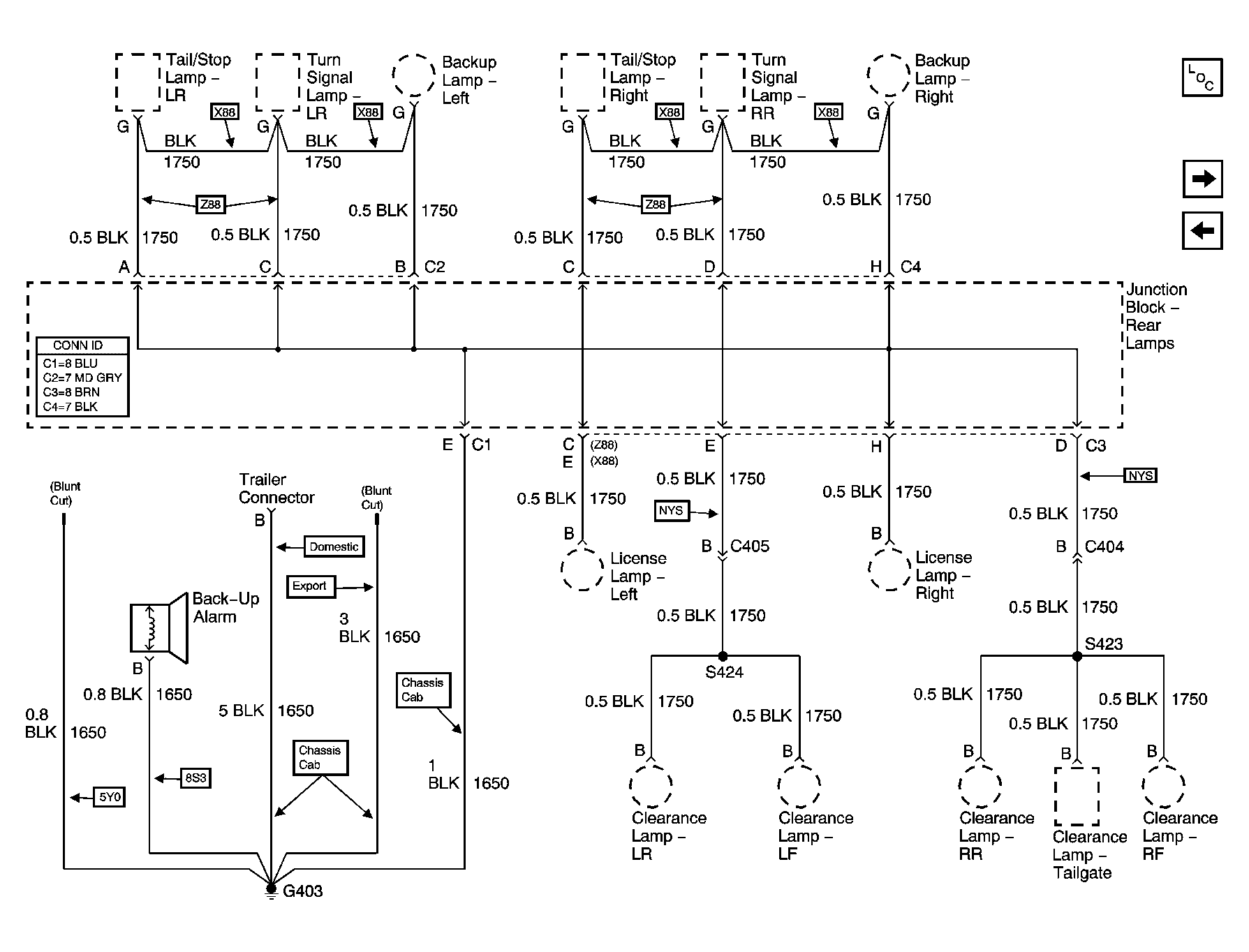

Fig 19: G403 Schematic

GM1243656

Courtesy of GENERAL MOTORS CORP.

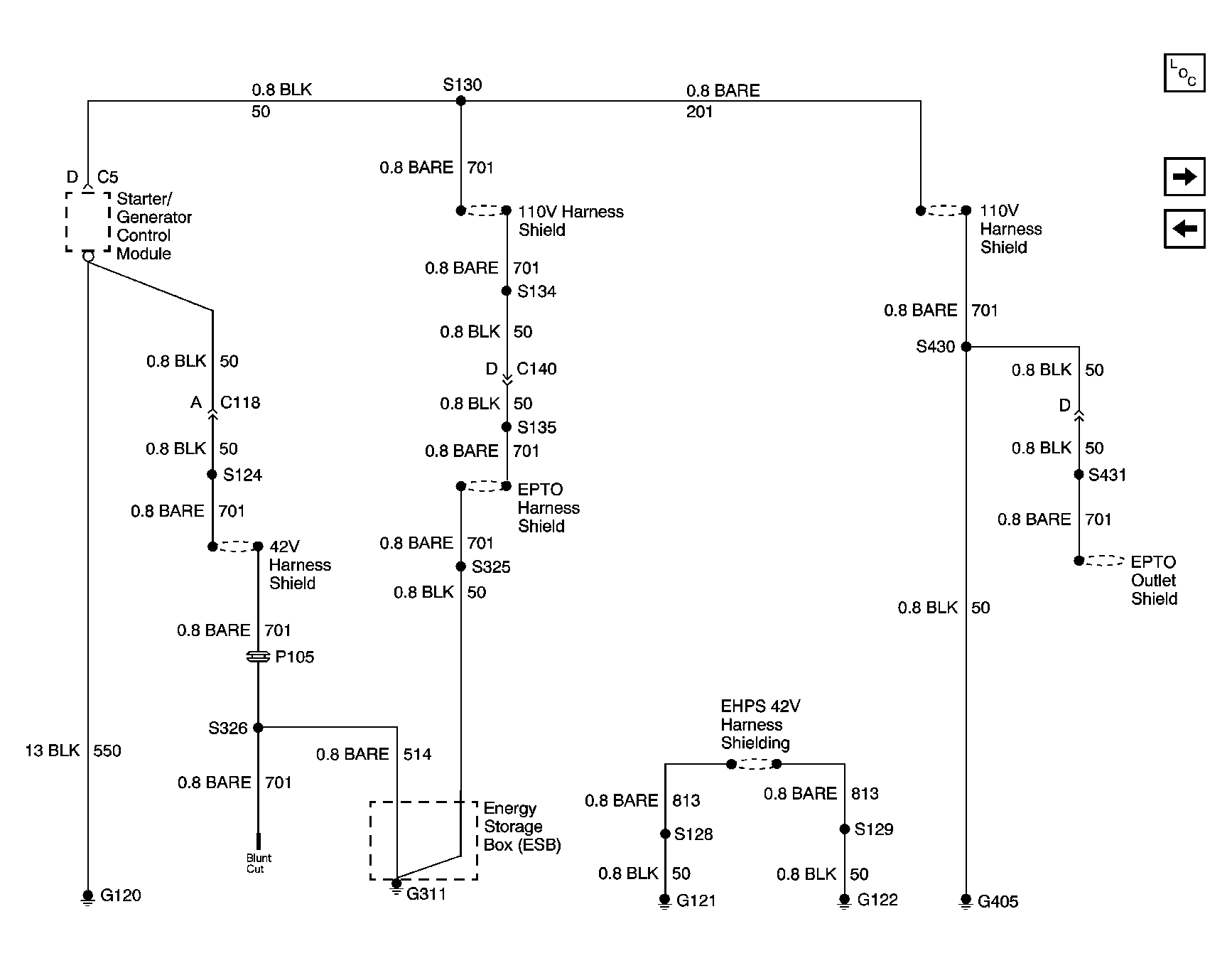

Fig 20: Hybrid Ground Schematic - 1 Of 2

GM1318411

Courtesy of GENERAL MOTORS CORP.

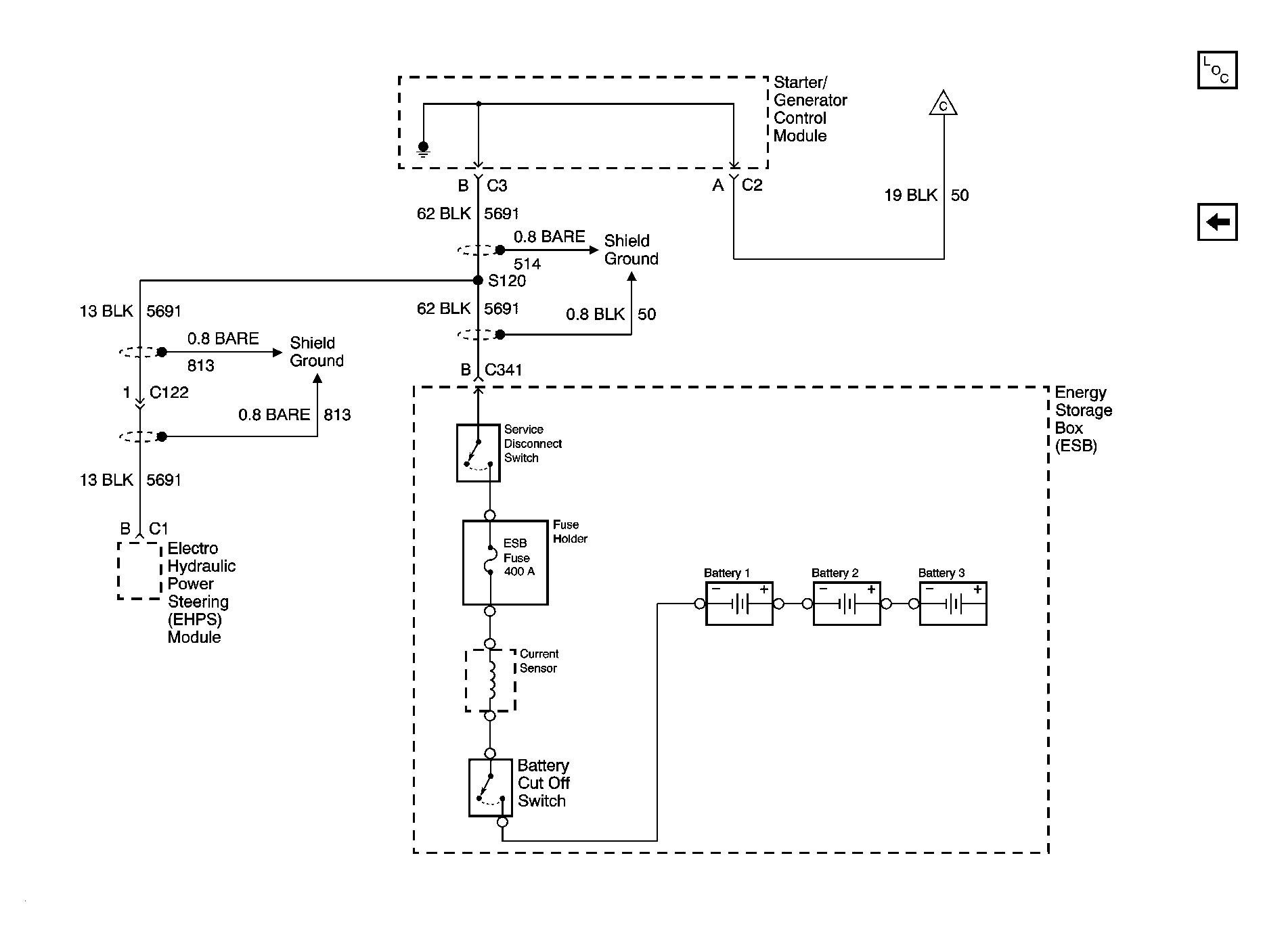

Fig 21: Hybrid Ground Schematic - 2 Of 2

GM1318413

Courtesy of GENERAL MOTORS CORP.
