HVAC Component Views
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Turn Signal Multifunction Switch |
| 2 | Inflatable Restraint Steering Wheel Module Coil |
| 3 | Instrument Panel Cluster (IPC) |
| 4 | Tow/Haul Switch |
| 5 | Driver Information Center (DIC) Switch |
| 6 | Ambient Light/Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (CJ3) |
| 7 | HVAC Control Module |
| 8 | Auxiliary Power Outlet - Front 2 |
| 9 | I/P Multifunction Switch Assembly |
| 10 | Auxiliary Power Outlet - Front 1 |
| 11 | Radio |
| 12 | Transfer Case Shift Control Switch |
| 13 | Headlamp and Panel Dimmer Switch |
| Callout | Component Name |
|---|---|
| 1 | Air Temperature Actuator - Right |
| 2 | Recirculation Actuator |
| 3 | Junction Block - Right I/P C4 |
| 4 | G200 |
| 5 | Blower Motor |
| 6 | Air Temperature Sensor - Lower Right (CJ2) |
| 7 | Air Temperature Actuator - Left |
| 8 | Blower Motor Control Module |
| 9 | Air Temperature Sensor - Lower Left (CJ2) |
| 10 | Mode Actuator |

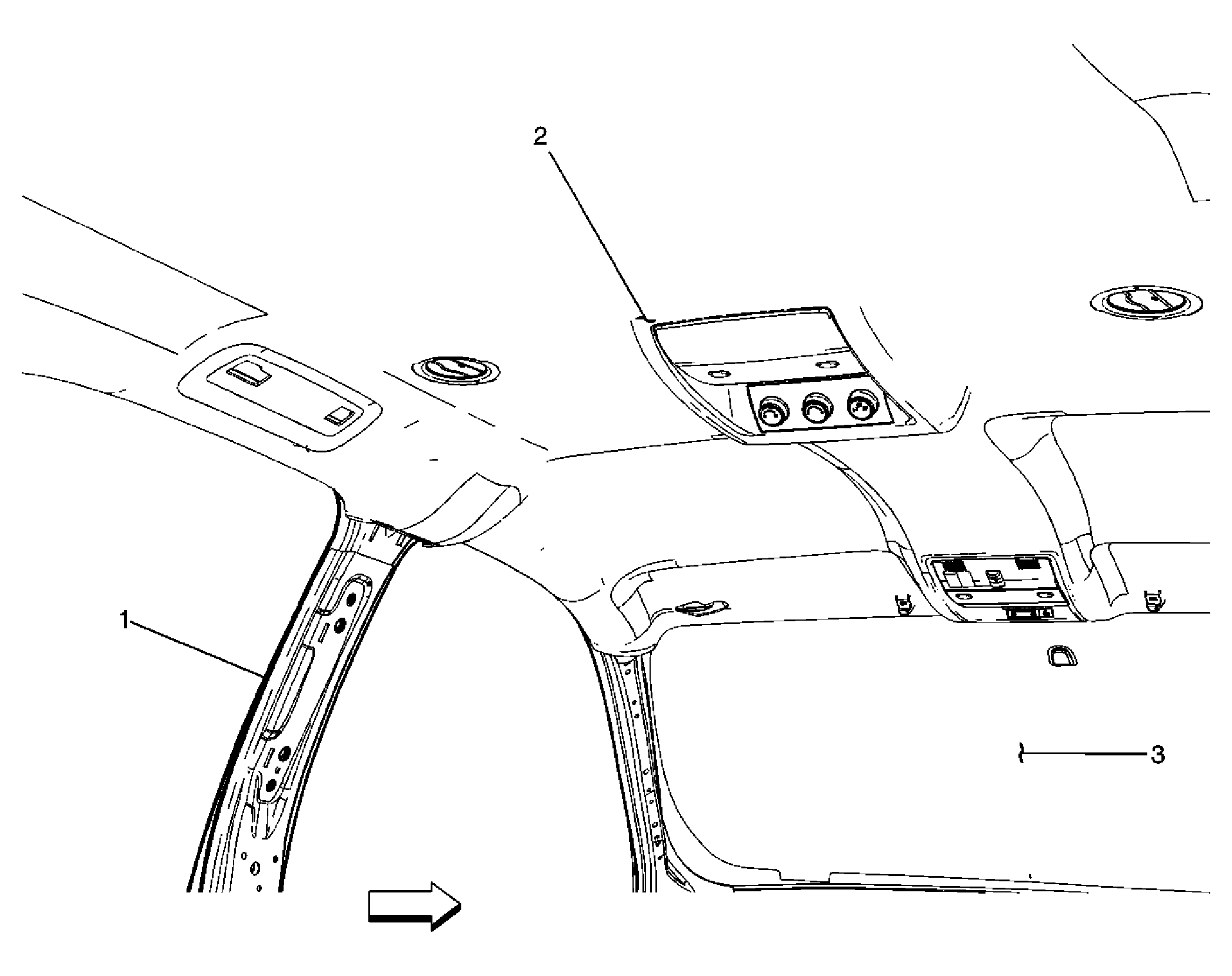

| Callout | Component Name |
|---|---|
| 1 | Left B-Pillar |
| 2 | HVAC Control Module - Auxiliary (CJ3) |
| 3 | Windshield |
