Radiator Outlet Hose Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

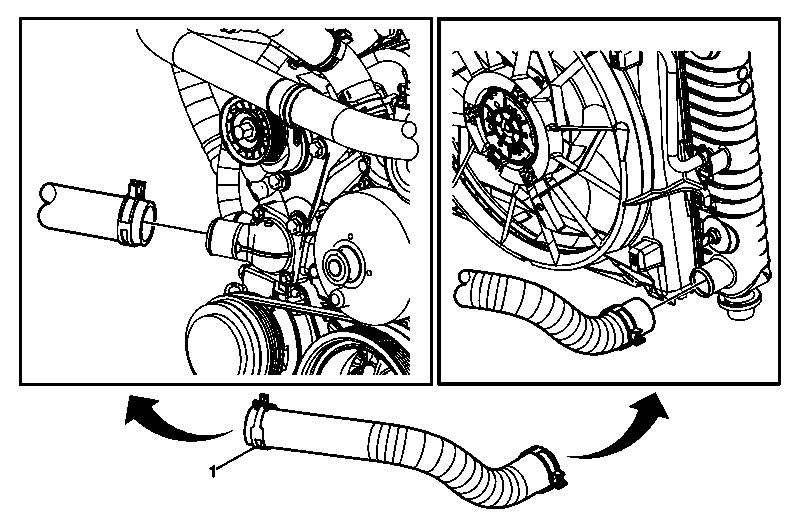

Fig 1: View Of Radiator Outlet Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Draining and Filling Cooling System . Remove the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement . Remove air cleaner housing. Refer to Air Cleaner Assembly Replacement
1	Radiator Outlet Hose Tip: Using J 38185 reposition the radiator outlet hose clamps. See Special Tools .

Callout

Component Name

Preliminary Procedure

Drain the cooling system. Refer to Draining and Filling Cooling System .
Remove the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
Remove air cleaner housing. Refer to Air Cleaner Assembly Replacement

Radiator Outlet Hose
Tip: Using J 38185 reposition the radiator outlet hose clamps. See Special Tools .
