Shock, Shock Component, and/or Spring Replacement (ESC)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

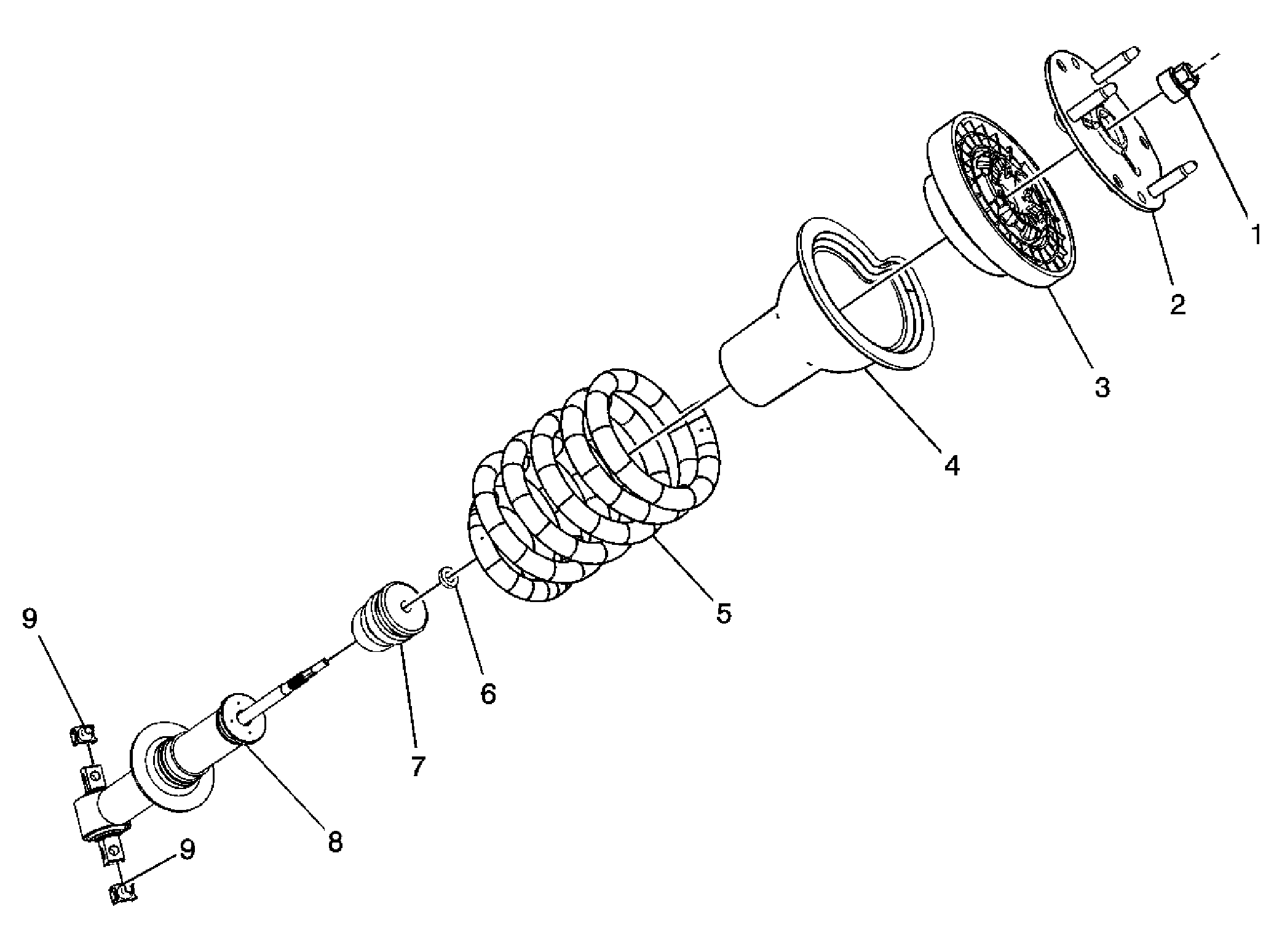

Fig 1: View Of Shock Absorber Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the shock module. Refer to Shock Module Replacement .
1	Tenon Nut NOTE: Do not allow the absorber rod to rotate during disassembly/reassembly. Use hand tools to keep the absorber rod from rotating. If air tools are used, and the rod is allowed to rotate, damage to the absorber may occur. NOTE: Refer to Fastener Notice . Tighten: 50 N.m (37 lb ft). Tip: Use Snap On® tool 18 mm offset crow foot wrench P/N ANM18, or equivalent. Hold the tenon shaft end with a wrench while removing the nut.
2	Mount Tip: For proper alignment during assembly, make sure one of the mount studs is aligned with the centerline of the shock absorber dog bone.
3	Seat
4	Insulator
5	Spring Tip: The use of J 45400 Strut Spring Compressor or equivalent, is required. See Special Tools .
6	Reinforcement
7	Jounce Bumper
8	Absorber
9	Clip Nut (Qty: 2) Tip: The use of air tools on the clip nuts during installation is not recommended.
