Installation Procedure

  1. Install the power steering fluid cooler to the vehicle.
    2. Fig 1: View Of Power Steering Cooler & Bolts
    GM686121Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the power steering fluid cooler bolts (2) to the power steering fluid cooler (1).

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

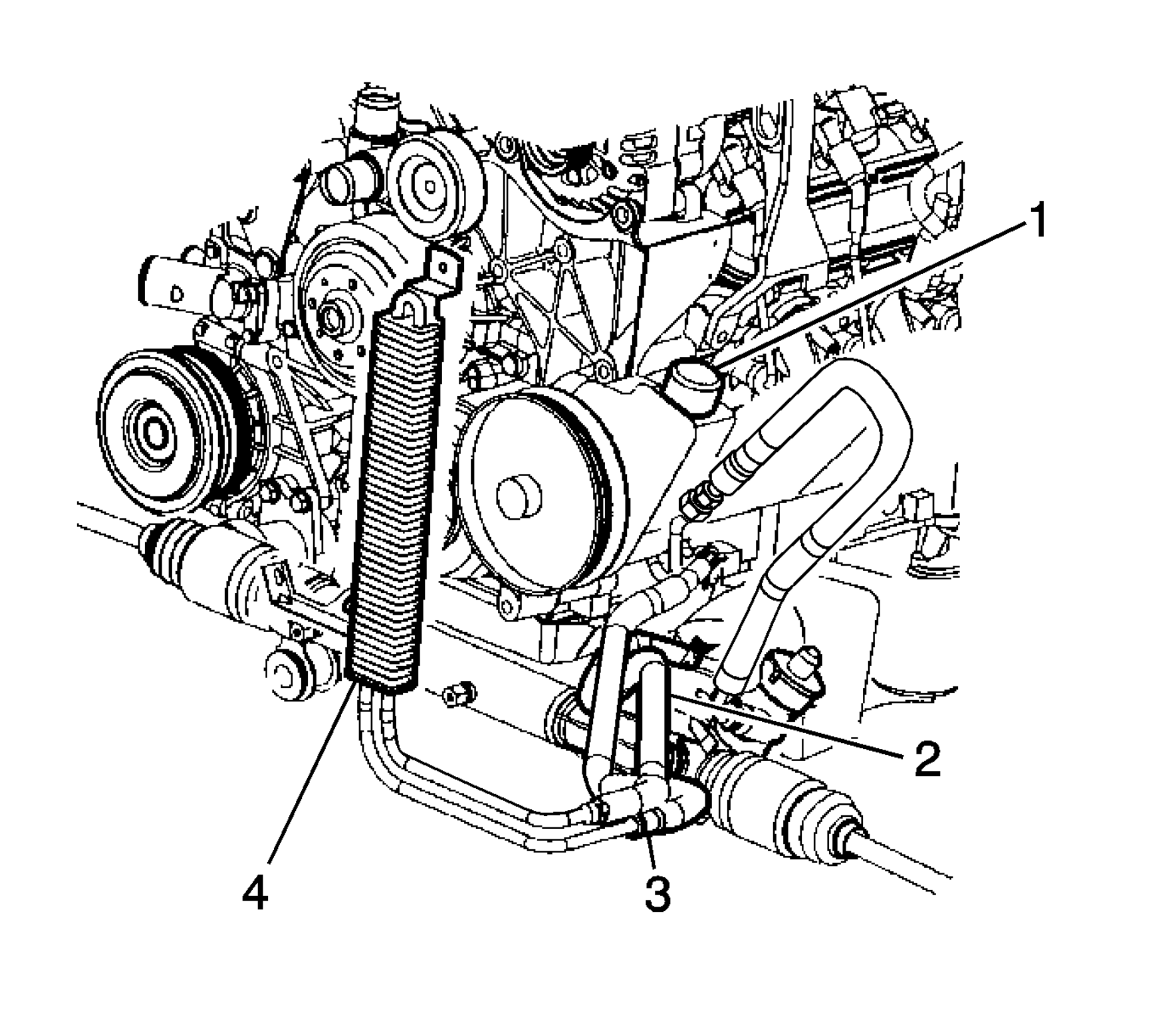

    3. Fig 2: View Of Power Steering Pump & Components
    GM1861214Courtesy of GENERAL MOTORS COMPANY
  3. Connect the power steering fluid cooler hose (3) to the power steering pump (1).
  4. Connect the power steering gear outlet hose (2) to the power steering fluid cooler (4).
  5. Clean any excess fluid from the vehicle and remove the drain pans.
  6. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
  7. Install the radiator grille reinforcement support, if equipped. Refer to Radiator Grille Reinforcement Support Replacement .
  8. Install the fascia grille. Refer to Fascia Grille Replacement (Z71) , Fascia Grille Replacement (Escalade) , Fascia Grille Replacement (GMC Denali XL) , Fascia Grille Replacement (Suburban, Tahoe) , Fascia Grille Replacement (GMC Yukon Hybrid 2 Mode) , Fascia Grille Replacement (Yukon) .
