Stub Shaft Housing Replacement
Stub Shaft Housing Replacement

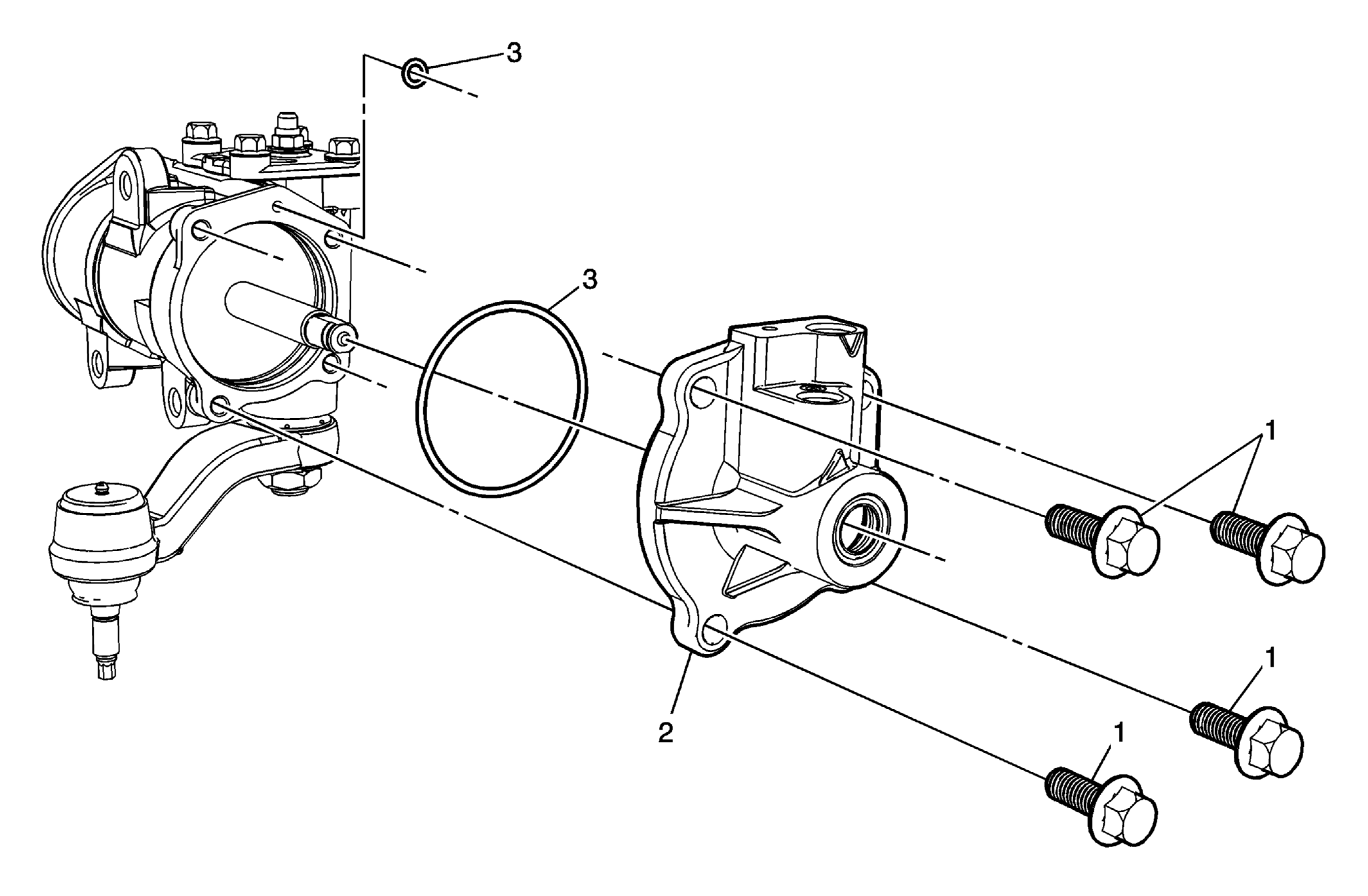

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the power steering gear. Refer to Steering Gear Replacement (Recirculating Ball Without LMM) , Steering Gear Replacement (HP2) , Steering Gear Replacement (Hydraulic Rack and Pinion) . |
|
| 1 | Stub Shaft Housing Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 62 N.m (46 lb ft) |
| 2 | Stub Shaft Housing |
| 3 | Stub Shaft Housing O-Ring (Qty: 2) TIP: Grease the stub shaft housing O-Rings with the special grease supplied in the service kit. |
