Removal Procedure

  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  2. Remove the air cleaner element. Refer to Air Cleaner Element Replacement .

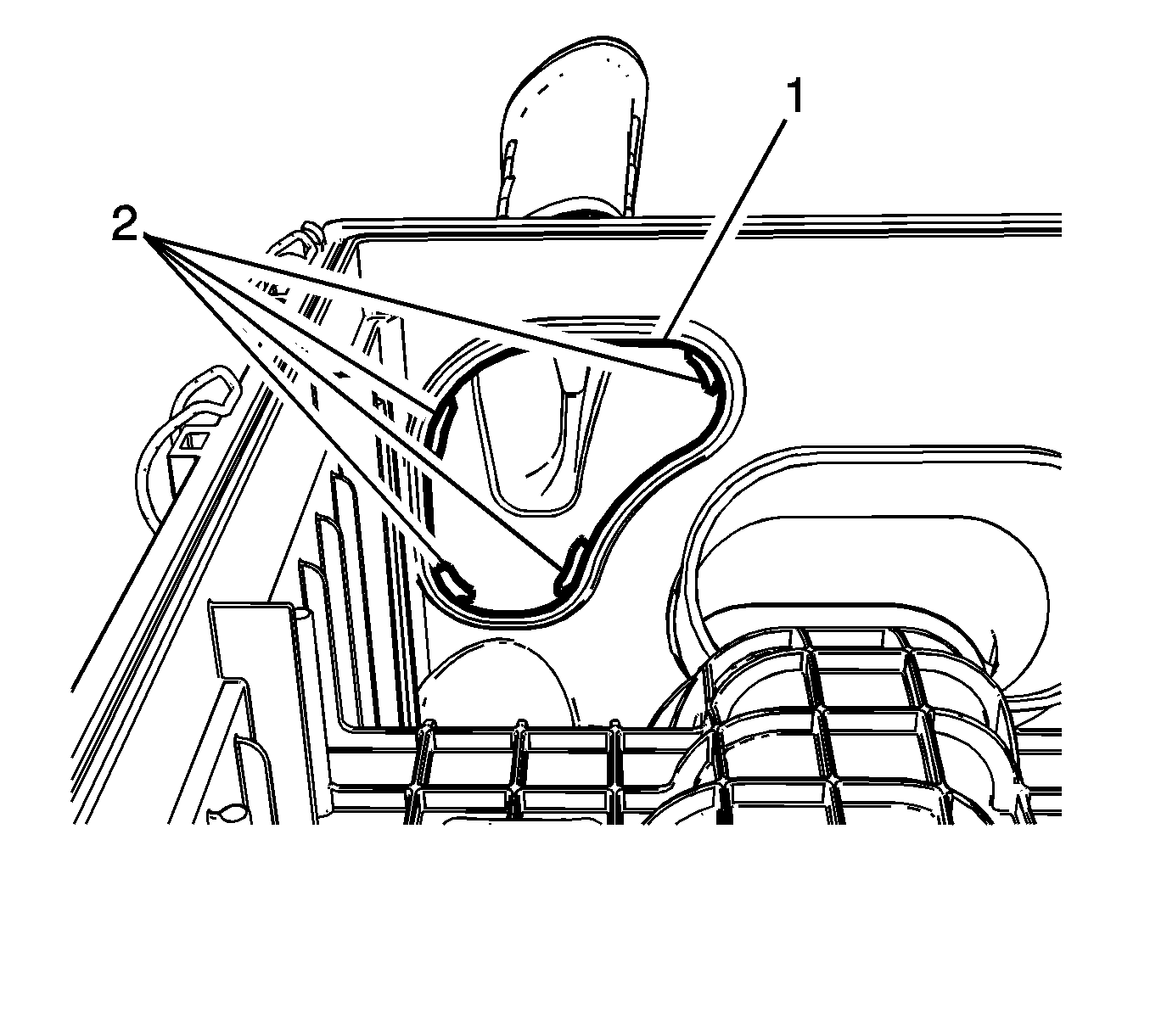

    3. Fig 1: Air Cleaner Inlet Duct Lockiing Tabs
    GM2717509Courtesy of GENERAL MOTORS COMPANY
  3. Remove the air cleaner inlet duct (1) from the locking tabs (2).

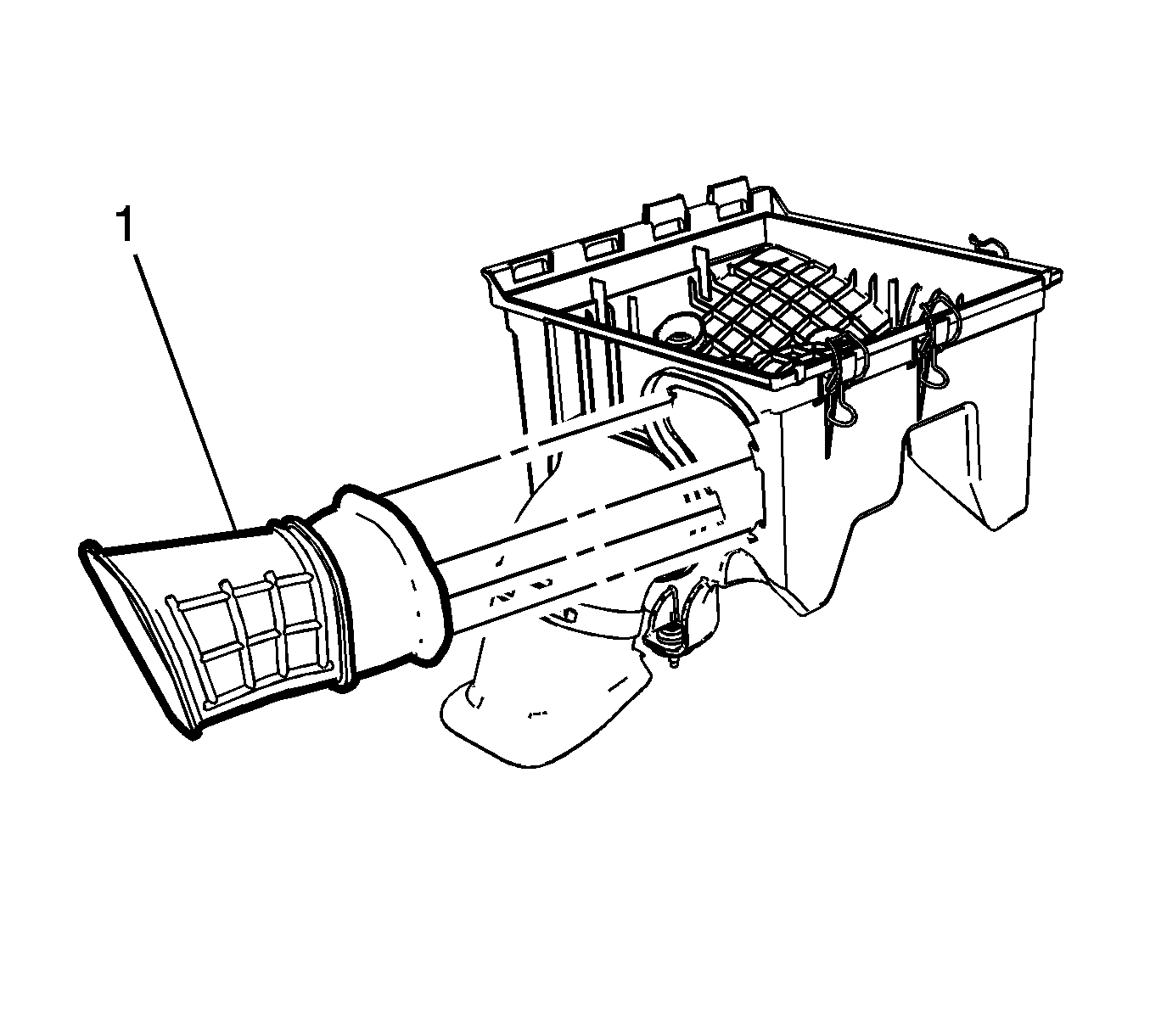

    4. Fig 2: Air Cleaner Inlet Duct
    GM2717510Courtesy of GENERAL MOTORS COMPANY
  4. Remove the air cleaner inlet duct (1) from the air cleaner assembly.
