Crankshaft Position Sensor Replacement (FWD)
Crankshaft Position Sensor Replacement (FWD)

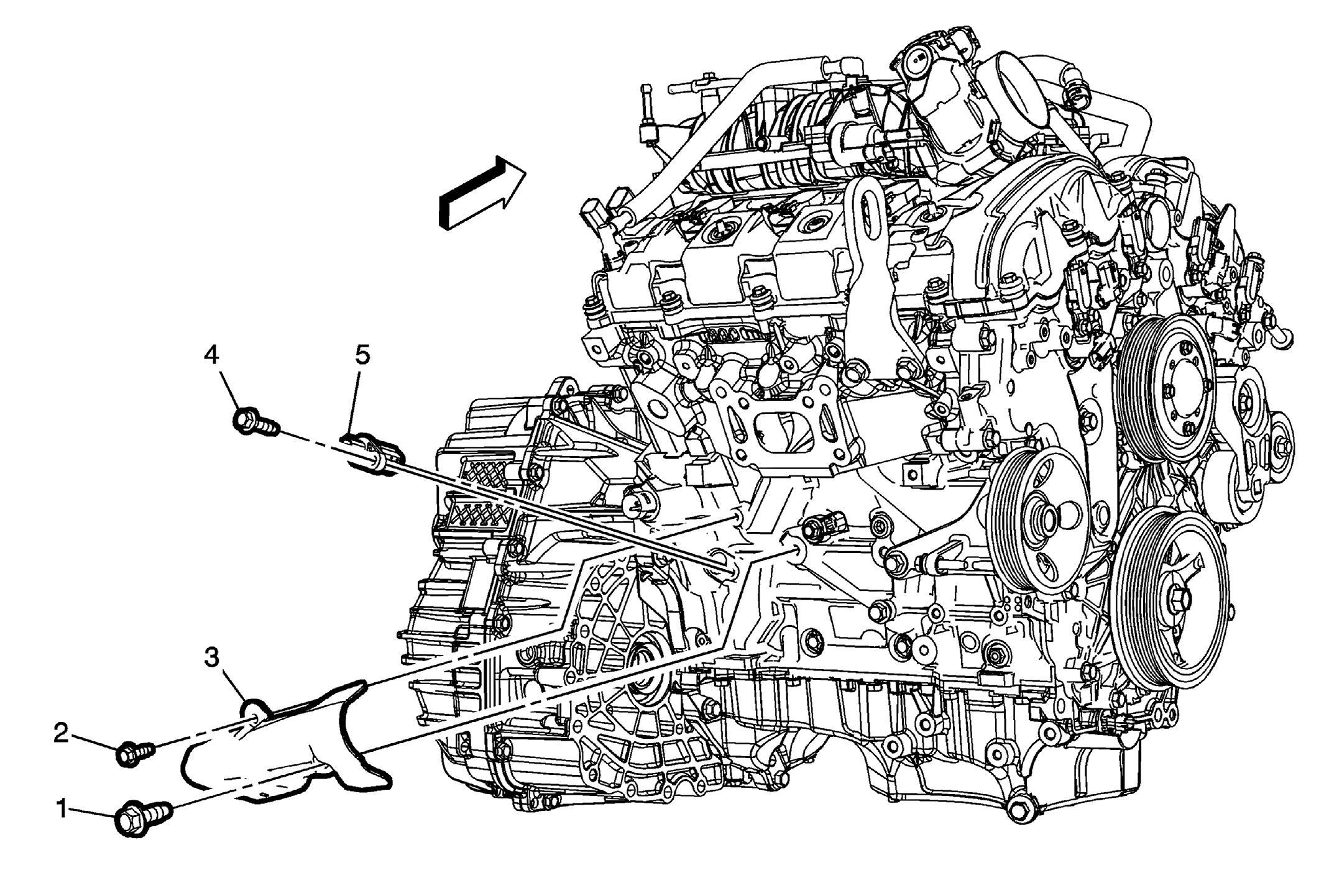

| Callout | Component Name |
|---|---|
| Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Knock Sensor Heat Shield Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Knock Sensor Heat Shield Bolt Tighten 58 N.m (42 lb ft) |
| 3 | Knock Sensor Heat Shield |
| 4 | Crankshaft Position Sensor Bolt Tighten 10 N.m (89 lb in) |
| 5 | Crankshaft Position Sensor Procedure Disconnect the electrical connector. |
