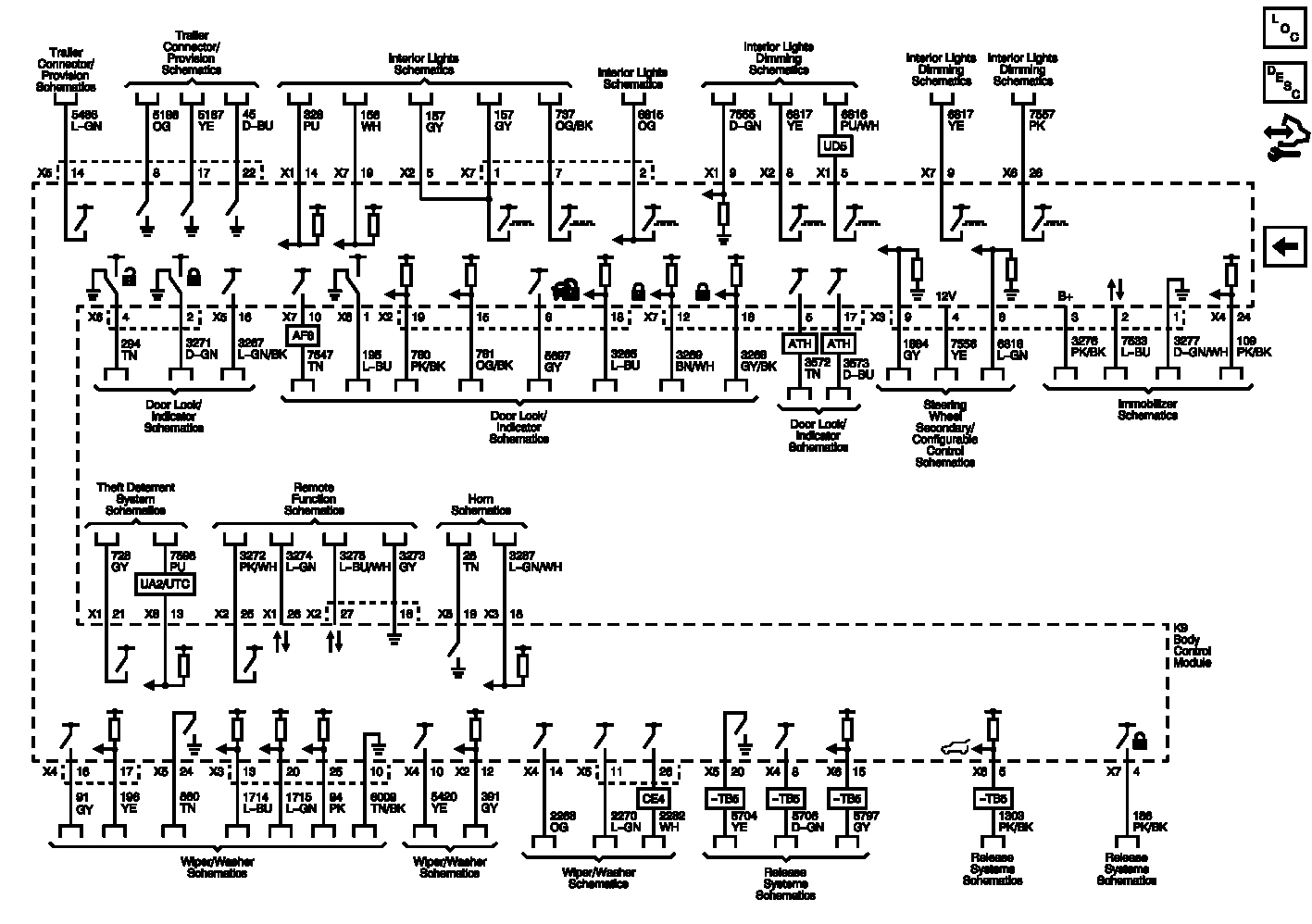

Home › Cadillac › 2012 › SRX AWD › Repair and Diagnosis › Engine Performance › System › Data Communications System › Schematic Wiring Diagrams › Body Control System Wiring Schematics › Subsystem References (3 of 3)
