Accessory Switch Replacement

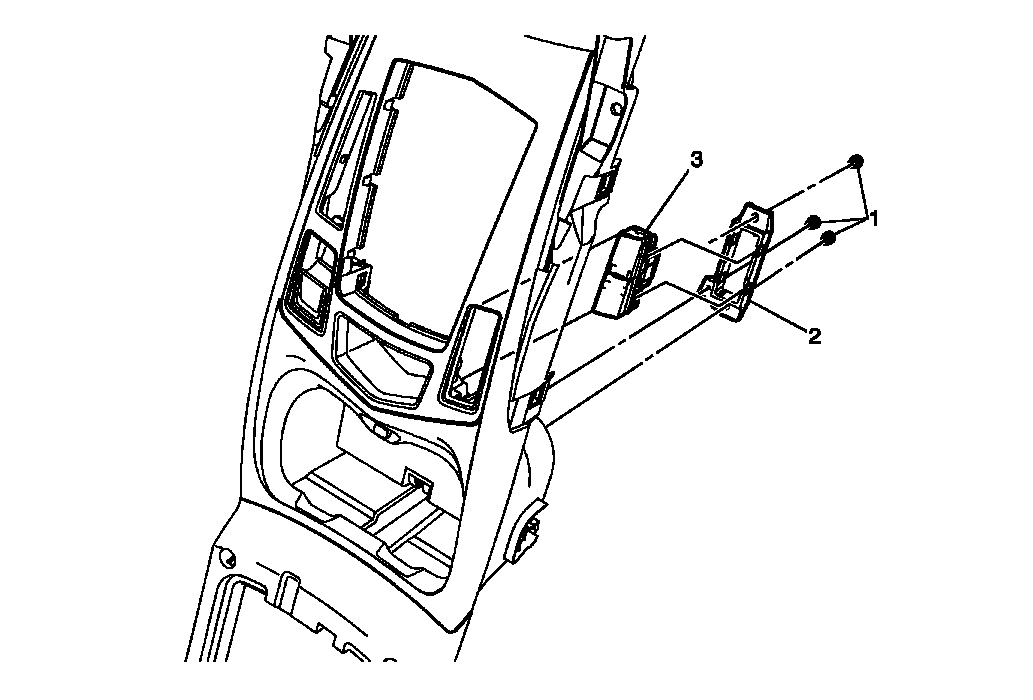

Fig 1: Identifying Accessory Switch, Bezel & Screws

Courtesy of GENERAL MOTORS COMPANY

Accessory Switch Replacement

Callout	Component Name
Preliminary Procedure  Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement
1	Accessory Switch Screws (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
2	Accessory Switch Bezel
3	Accessory Switch Disconnect electrical connector. Depressing four tabs, remove switch forward of bezel.
