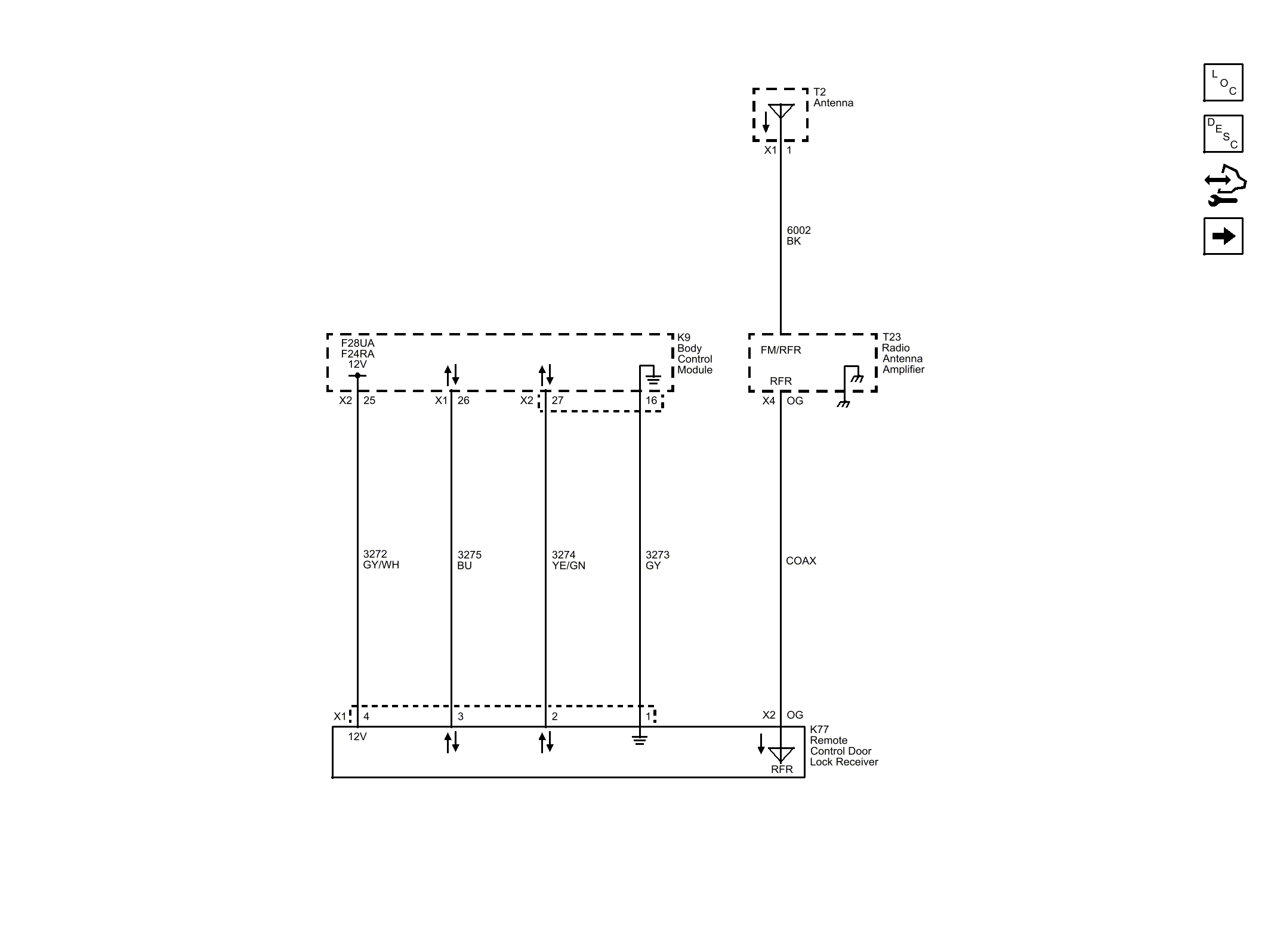

Home › Cadillac › 2013 › ATS 2.0L Eng VIN X, AWD › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
