Linear Interconnect Network (LIN) Bus

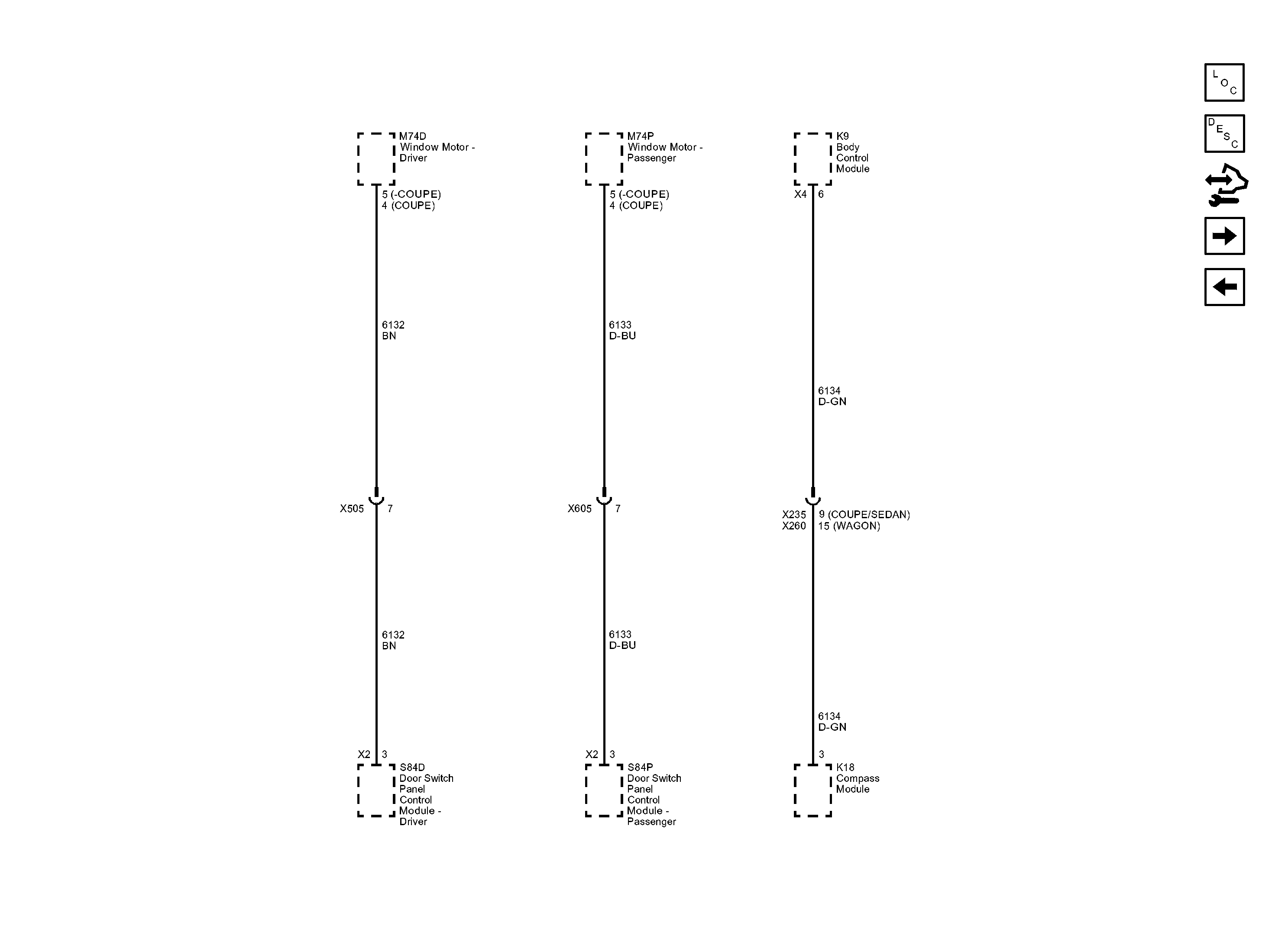

Fig 1: Linear Interconnect Network (LIN) Bus Wiring Schematic
GM2779093Courtesy of GENERAL MOTORS COMPANY
