Cadillac
›
2013
›
Escalade Base, AWD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Cellular System, Entertainment System, And Navigation System
›
Schematic Wiring Diagrams
›
OnStar Wiring Schematics
›
Module Power, Ground, and Serial Data
Module Power, Ground, and Serial Data

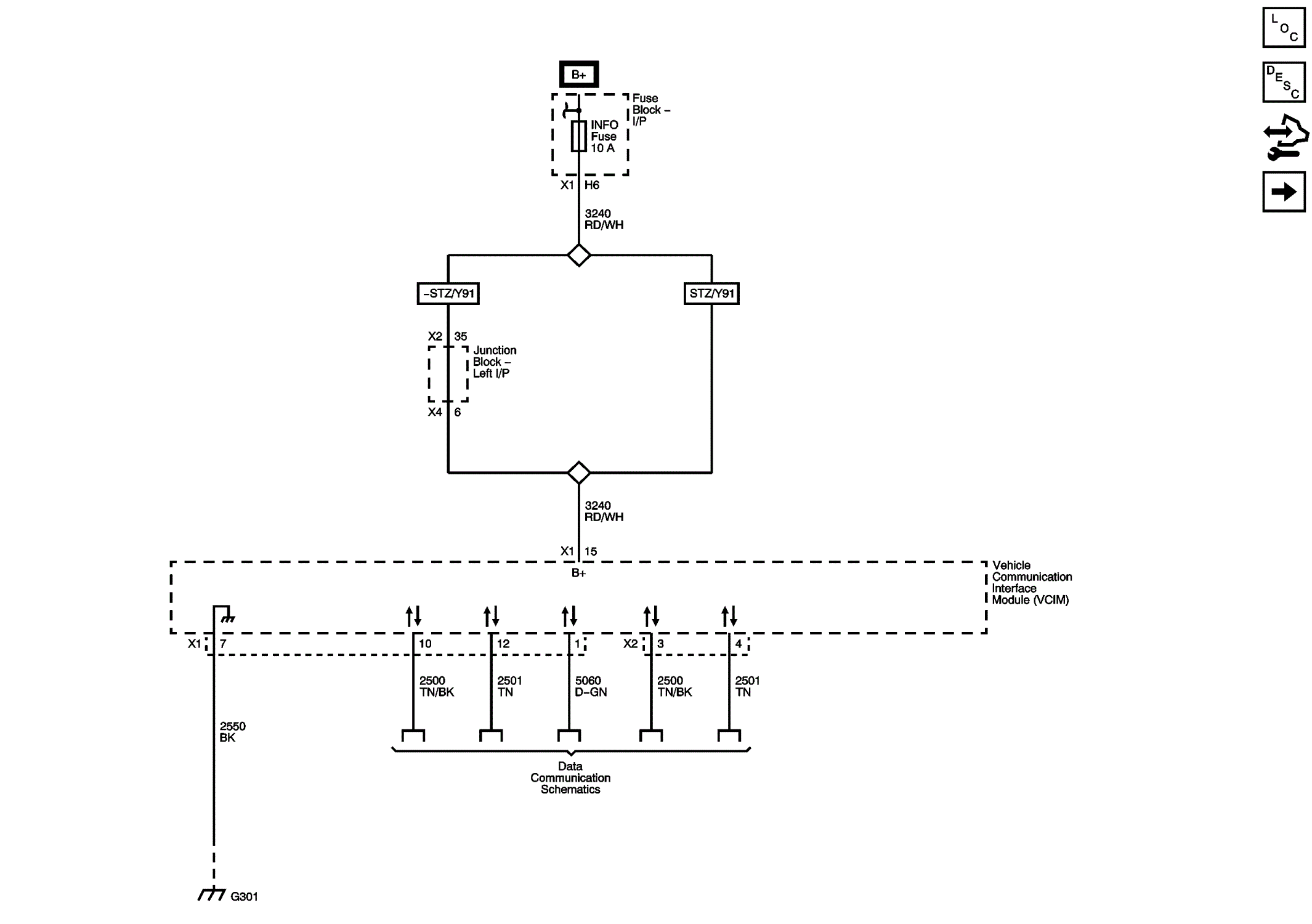

Fig 1: Module Power, Ground, and Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
