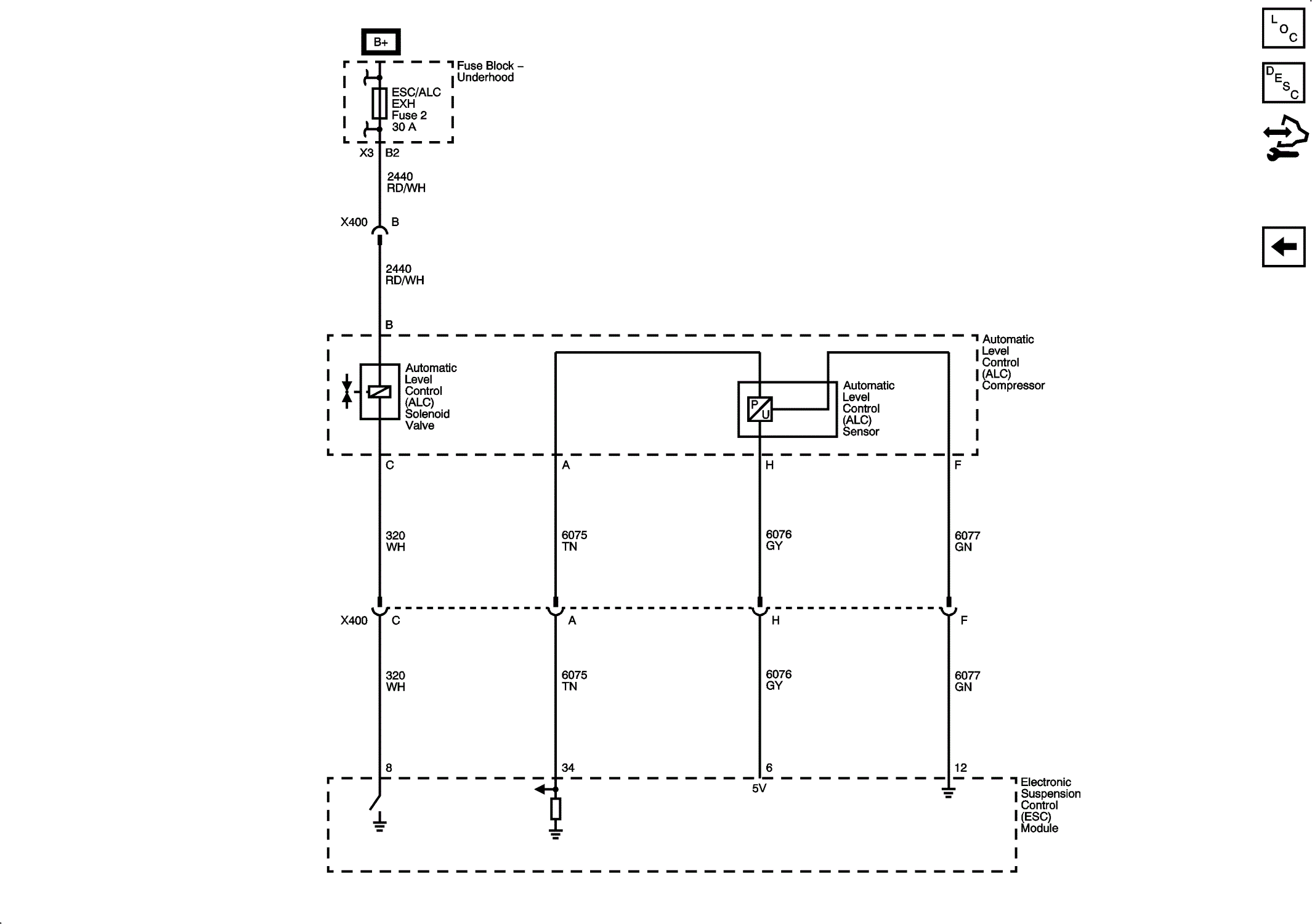

Home › Cadillac › 2013 › Escalade Base, RWD › Repair and Diagnosis › Suspension › Suspension Control Systems › Suspension Control System - Suspension Leveling › Schematic Wiring Diagrams › Automatic Level Control Wiring Schematics › Pressure Controls
