Remote Control Door Lock Receiver

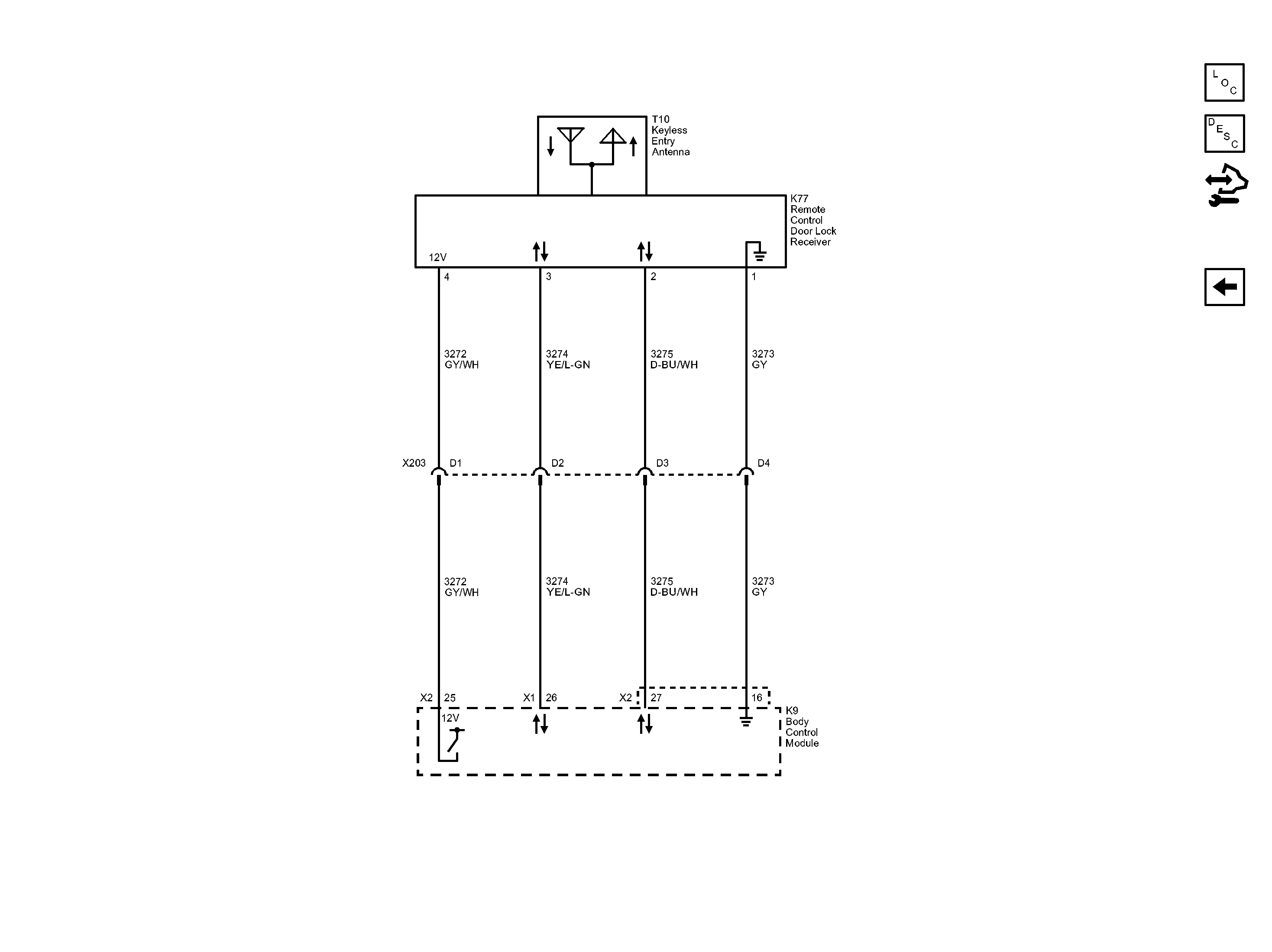

Fig 1: Remote Control Door Lock Receiver Wiring Schematic
GM2838132Courtesy of GENERAL MOTORS COMPANY
