Most 50 Bus
Most 50 Bus

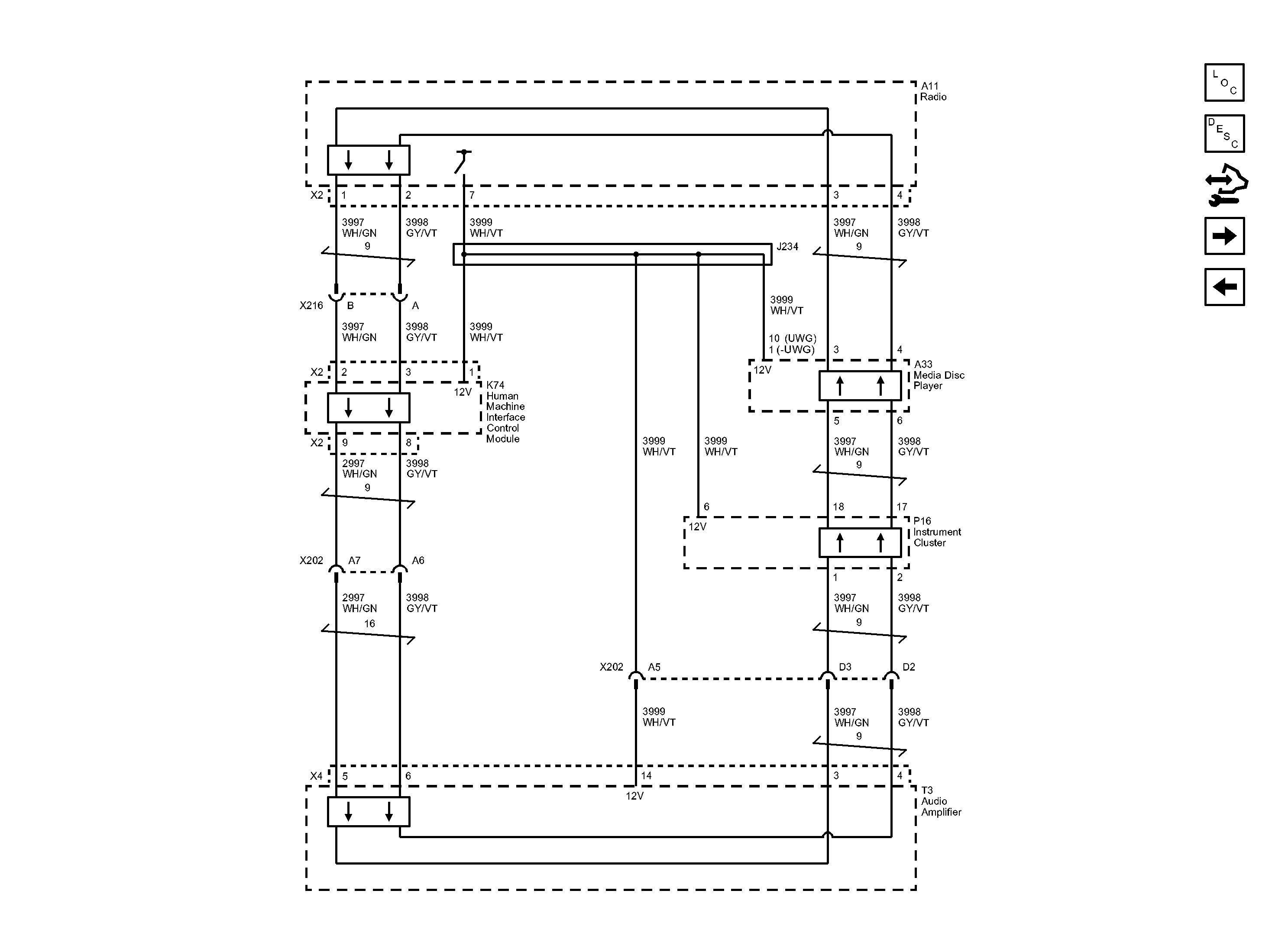

Fig 1: Most 50 Bus Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
