Cadillac
›
2013
›
SRX Base
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
Powertrain Expansion Bus
Powertrain Expansion Bus

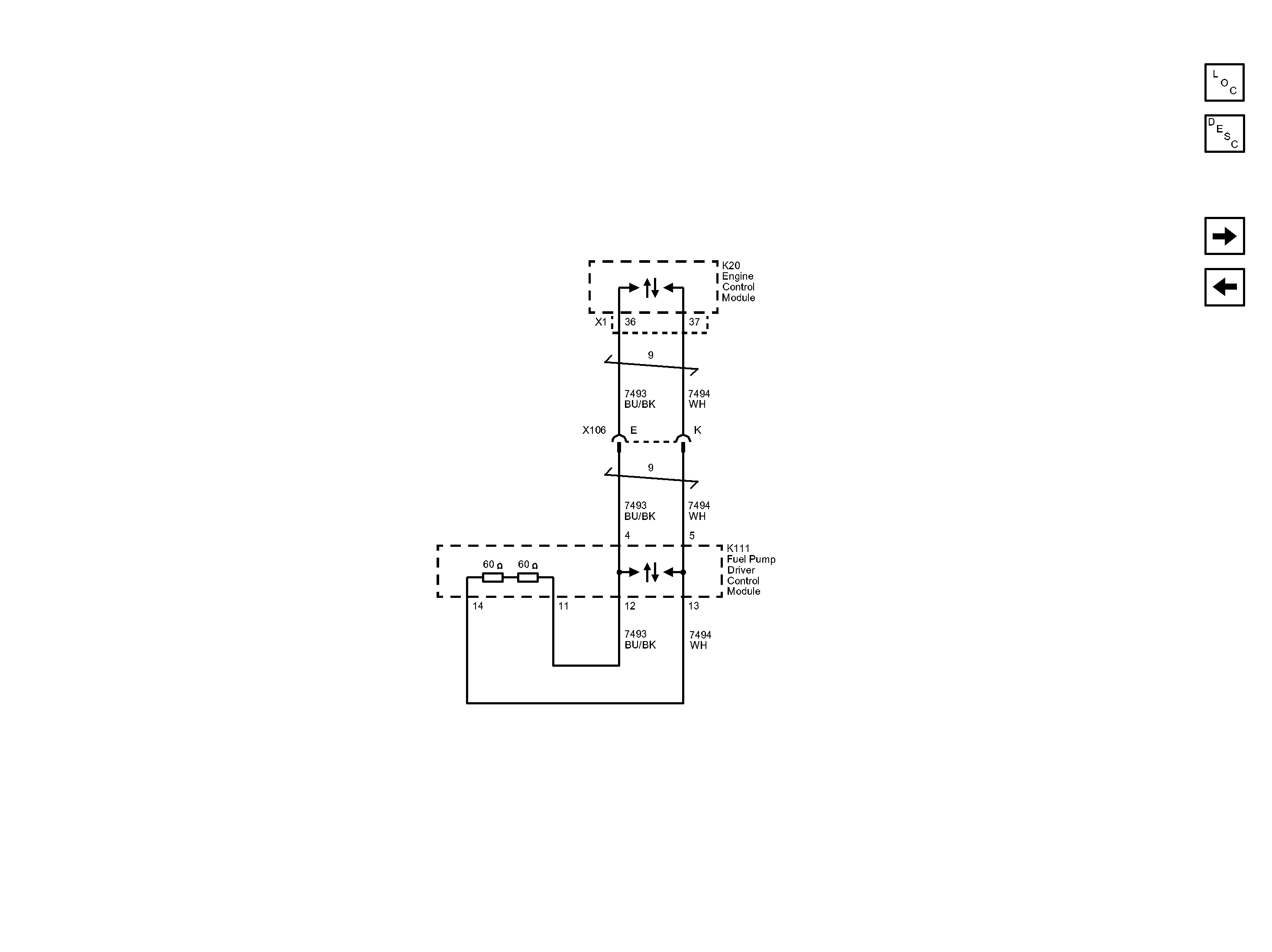

Fig 1: Powertrain Expansion Bus Wiring Schematic
