Strut, Strut Component, or Spring Replacement

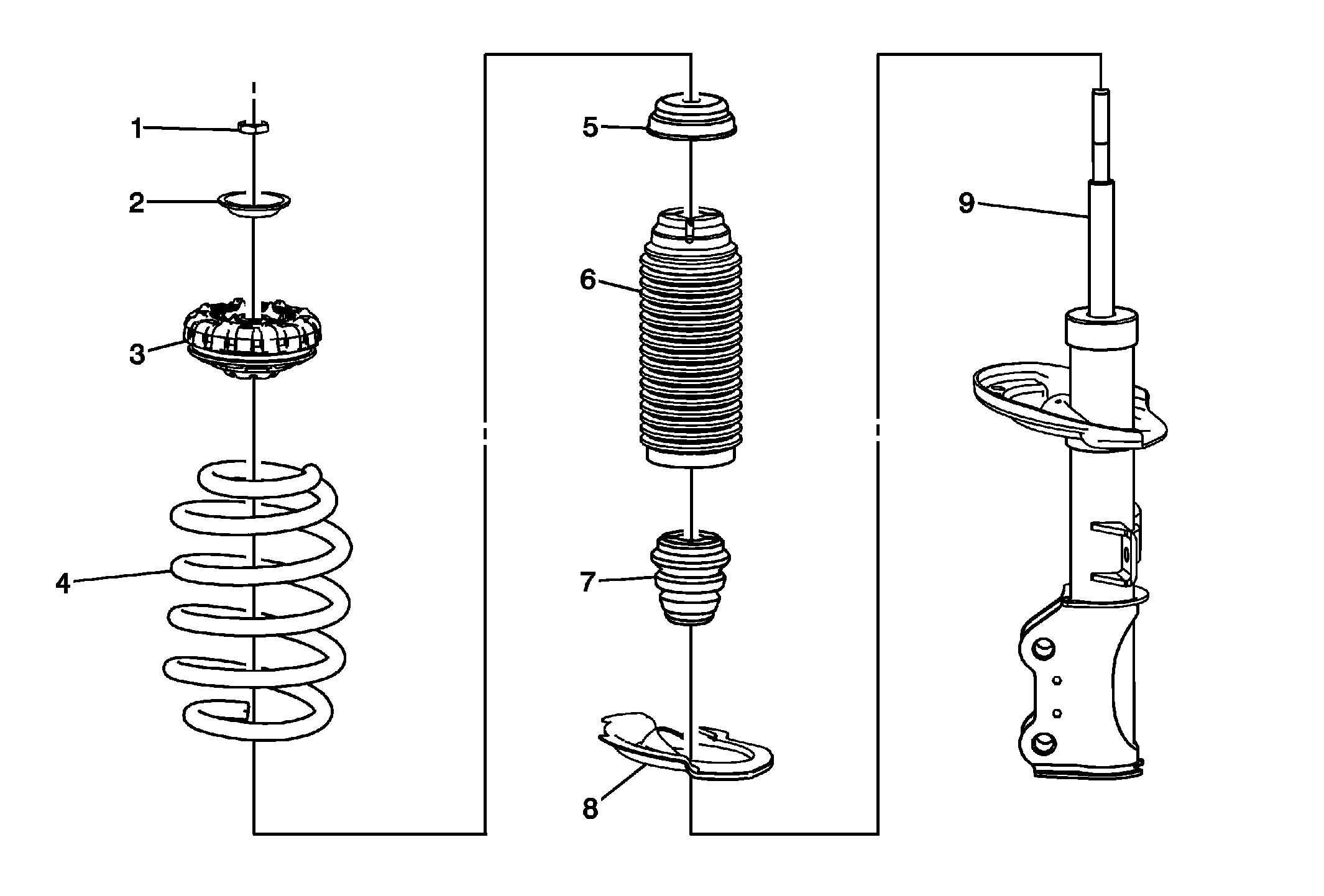

Fig 1: Suspension Strut, Strut Component, or Spring

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the strut assembly. Refer to Strut Assembly Removal and Installation .
1	Front Suspension Strut Nut CAUTION: Refer to Fastener Caution . Procedure Using the CH 48845 compressor , compress the front strut assembly. NOTE: When disassembling the front strut assembly, note the orientation of all the components to ensure that they are installed in the proper position. Tighten 70 (52 lb ft) Special Tools CH 48845 Spring Compressor For equivalent regional tools, refer to Special Tools .
2	Front Suspension Strut Mount Washer
3	Front Suspension Strut Mount NOTE: Note the position of the keyway in the front strut suspension strut mount.
4	Front Spring
5	Front Suspension Strut Bumper Retainer
6	Front Suspension Shield
7	Front Suspension Strut Bumper
8	Front Spring Lower Insulator
