Air Cleaner Element Replacement
Air Cleaner Element Replacement

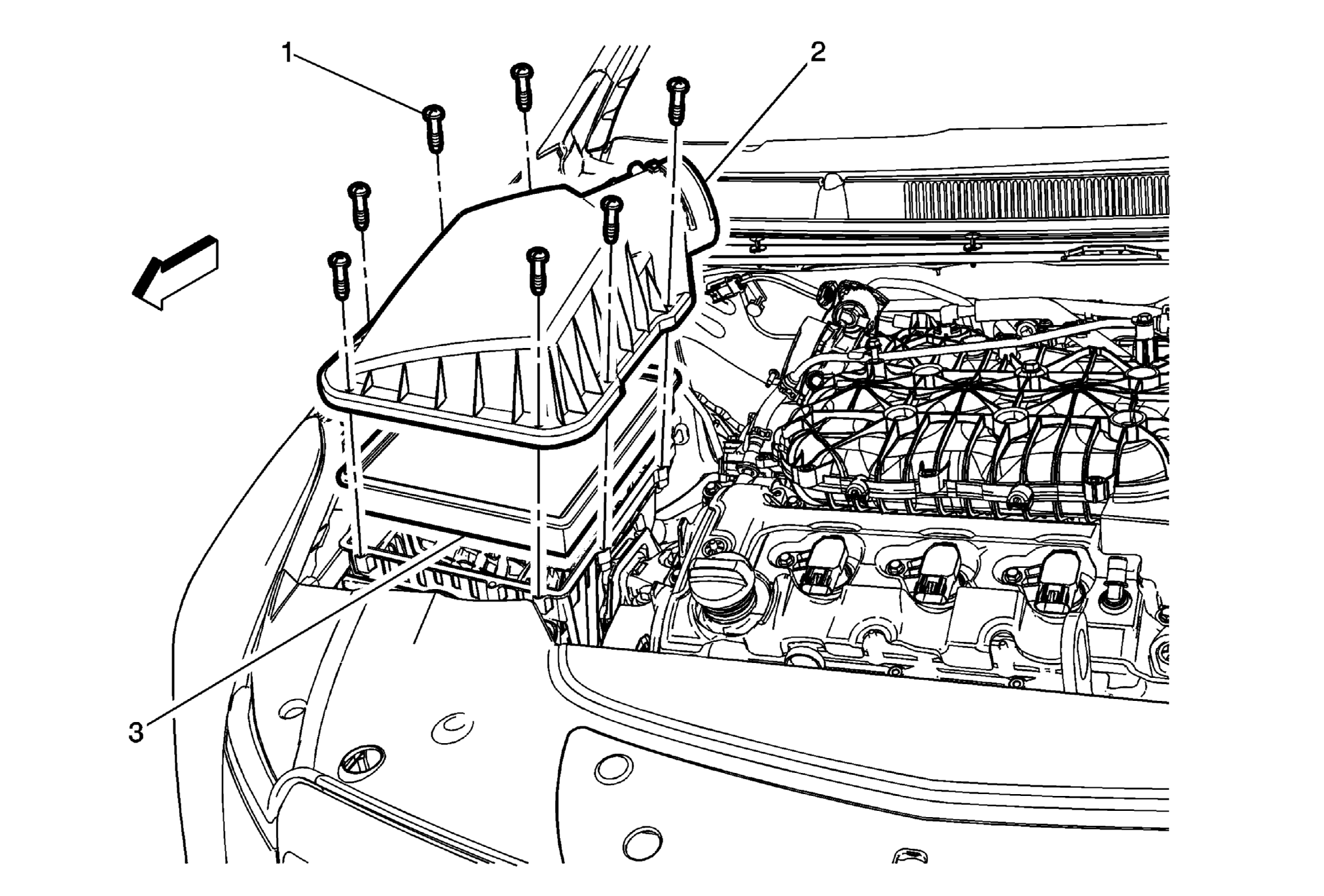

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . |
|
| 1 | Air Cleaner Assembly Fasteners (Qty: 7)
CAUTION:
Refer to Fastener Caution . |
| 2 | Air Cleaner Upper Cover Procedure Disconnect the electrical connector. |
| 3 | Air Cleaner Element |
