Flexible Fuel Sensor Replacement (AWD)

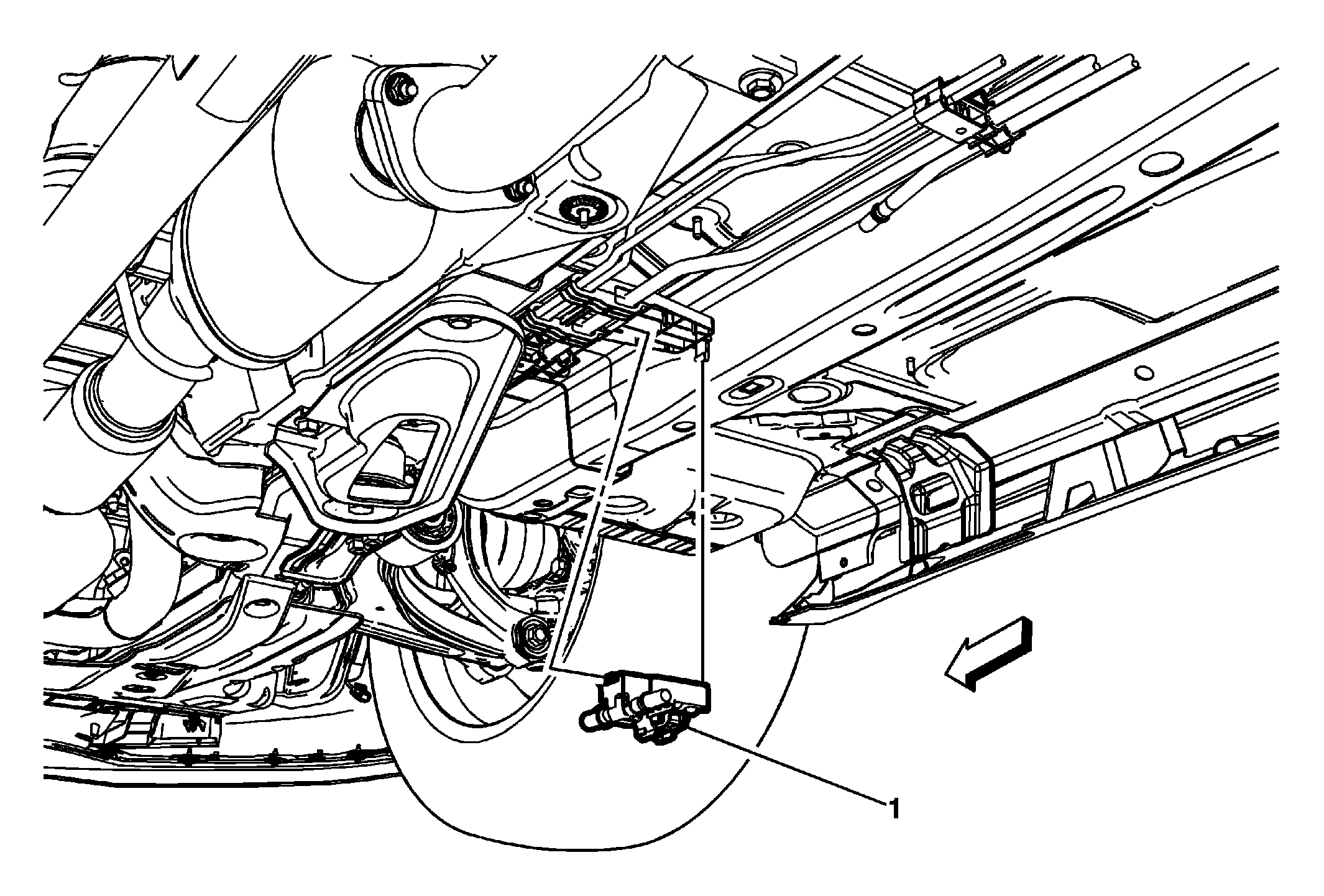

Fig 1: Flexible Fuel Sensor (AWD)
GM2756277Courtesy of GENERAL MOTORS COMPANY
Flexible Fuel Sensor Replacement (AWD)

Callout Component Name

Preliminary Procedures

  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the underbody shield.
  4. Remove the fuel feed hoses from the sensor. Refer to Fuel Feed Hose Replacement (Flex Sensor to Front Pipe FWD) , Fuel Feed Hose Replacement (Flex Sensor to Front Pipe AWD) , Fuel Feed Hose Replacement (Flex Sensor to Rear Pipe FWD) , Fuel Feed Hose Replacement (Flex Sensor to Rear Pipe AWD) .
1 Flex Fuel Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Unclip sensor from bracket to remove.
