Power, Ground and Data Communication

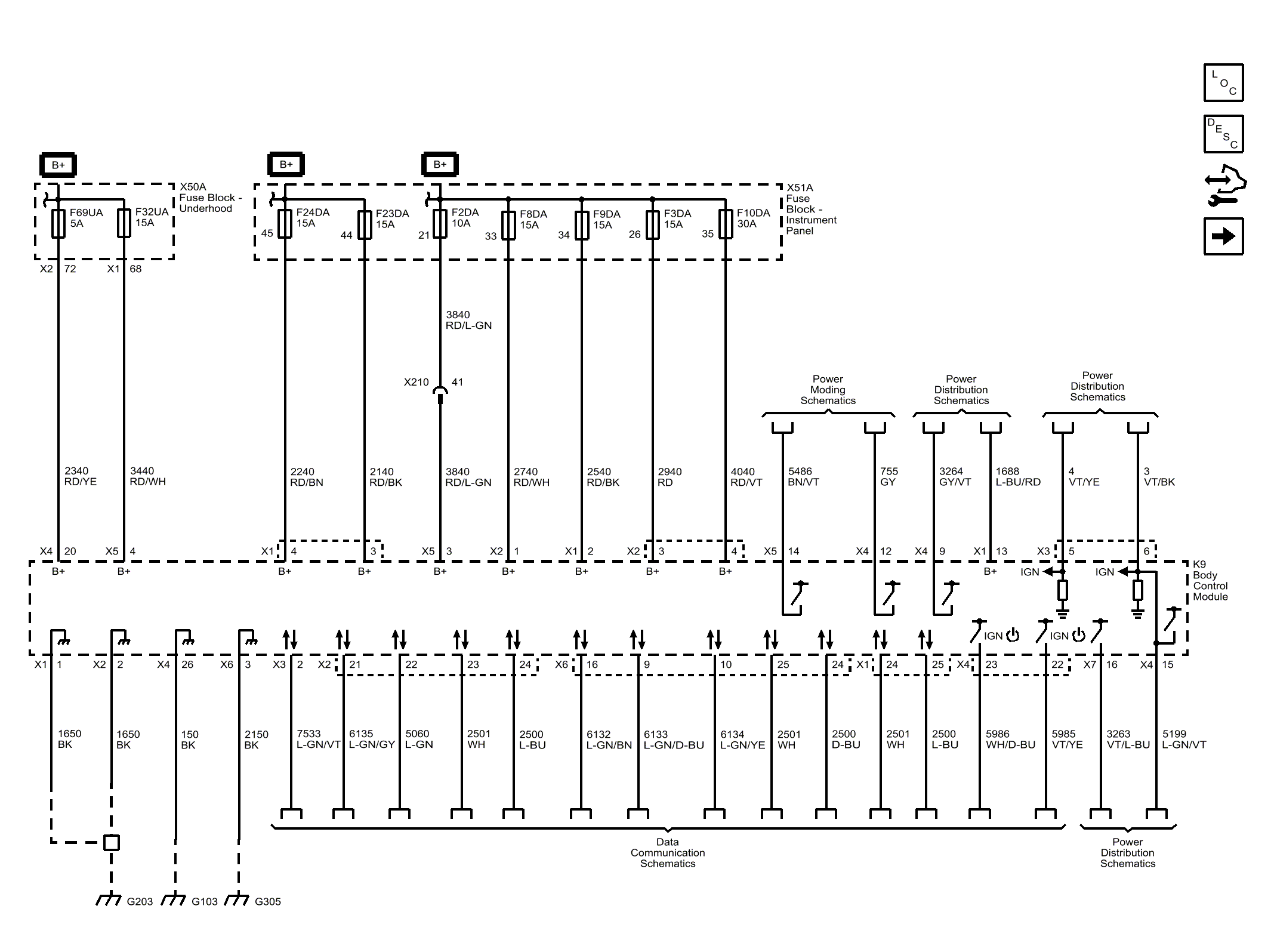

Fig 1: Power, Ground and Data Communication Wiring Schematic
GM2770595Courtesy of GENERAL MOTORS COMPANY
