Body Control System Wiring Schematics
›
Subsystem References (1 of 3)
Subsystem References (1 of 3)

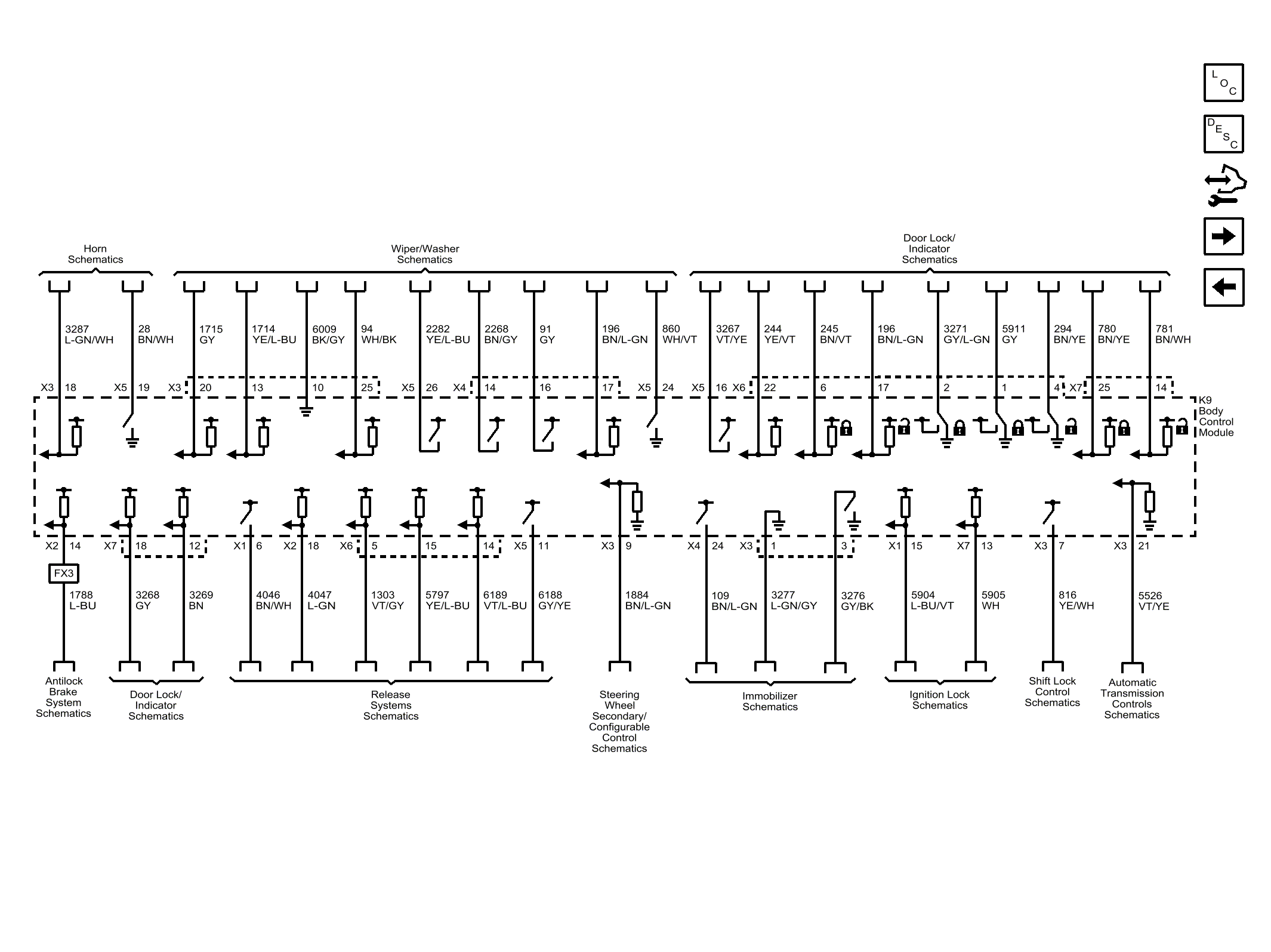

Fig 1: Subsystem References Wiring Schematic (1 of 3)
Courtesy of GENERAL MOTORS COMPANY
