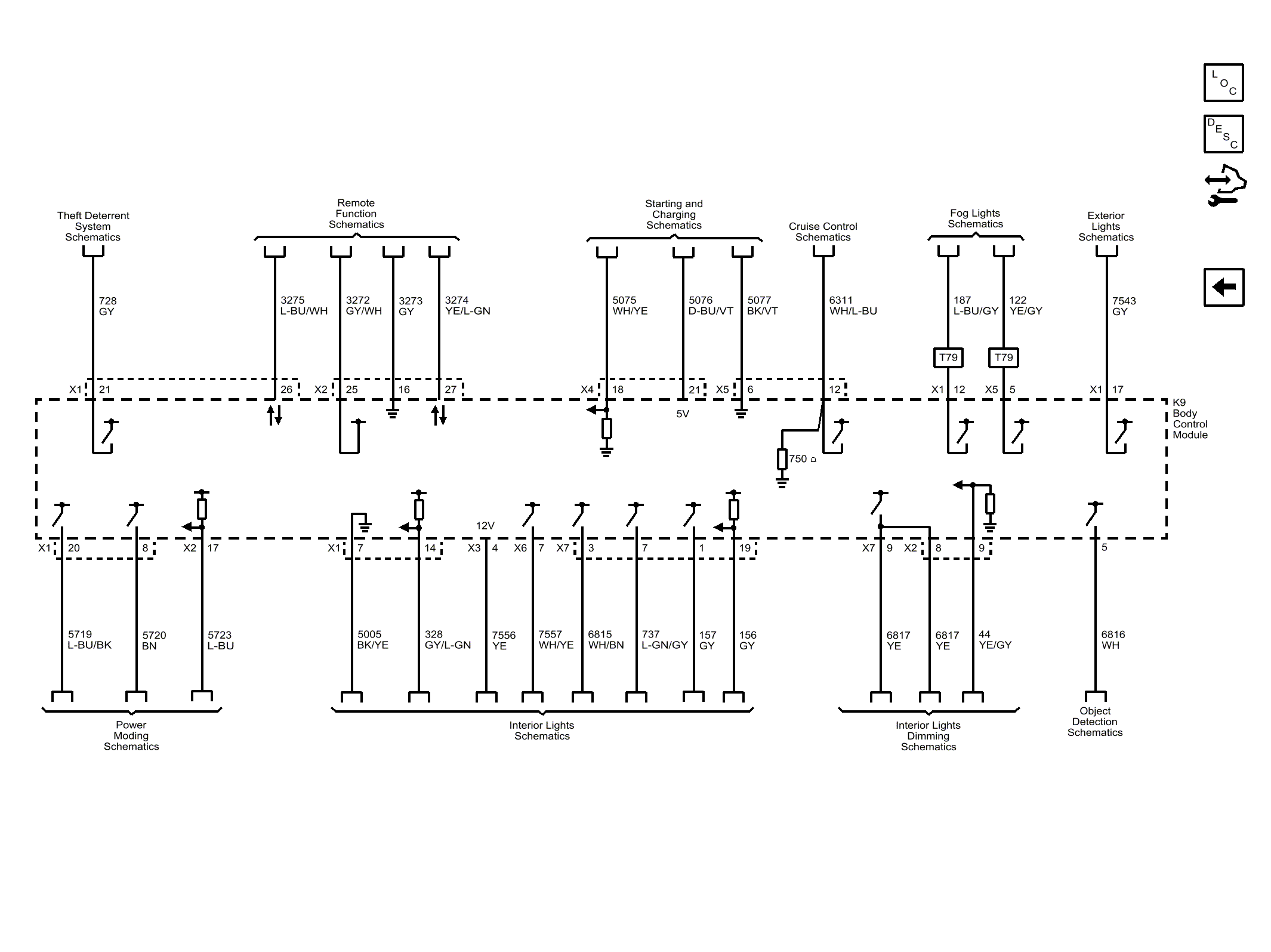

Home › Cadillac › 2013 › XTS AWD › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Body Control System Wiring Schematics › Subsystem References (3 of 3)
