Communication Enable (2 of 2)

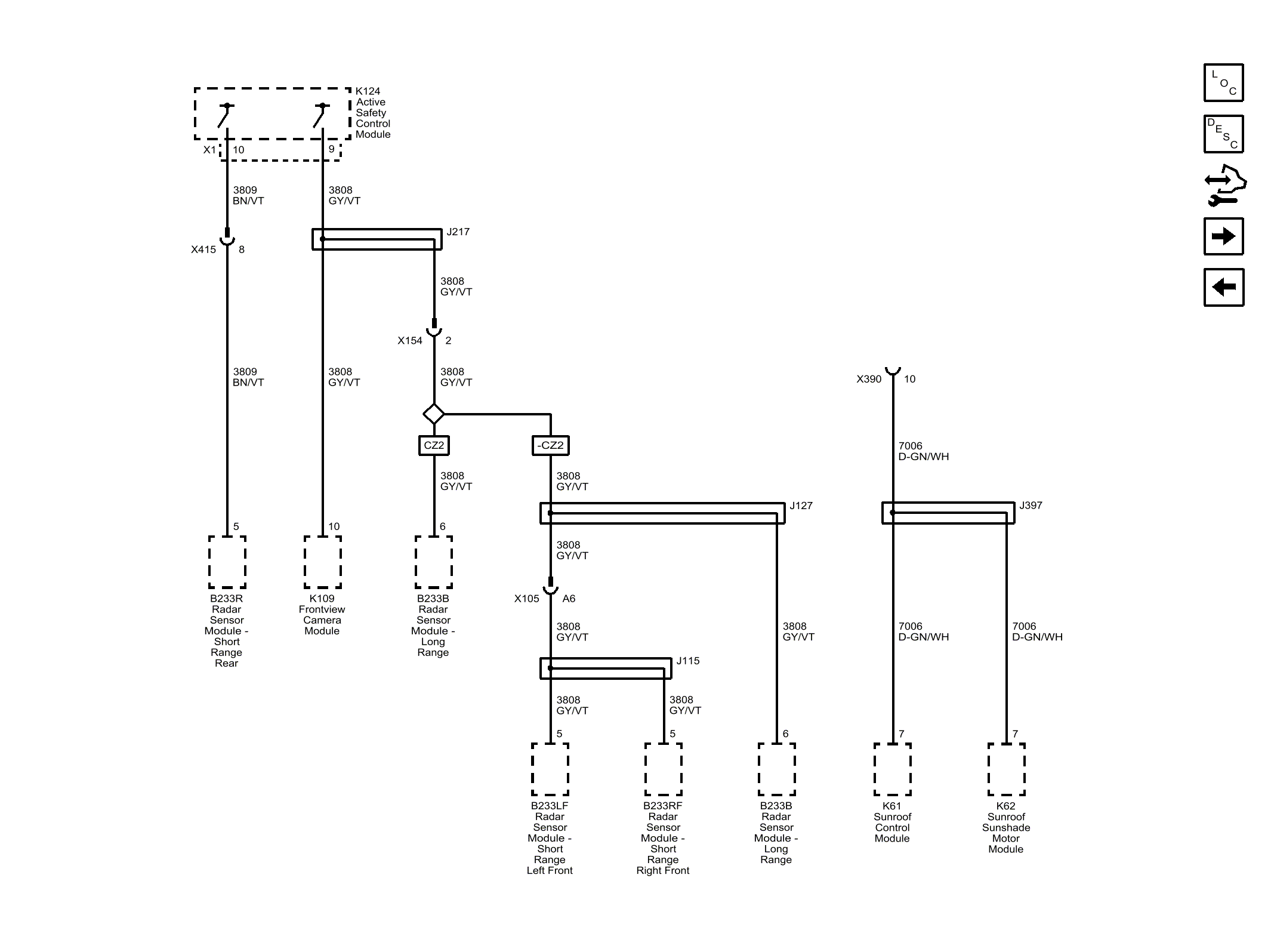

Fig 1: Communication Enable Wiring Schematic (2 of 2)
GM2816106Courtesy of GENERAL MOTORS COMPANY
