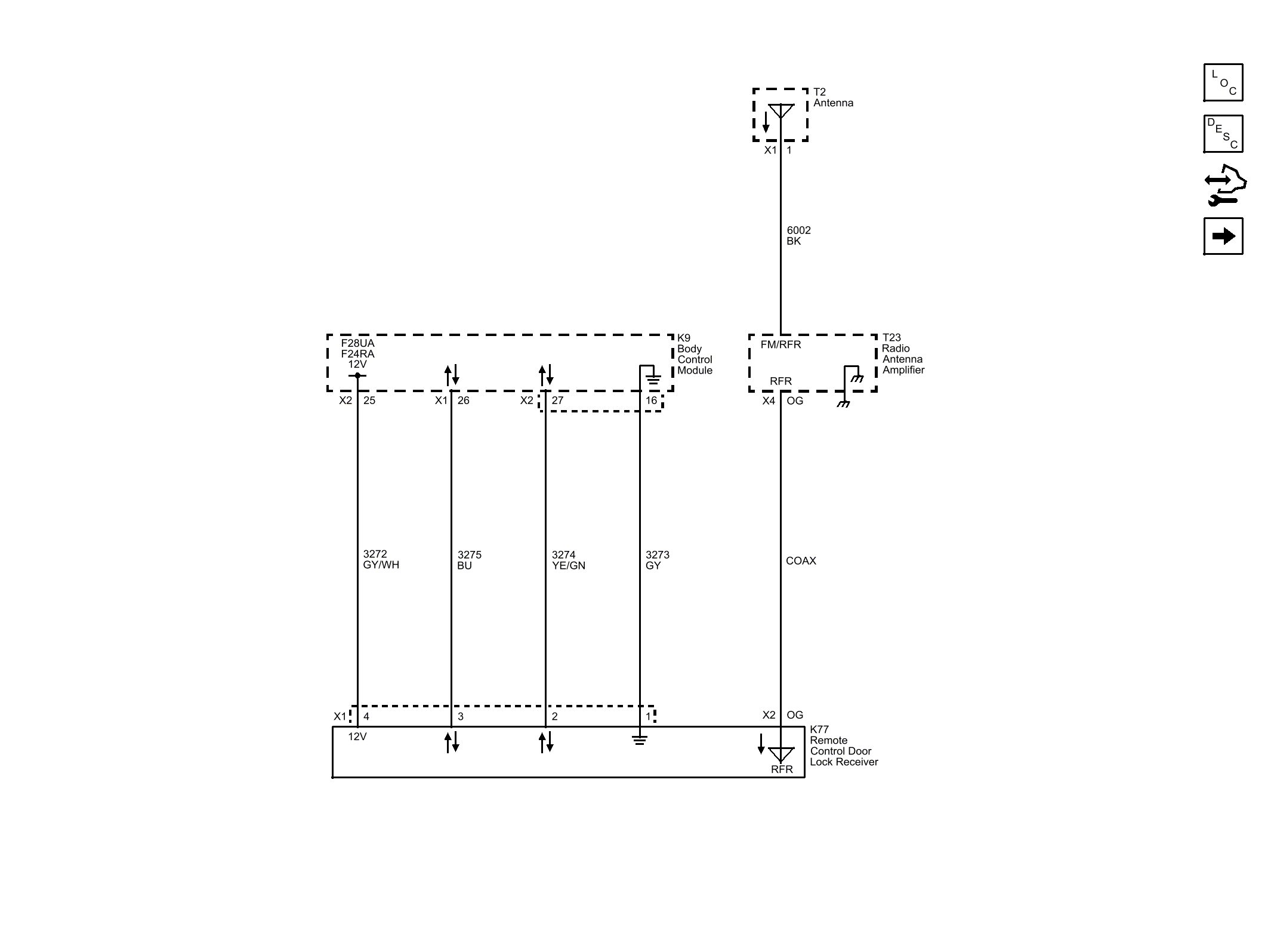

Home › Cadillac › 2014 › ATS Base, 2.0L Eng VIN X, RWD, Automatic Trans › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
