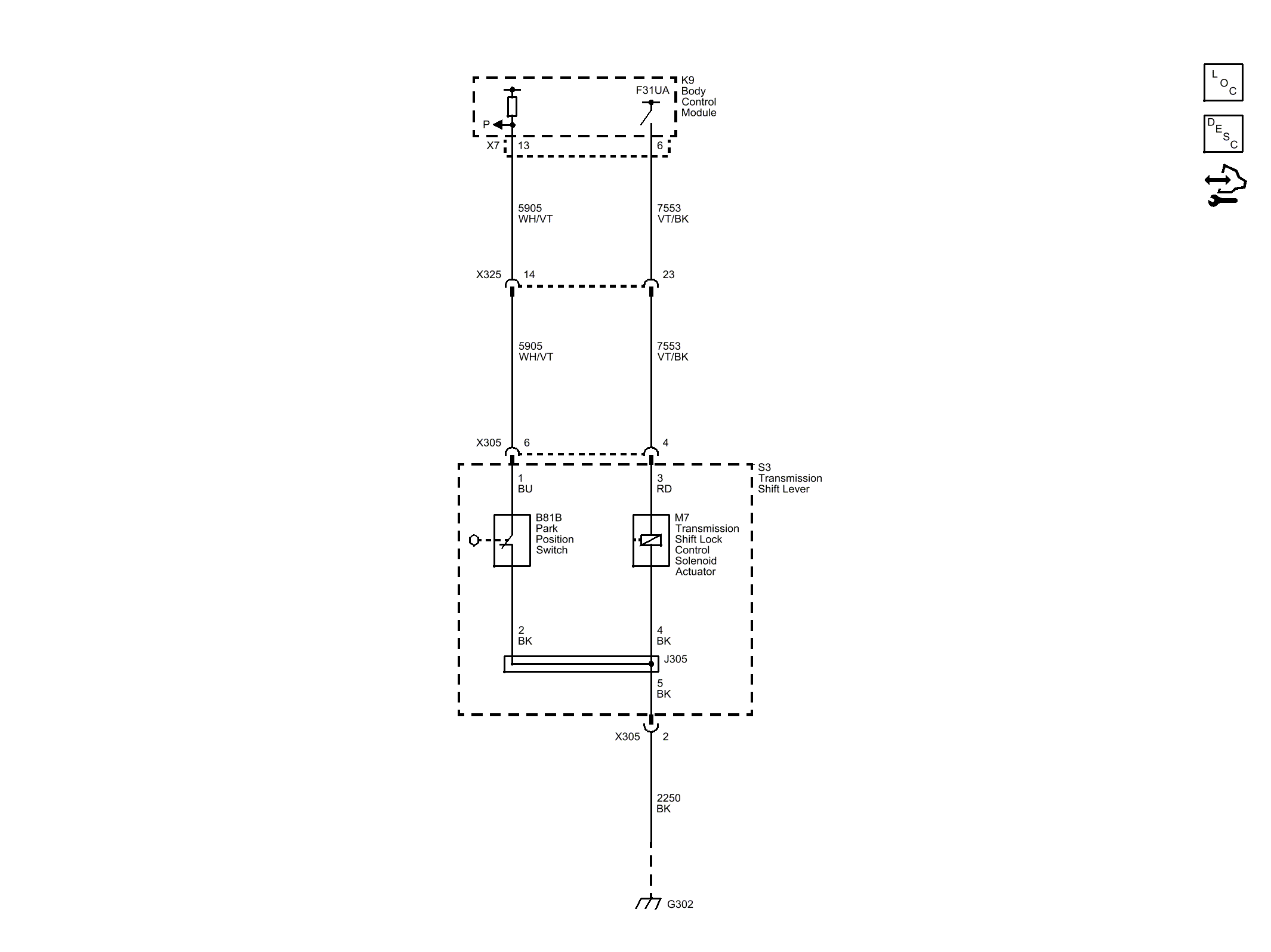

Home › Cadillac › 2014 › CTS Vsport › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System - Sedan › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control System
