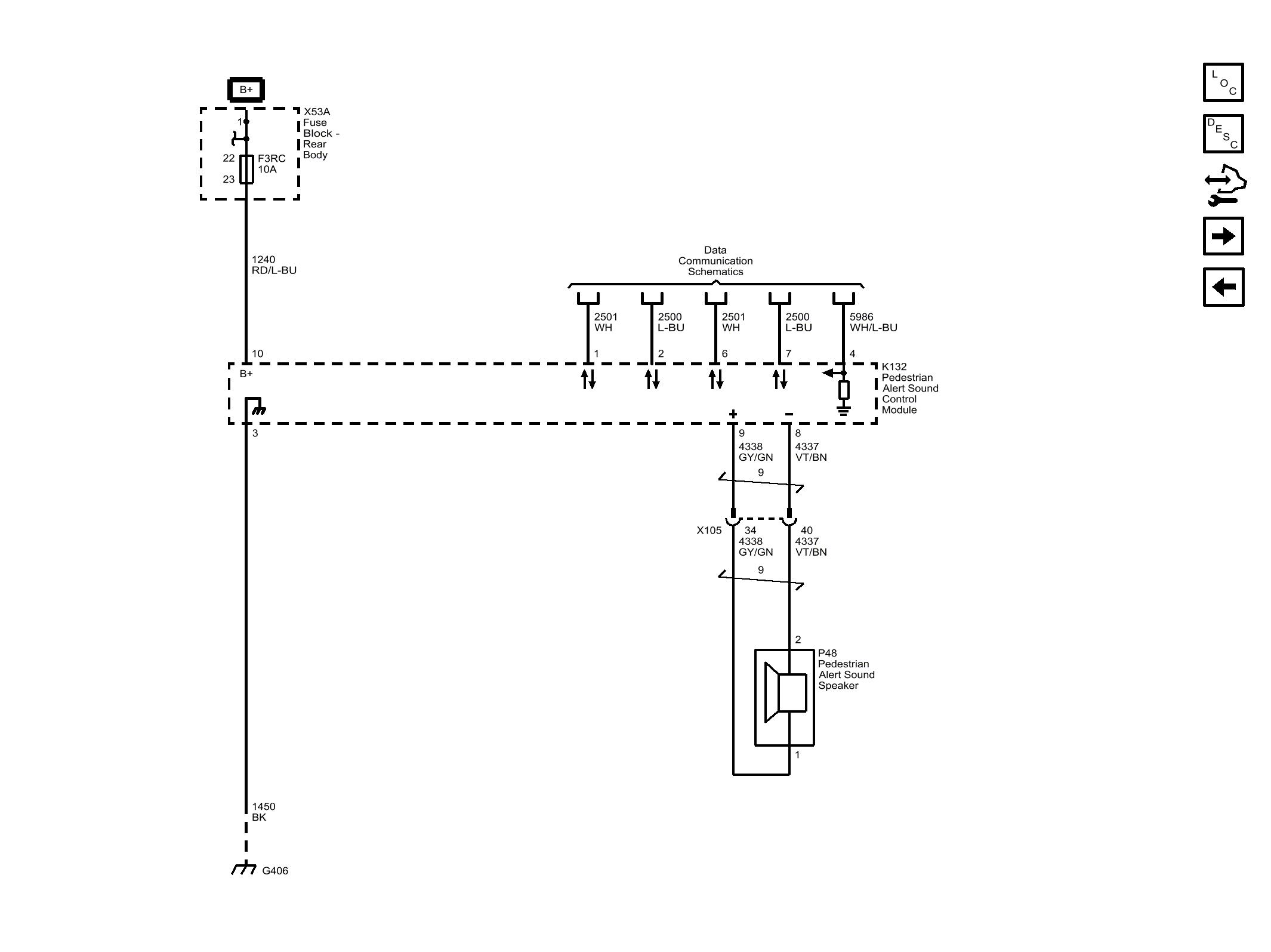

Home › Cadillac › 2014 › ELR › Repair and Diagnosis (Single Page) › Accessories & Equipment › Collision/Avoidance › Object Detection System And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Pedestrian Protection System
